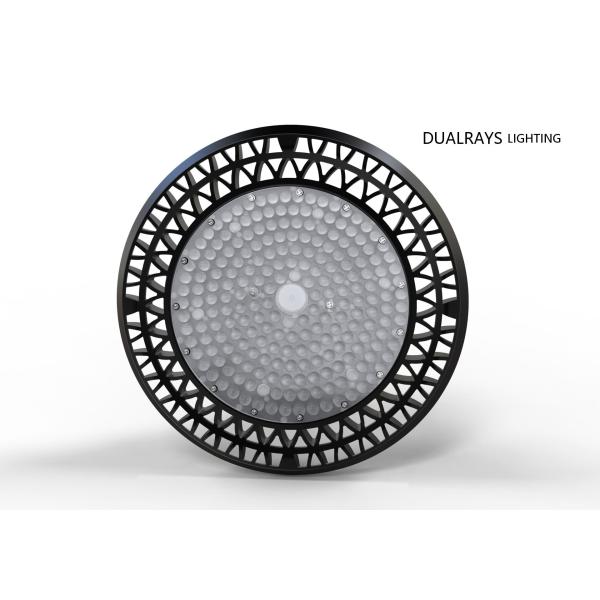

UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-HB100-EG1
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
2PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000PCS/Month
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Power :
100W,150W,200W,240W,300W
LED light source :
SMD3030
CIR :
>80Ra
Material :
Die-cast aluminum
CCT :
3000K,4000K,5000K,5700K
PF :
>0.95
Description
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor

UFO LED High Production Advantage:

* D-Mark tested for the use in paper production,wood processing etc with toughened glass;

* Multiple installations: loop hanging, ceiling mounting, wall mounting,pipe mounting;

* LUMILEDS LUXEON High Brightness SMD3030 LEDs,SOSEN/Meanwell Driver;
* 60°/90°(with lens)/120°(without lens) beam angle optional;
* Customized supported for special projects;
* IP65 Protection;
* IK08 Protection;
LEDs Light Source SMD3030
CCT/K 3000K/4000K/5000K/5700K/6500K
SCDM <5
CRI(Ra) >80Ra(>70Ra for option)
Input Wattage AC 100~277V 50/60Hz
IP Rating IP65
System Efficiency/LPW 140LPW
IK Rating IK10
Lifespan Time >50000hours
Operation Temp℃ -40℃~60℃
Sensor (Optional) Daylights Sensor,Pluggable Motion Sensor
Systems Wattage 100W

UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion SensorUFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor

UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor

> Shipyards;

> Mines;

> Workshops;

> Warehouse;

> Highway toll stations;

> Gas stations;

> Supermarkets;

> Exhibition center;

UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
Character/Power
100W
150W
200W
240W
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
A
Ø350mm
Ø350mm
Ø420mm
Ø420mm
B
210mm
210mm
220mm
220mm
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion SensorUFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor

UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor

UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor

UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor

UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor

UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor

UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor

UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
1.What’s the meaning of “Beam Angle “?
RE: The spread of light from a luminaire. For example: a fitting such as a low bay ,which is closer to the floor,will have a wider beam angle to illuminate a given floor area while a high bay fitting will have a narrower beam.
2.How do we explain “CRI” ?
RE: A measure of the degree of colour shift objects undergo when illuminated by the light source as compared with those same objects when illuminated by a reference source of comparable colour temperature. The reference source has a CRI of 100.
3.What’s CCT(colour temperature) ?
RE: The description used to describe the effect of heating an object until it grows incandescently. The emitted radiation, and apparent colour, changes proportional to the temperature; easily envisioned radiation, and apparent colour, changes proportional to the temperature; easily envisioned ,when considering hot meal in a forge that glows red, then orange, and then white as the temperature increases.
4.Do you know “dali “?
RE: Digital addressable lighting interface (DALI) is a trademark for network-based systems that control lighting in building automation.
5.What’s the fire rating categories ?
RE: VO-Burning stops within 10 seconds on vertical specimen; drips of particles allowed as long as they are not inflamed.
HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.
TP(b)-Slow burning rate <50mm / min for thickness <3mm.
TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is removed.

UFO LED High Bay Light CE CB SAA TUV GS Support Pluggable Motion Sensor
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
