Specifications
Brand Name :
DUALRAYS
Model Number :
DR-TP020-EG2XX
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
2PCS
Price :
Please inquire for the latest price
Payment Terms :
L/C, T/T, Western Union,paypal
Supply Ability :
100000PCS/Month
Delivery Time :
5-15 business days
Packaging Details :
Netural Package/OEM and ODM Package Available
Input Voltage :
AC100~277V 50/60Hz
SDCM :
<6
Power factor :
0.98
Driver :
BOKE
LED Source :
SMD 2835
CCT :
WW:3000±200K NW:4000±200K DW:5000±200K CW:5700±200K
Life Span :
>50000 hours
Guarantee :
5 years
Switching cycles :
>100,000 times
Plug :
European/Asian standard optional
Package :
Normal export carton box
Installation methods :
Suspended/Surface Mounted/Adjustable Installation For Option
Description

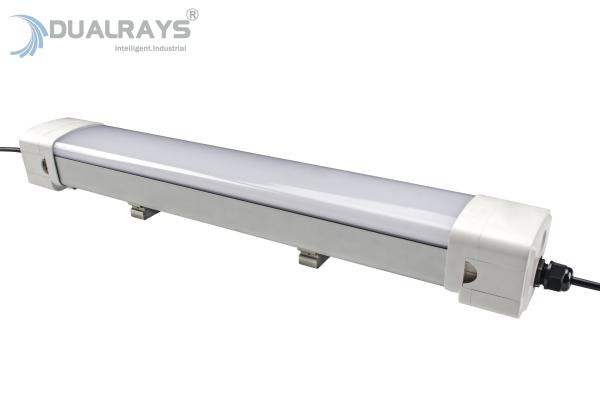

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;
> 1-10V dimming flicker-free driver,DIP Switch Power Adjustment available,CCT adjustable available;

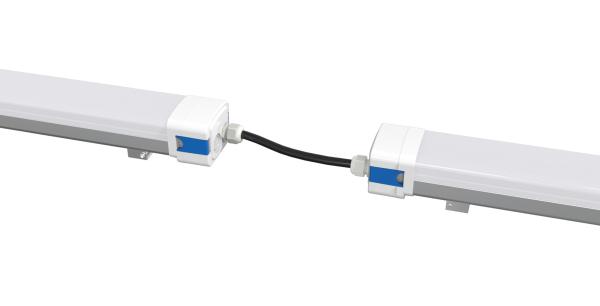

> Single or Double wiring;
> IP65/IP66 and IK10 for all industrial areas of application;

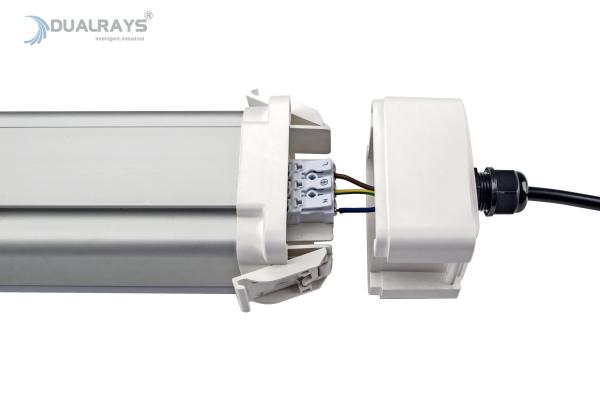

> Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;;
> Half AL+half PC, ensure both high light efficiency and excellent heat dissipation;
> Convenient installations, tool-less

Options:
> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.
> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.
> Installation: Suspension, Ceilign Mounted and adjustable surface mount.
> Single or double wiring and connection.
> Customized supported for special projects.
Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation
* Replacement for fluorescent NCF
* Workshops and warehouse
* Garage and car parks
* Sport facility
* Corridor/Gallery/Corridor
* Outdoor & Indoor Locations

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

Character/Length
2ft
3ft
4ft
5ft
Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation
A
600mm
900mm
1200mm
1500mm
B
90mm
90mm
90mm
90mm
C
74mm
74mm
74mm
74mm


Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation
Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation
Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

DALI Device
Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

DALI Intelligent Control Diagram
Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation


DALI Intelligent Control Operator Interface
Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation
Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation
Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation
Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation
Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation
Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation
Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation
Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation
Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

Shipment
Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

Q1: What is the warranty? What service can you provide?
RE: For the D5 Series LED triproof light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What’s the payment methods you can accept ?
RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.
Q3: Is there a MOQ? Can I start from small samples?
RE: No MOQ, 1psc sample order for testing welcome. DUALRAYS always do our best to support every customer.

Q4: What is the production time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q5: Can you do DIAlux Simulation?
RE: Yes, please send us your inquiry and sizes of your applications, we have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: Do you offer intelligent controllers?
RE: Yes, PIR Sensor, Emergency, 1-10V, DALI, Microwave Sensor available, please contact us for details.
Q7: Do you offer OEM or ODM?
RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:
1. We can provide you with our present products with your own label;
2. We can modify our products as your request;
3. We can even develop totally new products based on your design;
Q8: What‘re the chips and drivers used?
RE: High brightness San‘an SMD2835 LEDs light source,flicker free drivers for option.

Q9: What is the CRI?

RE: Ra>80 or Ra>70

Q10: IP Rating?
RE: IP65.

Q11: Labeling ?
RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q12: Finish color?
RE: Standard colors: Silver,other colors can be customized, based on MOQ 50PCS.

Q13: Dimming functions?
RE: PIR sensor,Emergency,1-10V,DALI,Microwave sensor is available.

Q14: Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Let's meet DUALRAYS from below pictures!

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

Why DUALRAYS?

* Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat DissipationDurable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

ISO9001:2008 ISO14001:2004

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat DissipationDurable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation

The best quality innovation award Shenzhen Hi-tech Enterprise

Durable LED Tri Proof Light 2ft 20W Heavy Duty Aluminum Housing Good Heat Dissipation
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
