Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-TPL020-CG21
Certification :
CE,RoHS,TUV/GS,LM79,LM80
Place of Origin :
Shenzhen,China
MOQ :
10PCS
Price :
Negotiable
Delivery Time :
5-15 business days
Packaging Details :
Netural Package/OEM and ODM Package Available,10PCS/CNT
AC Input Vol :
AC200~277V 50-60Hz
Warranty :
5 years
Life Span :
50,000H
Application :
Workshops and warehouse
Description
Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse

Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse

Model No.
 DR-TP020-CG2XPX DR-TP030-CG4XPX DR-TP040-CG4XPX DR-TP040-CG5XPX DR-TP050-CG5XPX
System Watts/W
 20W 30W 40W 40W
50W
System Efficiency/LPW
 130LPW / 160LPW Optioanl
Lumen Output/lm
 2.600/3.200±5% 3.900/4.800±5% 5.200/6.400±5% 5.200/6.400±5% 6.500/8.000±5%
Rated Input Voltage/V
 AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source
 SMD2835
SDCM
 <6
CCT/K
 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
 >80Ra (>70Ra for Option)
Power Factor
 >0.91
THD
 <10%
Beam Angle(Optional)
 120°
UGR
 <22
LED Driver BOKE Fixed Power/ DIP Switch Power Adjustable Optional
IP Rating IP65
IK Level
 IK08
Dimming(Optional)
 1-10V, DALI,Zigbee
Sensor(Optional)

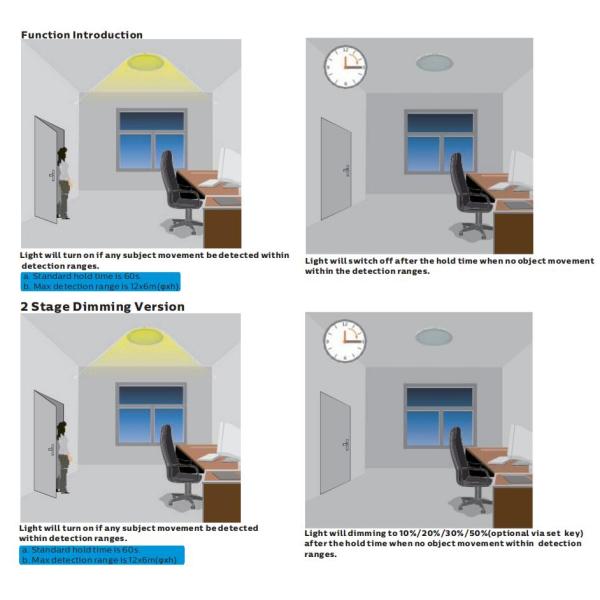

 Daylight sensor/Microwave Sensor
Emergency(Optional)
 5W@3 Hours or Customized
Protection Class
 ClassⅠ
Finishing Color(Optional)
 White RAL9016 Optional
Material
 PC+PC
Lifespan/hrs
 54.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
 - 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)
 Suspension / Ceiling Mounting Optional
Certificate
 CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
> Driver: BOKE fixed power driver,DIP switch power adjustable driver;
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,Microwave sensor,Emergency;
> Plug: European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable;
> Installation : Suspension, Wall Mounting;
> Wiring: Single or double wiring;
Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
> Replacement for fluorescent NCF;

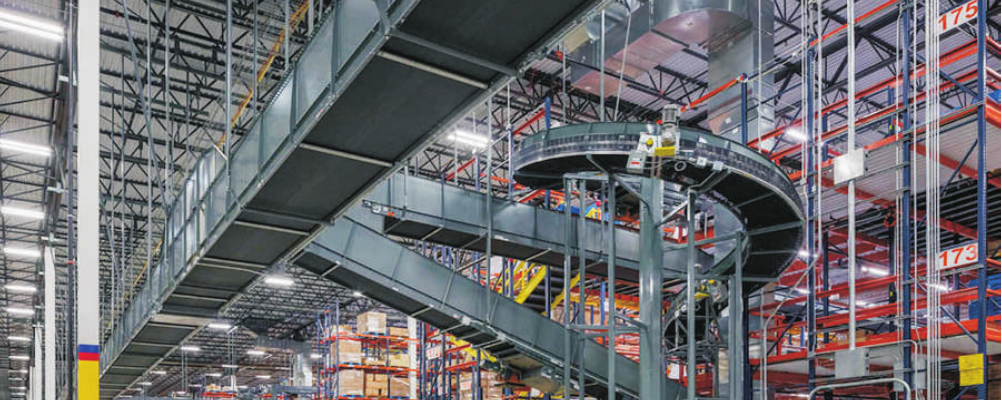

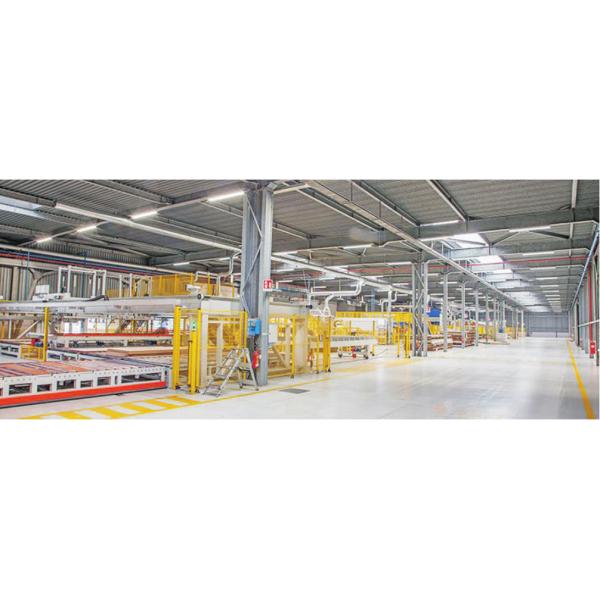

> Workshops and warehouse;
> Garage and car parks;
> Sport facility;
> Corridor/Gallery/Corridor;
> Outdoor & Indoor Locations;
Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
Character/Length
2ft
4ft
5ft
Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
A
602mm
1202mm
1502mm
B
638mm
1238mm
1538mm
C
63mm
63mm
63mm
D
73mm
73mm
73mm

Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse

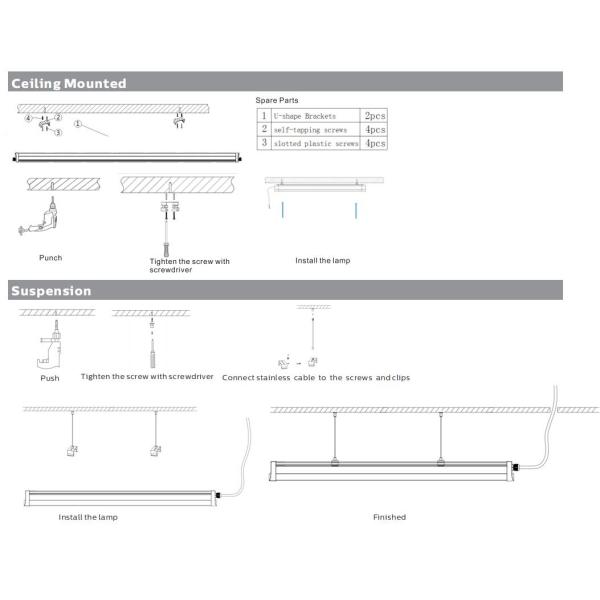

INSTALLATION GUIDE
IMPORTANT SAFETY INFORMATION:
Please read all the instructions below before installation
> Make sure that the supply voltage corresponds to the rated product voltage;
> The product must be installed by a qualifed electrician in accordance with the National Electrical Code and corresponding local codes.
> If the product is damaged, do not use it!

Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
RISK OF PERSONAL INJURY – READ and follow all WARNINGS and installation instructions.
Keep or give to the owner for future reference.

Risk of cuts: Wear gloves to prevent cuts or abrasions when removing from carton, handling, installing, and maintaining this product.
Risk of electric shock: This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
Risk of Fire: Minimum 194°F supply conductors. Consult a qualifed electrician to ensure correct branch circuit conductor. DUALRAYS® assumes no responsibility for claims arising out of improper or careless Installation or handling of this product.

Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse

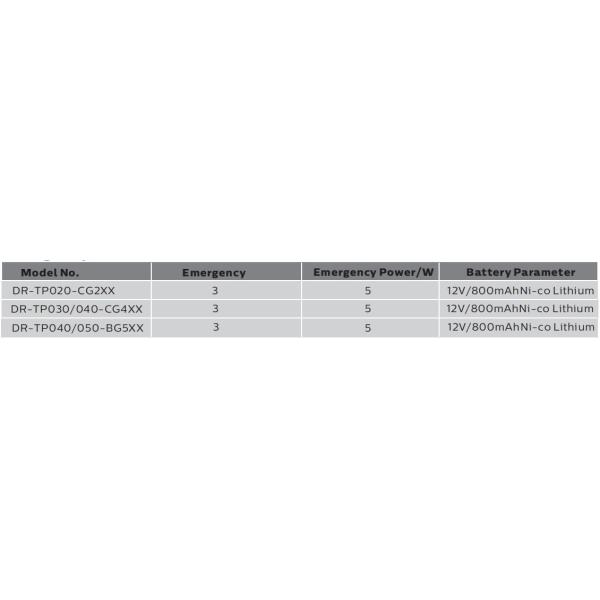

(I) Emergency Function
Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
DALI Device
Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-TP020-CG2XP
12.5
670*440*200
13.2
9PCS/CTN
DR-TP030-CG4XP
15.8
1270*360*200
17.5
9PCS/CTN
DR-TP040-CG4XP
16.1
1270*360*200
18.3
9PCS/CTN
DR-TP040-CG5XP
19.1
1570*360*200
20.6
9PCS/CTN
DR-TP050-CG5XP
19.5
1570*360*200
21.4
9PCS/CTN

Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse


Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
Surface Mounted Industrial LED Lighting 2ft 20Watt For Workshops Warehouse
