Specifications
Brand Name :
DUALRAYS
Model Number :
DR-TPL050-BG51
Certification :
CE,RoHS,TUV/GS,LM79,LM80
Place of Origin :
Shenzhen,China
MOQ :
8pcs
Price :
Negotiable
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
100000PCS/Month
Delivery Time :
5-15 business days
Packaging Details :
Neutral Package,color box package,8PCS/CTN,L1570xW360xH200mm
Rated Power :
50W
Power Factor :
PF>0.9
Lumen Maintenance @ 6000 hrs :
>90%
Switching Cycle before Failure :
100,000
Warranty :
5 years
Power Supply :
Boke
Description
15W LED Portable Temporary Work Light foruse in the marine industry, shipbuilding, ship repair and maintenance, offshore, oil and gas and construction industries
The TW5 light is a revolutionary model of portable, temporary work lighting intended for use in the marine industry, shipbuilding, ship repair and maintenance, offshore,
oil and gas and construction industries.
Due to its low, safe operating voltages AC/DC24~42VAC, AC/DC110V, it can reliably and safely be used during various technological phases and work processes - steelwork, sandblasting, high-pressure wash and anti-corrosion protection.
It is made of high-quality robust materials that make them very resistant without the risk of damage or breakage. IP67 protection level and mechanical protection IK10.
Compared to traditional work lamps, it is very practical and easy to use, and makes your service and processes cheaper, faster and more competitive.
The lighting system contributes to increased productivity and safety of workers in accordance with the CENELEC norm HD63751 and increased efficiency of all work processes.
The lamp have a very simple connection to the power supply, it can be connected to 3 types of cable - 2 *1.5/2.5mm² for short lines and 2*6mm² for longer lines with a bigger
number of lamps connected in a series.

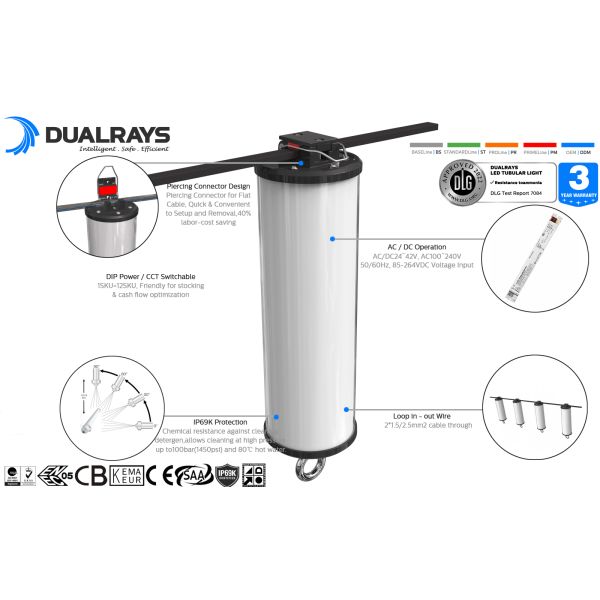

The cable connection is located at the top cover, strong and resistant to shocks and pulls.

15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
* High Brightness SAN'AN SMD2835 LEDs, AC/DC24~42V, AC100~240V 50/60Hz, 85-264VDC power input;
* Against Water Pressure of 100bar(1450psi) and Temperature of 80°C;
* Piercing Connector for Flat Cable;
* H05RNH2-F 2*1.5mm2 | 2*2.5mm2 | 2*6.0mm2 wires through for option;
* IP69K PMMA IK06 Anti-ammonia/UV /PC IK10 Anti-UV Protection;;
* 360°beam angle;
* Multiple Installations: Suspension, Wall Mounting, Magnetic Holder;

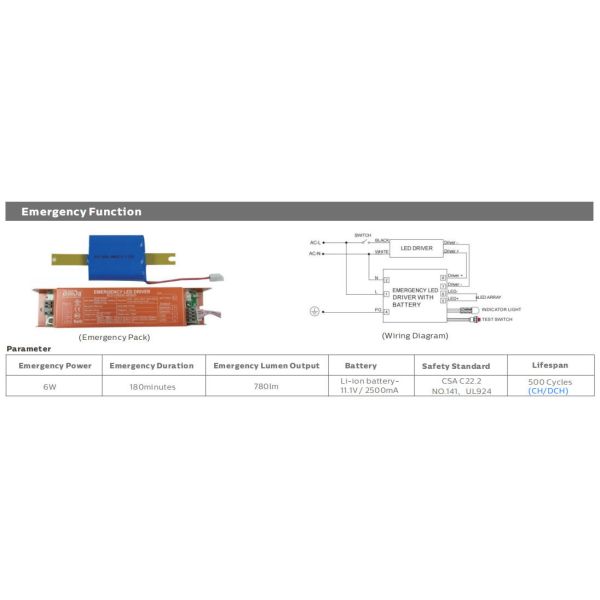

* Various intelligent control: 1-10V and Emergency ;
* No UV or IR and completely mercury free;
* L80/B10 @ 72.000h;
* Customized supported for special projects;

Options:
> Input Voltage: AC/DC24~42V, AC100~240V 50/60Hz, 85-264VDC power input;
> H05RNH2-F 2*1.5mm2 | 2*2.5mm2 | 2*6.0mm2 wires through for option;
> Controls and Dimming: 1-10V and Emergency;
> Installation: Suspension, Wall Mounting, Magnetic Holder;
> Material: PC/PMMA optional;

> Special military operations;
> Military training camps;
> War and civil shelters;
> Temporary settlements, campfire and tents;
> Storage below or above ground;
> Rescue operations;
> Outer and inner areas without lighting;

15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
General System
Housing Material: Extruted PC/PMMA according to the UNE-EN ISO 21305-1:2020 standard, UV filter conditional(IK10)
Diffuser Material: Extruted PC/PMMA according to the UNE-EN ISO 21305-1:2020 standard, UV filter conditional(IK10)
Housing Color: White (RAL9016), Other colors optional
Sealing Gaskets: Silicone foam
LEDs Thermal Dissipation: Through finless 6063 AL luminaire body, without conductive fluids. Passive convection dissipation
ensuring thermal contact with the LED modules through a high-conductivity Lead-free solder paste
Anti-condensation: Pressure-balancing valve to ensure moisture release, avoid condensation and maintain the luminaire IP tightness
Finish: Electrostatically sprayed and sublimated in the oven. Resistant to corrosion
Recommended Mounted Height: 2 - 4 meters
Maintenance: End-cap with screw for installation
Driver: Constant current, embedded in luminaire, pre-wired
Dimming Control: ON-OFF | 1-10V dimming
IP (Ingress Protection Rating): IP67 / IP69K
IK (Impact Resistance): IK10
Protective Class: Class ⅠⅠ
Glow Wire: 850°C (Under 30s)
Cable Gland: Piercing Connector for Flat Cable
Installation: Ceiling mounted | Suspension | Magnetic Mounted | Rotatable Wall Mounted
Smart Function: Microwave Sensor | Emergency
Luminary Inner Protective Cover: PMMA 2.5mm
Removable Protective Cover Polycarbonate: 2.5 - 3mm

Electrical System
Through-wiring: H05RNH2-F 2*1.5mm2 | 2*2.5mm2 | 2*6.0mm2 wires through for option
Main Voltage: AC/DC24~42V, AC100~240V 50/60Hz, 85-264VDC
Power Factor (PF): ≥0.97
Total Harmonic Distortion (THD): ＜10%
Output Type: Non-SELV(non-isolated)
Flicker Factor: ＜1%
Stroboscopic Visibility Measure (SVM): ＜0.4
Perceptibility of Stroboscopic Effects (Pst): ＜1
Terminal Connection: Piercing Connector for Flat Cable

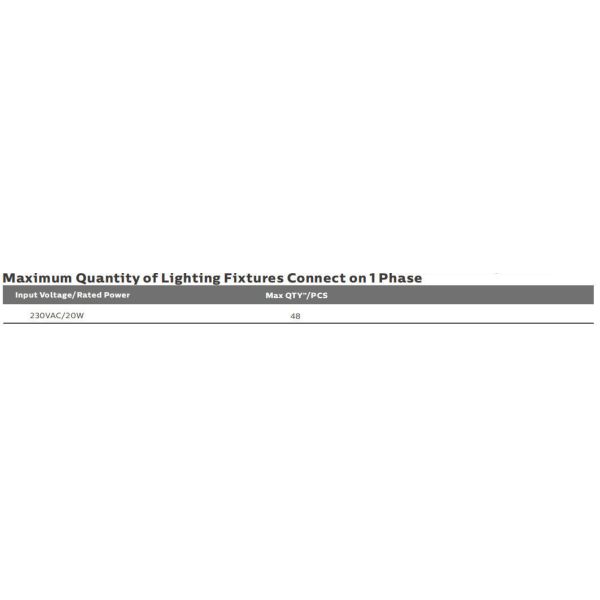

Luminaires Power B10A B16A C10A C16A
Module via LSS Circuit Breakers Luminaires Power B10A B16A C10A C16A
15W 94 145 130 210

Photometry System
LEDs: SMD2835 (1W)

CCT (Correlated Color Temperature): Single CCT (3000K | 4000K | 5000K | 5700K |6500K)
CRI (Color Rendering Index): >80Ra for standard (>90Ra for higher CRI available)
Photobiological Safety: RG0 (exempt of risk)
EEC (Energy Effciency Class): A++
SDCM (Standard Deviation of Color Matching): ＜5 (SDCM<3 Optional)

UGR (4H, 8H) : 24.9 (Cross)

23.4 (Longitudinal)

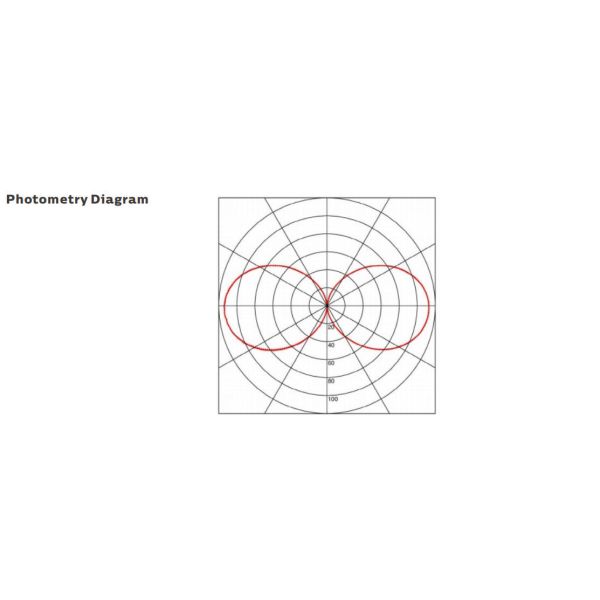

Beam Angle: 360°
Average Luminaire Useful Lifetime: 72.000 hours (L80B10)
Lumen Maintenance at e.o.l. >70%
Luminous Efficacy: 140LPW (PROLine)
Rated Power: 20W
Lumens Delivered @ 5000K, CRl>80 2.100lm

Operation Condition
Operation Temperature / Humidity: -20~ +60℃ (-4°F ~ 140°F) / 5~85% RH, not condensed
Storage Temperature / Humidity: -40~ +80℃ (-40°F ~ 176°F) / 5~85% RH, not condensed
Average LED Useful Time L90B10: ≥0.96
Rated Nominal Lifetime (Tp <70℃): Up to 100,000H
Driver MTBF: 500.000H,MIL-HDBK-217F(25℃)
Vibration Resistant: 10~500Hz,5G 12min / 1cycle,period for 72min. Each along X,Y,Z axes
Acoustic Noise: ＜25dB (30cm disstance, Normal operation)
Guarantee: 3 Years (Extensible up to 5 years)

Certifications
Global Certificate: ENEC | CE | RoHS | D-mark | KEMA-KEUR Listed, SAA | C-Tick | RCM | CB | ETL/CETL | DLC Premium
Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471
EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384
Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11

* Luminous flux tolerance, Power tolerance and color temperature tolerance ±5%, 5000K and CRl>80.
* Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
* Up-to-date product info and general warranty terms available on our website www.DUALRAYS.com
* Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
* Values may be subject to change due to LED binning.
* The parameters in the data sheet are given for Ta=25°C, based on 4000K/80Ra, 10% efficiency higher with 70Ra

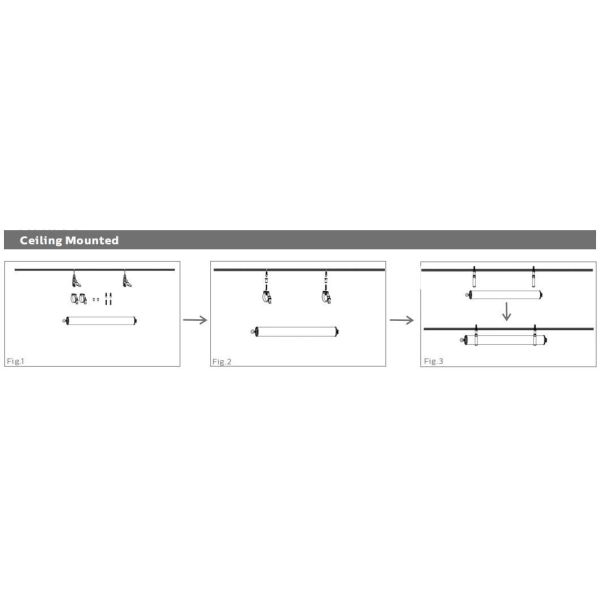

Ceiling Mounted:
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
Drilling screw hole on the ceiling. Fix the clip into ceiling with screw. Click into the luminaire by hand tightly.

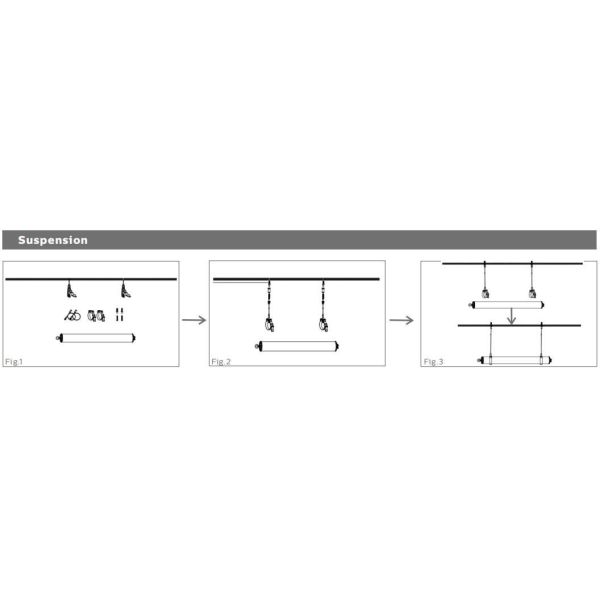

Suspension:
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
Drilling screw hole on the ceiling. Click into the luminaire by hand tightly, Install then adjust the length of suspension kits. the clip.
and Fix the mounting hook into ceiling.

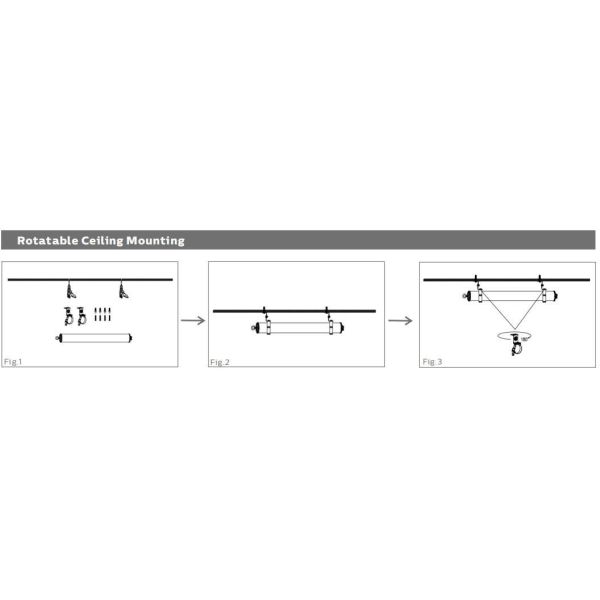

Rotatable Ceiling Mounting:
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
Drilling screw hole on the ceiling. Click into the luminaire with clips. Rotate the angle on demand.

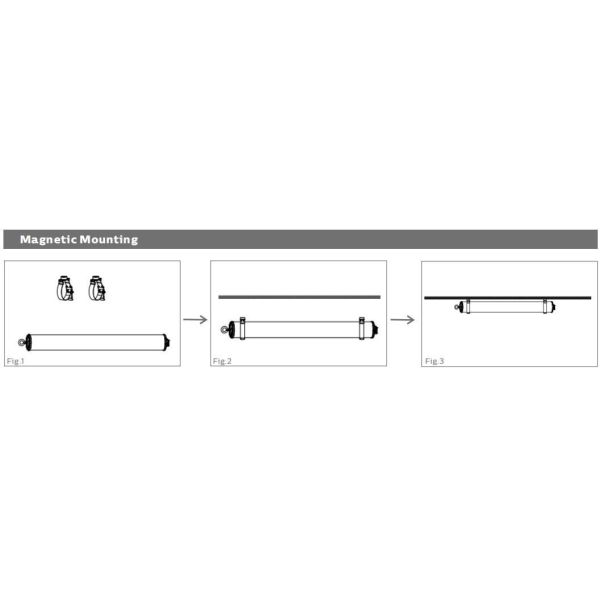

Magnetic Mounting:
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
Take out the 2PCS clips with magnetic rings Click into the luminaire with magnetic clips Fix the luminaire on metallic(Fe, Ni, Co) or
from the component package. with hand tightly. its alloy objects surface as required.

15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction

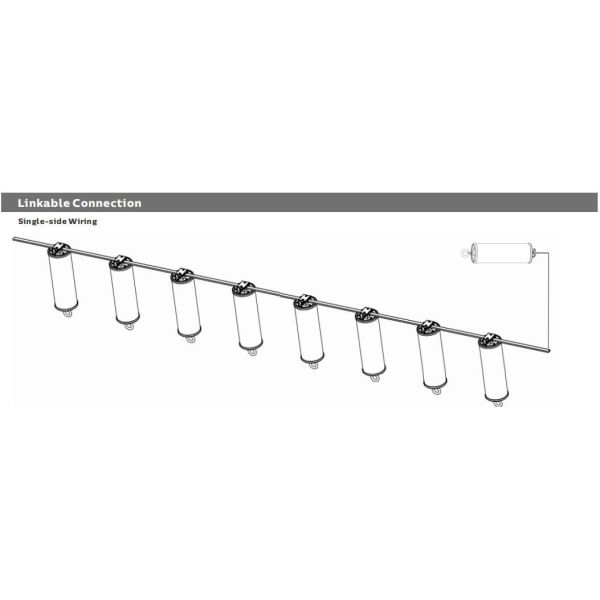

Linkable Connection:
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction

15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction

Please read all the instructions below before installation:
* To avoid electric shock, please ensure that the power supply is turned off before installation.
* The lamp should be installed and operated by a qualified electrician or technician in accordance with the National Electrical Code and corresponding local codes.
* Unpack and examine the lamp carefully, report any damage and save all packing materials if any portion of the product was damaged during transportation.
* If the lamp is damaged, do not use it!
Statement:
According to the International Standard of LED luminaire, here DUALRAYS formally claims that DUALRAYS LED Highbay Light (UFO Highbay) series products is only allowed to be applied to indoor or semi-outdoor neutral environment. Meanwhile DUALRAYS promises full warranty for the products.
Any severe environment application including high/low temperature, high humidity, high salinity, high-ammonia etc. is not permitted without the official confirmation from the manufacturer. If any misapplication happens, the warranty policy is no longer guaranteed.

* Professional team: >15 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

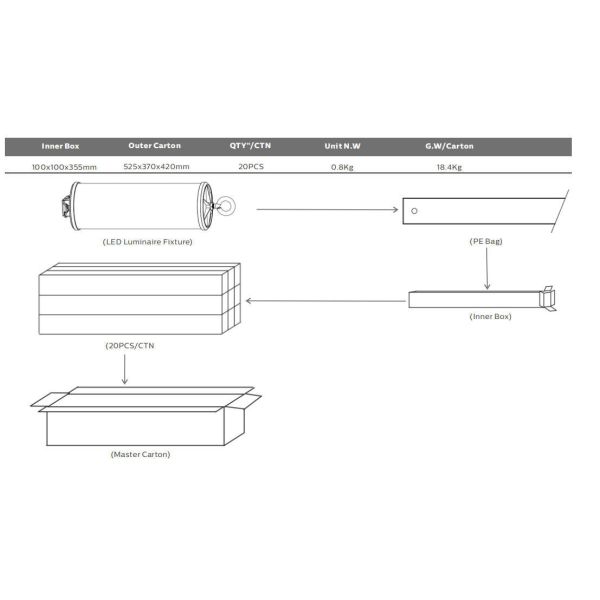

Shipment:

15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q1: What is the warranty for the TB7 LED Tubular light?

RE: 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What’s the payment methods you can accept ?
RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.

Q3: What is CRI?
RE: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For LED tubes,the CRI is mostly >80Ra,and 90Ra with higher cost.

Q4: Can I only buy the housing separately?
RE:Sorry,we only supply the whole luminaire fixture,but SKD/CKD can be accepted.

Q5:Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q6:Can we get support if we have our own market position?
RE: Please inform us your detailed mind on your market, demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

Q7: Dimming functions?
RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.

Q8:What are the applications of your TB7 LED Tubular light?
RE:Our higbay light can be applied in the following occassions:
> Replacement for fluorescent NCF;
> Food Processing Plant;
> Chemical Facilities;
> Animal Stable Warehouse;
> Car Washing Place;
> Outdoor & Indoor Locations;

Welcome to contact us for more information, visit our official website www.DUALRAYS.com or send us email to info@DUALRAYS.com to get the latest information and support.

Let's know more about DUALRAYS from below pictures!

15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction

15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction

15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction

15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction


Thank you for your using DUALRAYS LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!

Product tags

outdoor led p10

,

p10 led outdoor

,

led outdoor p10
Send your message to this supplier
Send Now

15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction

Ask Latest Price
Watch Video
Product Detail
Brand Name :
DUALRAYS
Model Number :
DR-TPL050-BG51
Certification :
CE,RoHS,TUV/GS,LM79,LM80
Place of Origin :
Shenzhen,China
MOQ :
8pcs
Price :
Negotiable
Contact Supplier
video
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction
15W LED Portable Work Light with IP67 Protection and 5-Year Warranty for Marine and Construction

DUALRAYS LIGHTING Co.,LTD.

Verified Supplier
8 Years
guangdong, shenzhen
Since 2010
Business Type :
Manufacturer, Distributor/Wholesaler, Exporter, Seller
Main Products :
LED Moisture-proof Lamp, LED Tubular Light, LED Highbay Light
Total Annual :
6000000-10000000
Employee Number :
50~100
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Marine LED Light
MachineU China Products Lights & Lighting Commercial & Industrial Lighting Tri-proof Light
Contact Supplier
Submit Requirement
