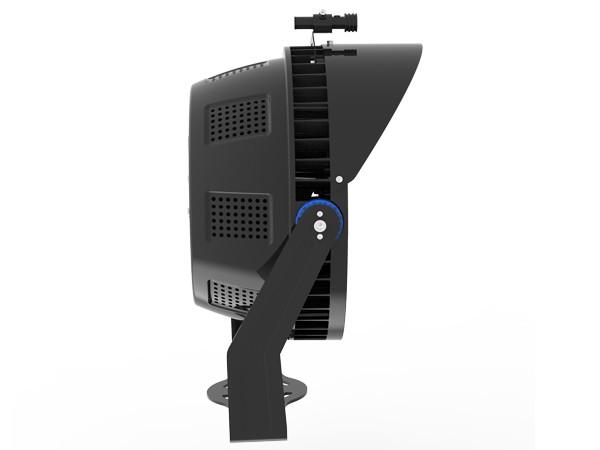

150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court
150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court
150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court
150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court
Specifications
Brand Name :
DUALRAYS
Model Number :
DR-SPL400-FGXP
Certification :
CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Place of Origin :
Shenzhen,China
MOQ :
1pcs
Price :
Please inquiry for updated price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/Month
Delivery Time :
5-15 Bussiness Day
Packaging Details :
Netural Package/OEM and ODM Package Available
Power :
300W/400W/800W/600W
LEDs :
SMD3030
Luminaire Efficiency :
150lm/W
Warranty :
5 years
Power Supply :
SOSEN/Meanwell
UGR :
<25
Material :
Aluminium Alloy 6063+PC
Life span :
>50,000 hours
Description

400W LED Flood Light Full Al Heat Sink Structure For Large And Small Parking / Square

150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court
150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court
> Lens : Symmetrical 30°/60°/90° beam angle optional;
> Aiming Device: Laser Pointer;
> Driver: Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court
Model No. DR-SPL300-FGXP DR-SPL400-FGXP DR-SPL600-FGXP DR-SPL800-FGXP
System Watts/W 300W 400W 600W 800W
System Efficiency/LPW 150LPW
Lumen Output/lm 45.000±5% 60.000±5% 90.000±5% 120.000±5%
Rated Input Voltage/V AC100~277V, 50/60Hz
LEDs Light Source SMD5050
SDCM <5
CCT/K 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra >70Ra (>80Ra for Option)
Power Factor >0.95
THD <10%
Beam Angle(Optional) 30°/60°/90°
UGR <25
Surge Protection 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver Meanwell ELG / HLG Optional
IP Rating IP65
Dimming(Optional) 1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time 0.5s
Protection Class ClassⅠ
Finishing Color(Optional) Black RAL9017(Standard) / White RAL9016 Optional
Material Aluminum+PC
Lifespan/hrs 70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃ 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃ - 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court
Character/Power
300W
400W
600W
800W
150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court
A / mm
Ø445
Ø445
Ø537
Ø537
B / mm
321
321
373
373
150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court
150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court

150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court
150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court
150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court

150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court
150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court

150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court

150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court

150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court

Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-SPL300-FGXP
12.4
610*510*250
13.8
1PCS/CTN
DR-SPL400-FGXP
12.9
610*510*250
14.7
1PCS/CTN
DR-SPL600-FGXP
25.3
890*710*275
27.6
 1PCS/CTN
DR-SPL800-FGXP 25.9 890*710*275 28.8
1PCS/CTN


150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court
150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court

150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court


150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court
