AC 220V 60Hz 6500K IP65 IK07 240W Exterior Led Flood Lights
AC 220V 60Hz 6500K IP65 IK07 240W Exterior Led Flood Lights
AC 220V 60Hz 6500K IP65 IK07 240W Exterior Led Flood Lights
AC 220V 60Hz 6500K IP65 IK07 240W Exterior Led Flood Lights
AC 220V 60Hz 6500K IP65 IK07 240W Exterior Led Flood Lights
AC 220V 60Hz 6500K IP65 IK07 240W Exterior Led Flood Lights
AC 220V 60Hz 6500K IP65 IK07 240W Exterior Led Flood Lights
AC 220V 60Hz 6500K IP65 IK07 240W Exterior Led Flood Lights
AC 220V 60Hz 6500K IP65 IK07 240W Exterior Led Flood Lights
AC 220V 60Hz 6500K IP65 IK07 240W Exterior Led Flood Lights
Specifications
Brand Name :
LCD-CESP brand
Model Number :
LCD-LYRLFS-243
Certification :
CE RoHs SAA ETL UL TUV
Place of Origin :
SHENZHEN, CHINA
MOQ :
1pcs
Price :
usd
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 piece/ month
Delivery Time :
5-12 work day
Packaging Details :
Carton box
Lamp luminous efficiency(lm/w) :
140
Power :
240W
Led chip :
Bridgelux, Lumileds, SMD3030, SMD5050, Cree, OSRAM
Item type :
Flood Lights
Working temperature(℃) :
-30 - 50
Warranty :
5 Years / 7 years
Description

AC 220V 60Hz 6500K IP65 IK07 240W Exterior Led Flood Lights

Dimmable led spotlight bulbs 240W 220VAC 50/60Hz 6500K IP65 IK07 5year warranty

Hightlight:

  • Energy Saving
  • High quality
  • High lumen
  • High Heat sink efficiency
  • Weather proof
  • Light Weight
  • Elgent design
  • Dimmable: 1-10V

Specifications:

Wattage 100W 150W 200W 240W
Light source SMD 3030
Lamp Luminous Efficiency(lm/w) 110 - 130 lm/w
Lamp Luminous Flux(lm) 13000 19500 26000 31200
Color Temperature(CCT) 2800-3000K,4000-4500K, 6000-6500K,7000-7500K
CRI (Ra>) 80
Input Voltage(V) AC85-240V 50-60HZ
Housing Matrial Die-cast Aluminum
Driver IC,Isolated
Driver efficiency ≥0.9%
Power Factory(PF) ≥0.95
Working Temperature(℃) —20~60℃
IP Ratin IP65
Angle Beam (Degree) 120
Certificate CE, ROHS, EMC, LVD
Warranty(Years) 5 Years

Landscaping floodlight 240W

Brighten large outdoor spaces with our line of high-power LED flood lights. Fixtures feature adjustable mounting brackets, allowing you to focus light output with precision. Quality-tested and built to last, our LED flood lights stand up against the elements and significantly outperform traditional halogen fixtures. A top choice for a wide range of applications, including billboard and subdivision sign lighting, architectural facades, parking lots, landscaping, and area lighting.

Operating and Electrical
Input Voltage 220-240 VAC or 110-277VAC
Input Frequency 50 or 60 Hz
Power Factor (Min) 0.95
Controls and Dimming 1-10V , Triac , motion sensor or Infrared induction

Mechanical and Housing
Housing Material Aluminum 1060 extruded
Reflector material Pure polish aluminum reflector
Optic material Polycarbonate
Optical cover/lens material Polycarbonate
Fixation material Carbon steel with corrosion proof powder coating
Mounting device Mounting bracket adjustable
Optical cover/lens shape -----
Optical cover/lens finish transparent or Frosted
Overall length see dimensional drawing
Overall width see dimensional drawing
Overall height see dimensional drawing
Effective projected area 0.158m²
Color Aluminum and black

Approval and Application
Ingress protection code IP66 [ Dust penetration-protected, jet-proof]
Mech. impact protection code IK07 [ >4 J vandal-protected]
Surge Protection (Common/Differential) Luminaire surge protection level until 3 kV

Initial Performance (IEC Compliant)
Initial luminous flux (system flux) 31200 lm
Luminous flux tolerance +/-10%
Initial LED luminaire efficacy 130 lm/W
Init. Corr. Color Temperature 3000K / 4000K / 6500K
Init. Color Rendering Index 75
Initial chromaticity SDCM<=5
Initial input power 240 W
Power consumption tolerance +/-10%

Application Conditions / Product Data
Ambient temperature range -30 to +50 °C
Maximum dim level on requests
Full product code LCD-LYRLFS-243-LNXX-4K
Order product name LCD-LYRLFS-Flood light 240W
Order code N
Numerator - Quantity Per Pack 1 pcs
Numerator - Packs per outer box 1 box
Material Nr. (12NC) N
Net Weight (Piece) 6.1KG

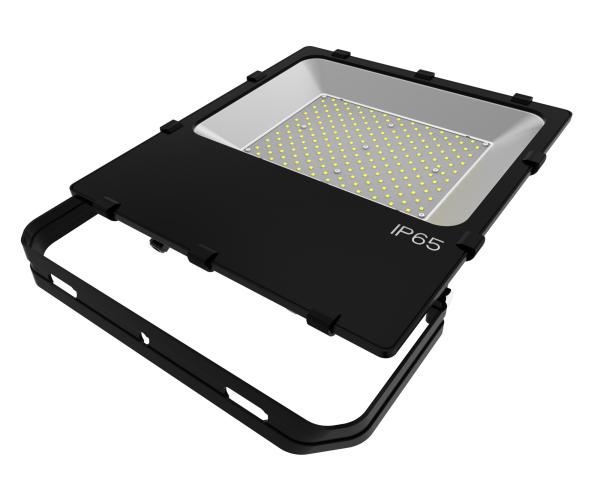

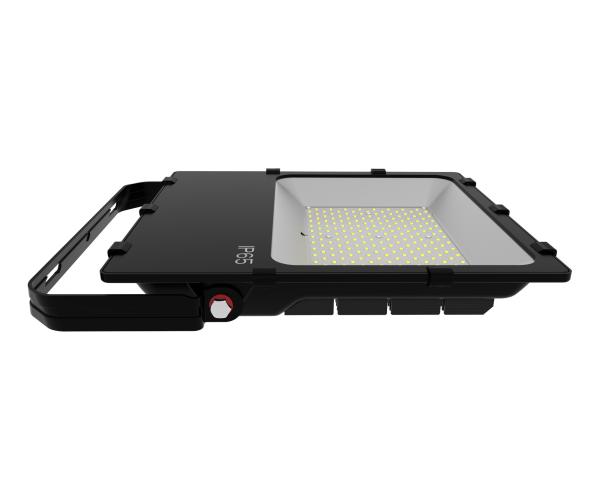

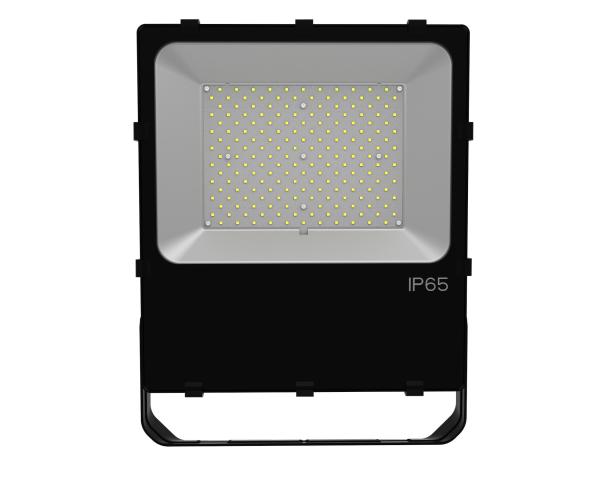

Product Photos:

AC 220V 60Hz 6500K IP65 IK07 240W Exterior Led Flood Lights

AC 220V 60Hz 6500K IP65 IK07 240W Exterior Led Flood Lights

Dimensional drawing

AC 220V 60Hz 6500K IP65 IK07 240W Exterior Led Flood Lights
