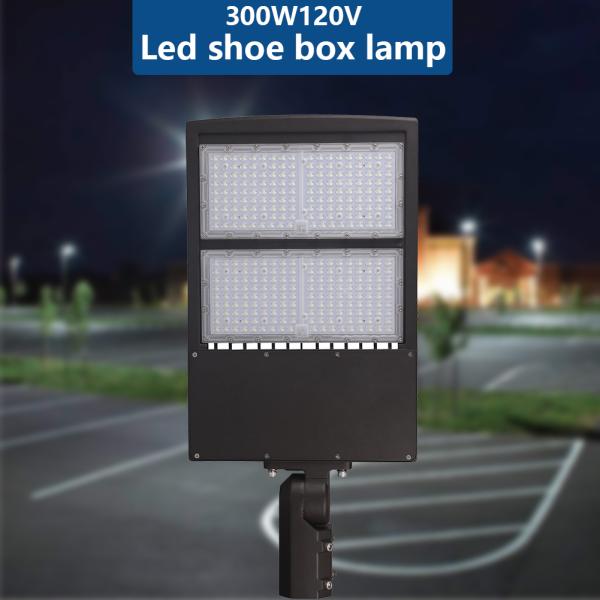

39000LM 300W LED Shoebox Light , Outdoor Led Flood Lights

Specifications

Brand Name :

LEDSION

Model Number :

LS-ESBV7300WCT3H1-50

Certification :

UL, DLC

Place of Origin :

China

MOQ :

1pcs

Price :

Negotiation

Payment Terms :

T/T, CC, PP, Check

Supply Ability :

500pcs/week

Delivery Time :

1-2 days

Packaging Details :

Carton package, 1pcs/CTN, packing size: 29*15*6inch，weight: 20lbs

Product name :

300W High Voltage LED Area Lights

Power :

300W

Lumen :

37500-42000

Lamp luminous flux(lm) :

130lm/W

Ip rating :

IP65

Color temperature(cct) :

4000K 5000K 5700K

CRI :

>80Ra

Lamp body material :

die-casing aluminum housing

Input voltage(v) :

200-480Vac

Application :

parking lot,square, street

Warranty(year) :

5 years

Description

Outdoor lighting 300W LED area lights 39000lm 200-480Vac brown slip fitter

High quality Brown 300W LED Shobox Lights in our USA Stock, With UL certification and DLC certification and 5 years warranty. There are 120V 480V and 3 types of Mounts(Slip Fitter/ Direct Mount/Yoke Mount) for you choose. What’s More we can arrange the shipment within 24 hours. If you like, the Photocell and motion sensor are achievable.

LED Shoebox Light Features:

LED Shoebox Light adopted optical light distribution, that is no glare, no light pollution, highly directional light and more even luminous beam.

Module lens design make the lamp with well suited lighting distributing for LED parking lot lighting.
Hollow out heat sink design make the lamp weight lighter and have good heat dissipation.
5 kinds of installation brackets.
Good-looking appearance. lamp luminous efficiency reaches 140lm/w.
Lighting distribution curve: Type Ⅲ
Can be with photocell sensor and motion sensor.

Applications:

Outdoor basketball court, tennis court.
Badminton court, the football field.
The school playground, stadium.
Community leisure entertainment plaza, road lamp etc.

Specifications:

Model No.	LS-ESBV7300WCT3H1-ABCEF
Input Power	300W
Lumen	37500-4200lm
Lumen Efficacy	125-140lm/W
Color Temperature	4000K, 5000K, 5700K
CRI	>70
Viewing Angele	150*80Degree (Type Ⅲ)
Input Voltage	200-480V ac 50/60Hz
PF	≥0.9
THD	≤20%
Driver Brand	Meanwell
Driver Model	HVG-320-48AB
Optional Accessory	Photocell / Surge Protector
LED Brand	Seoul
LED Type	SMD3030
LED QTY	308 pcs
Housing	Aluminum Alloy
Housing Color	Coffee color / Black / Customized
Waterproof rating	IP65
Opertating Temperature	-40℃ TO 45℃
Operating Humidity	20%-90% RH
Storage Temperature	-40℃ TO 80℃
Certificate	UL, DLC
Warranty	5 years
