Specifications
Brand Name :
Esdlumen
Model Number :
Wing3
Place of Origin :
China
MOQ :
1
Payment Terms :
Western Union,T/T,D/A,L/C,D/P
Delivery Time :
5-8
Packaging Details :

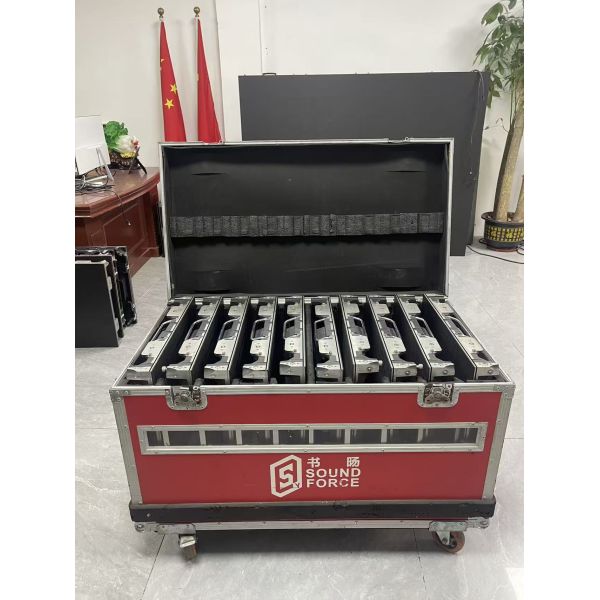

flight case
Description

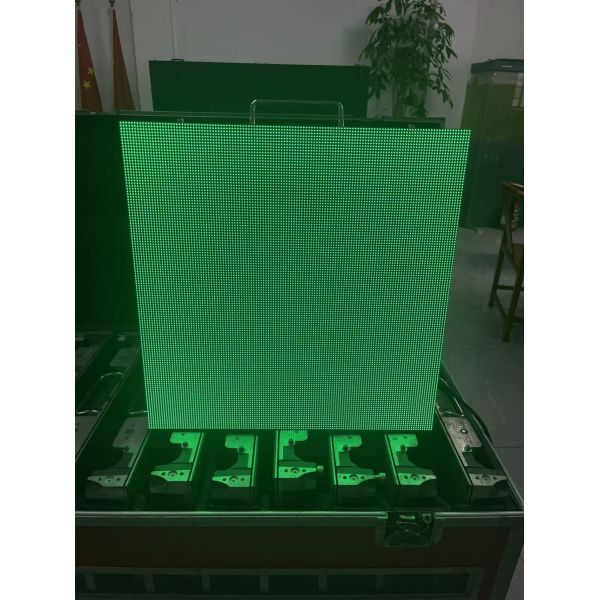

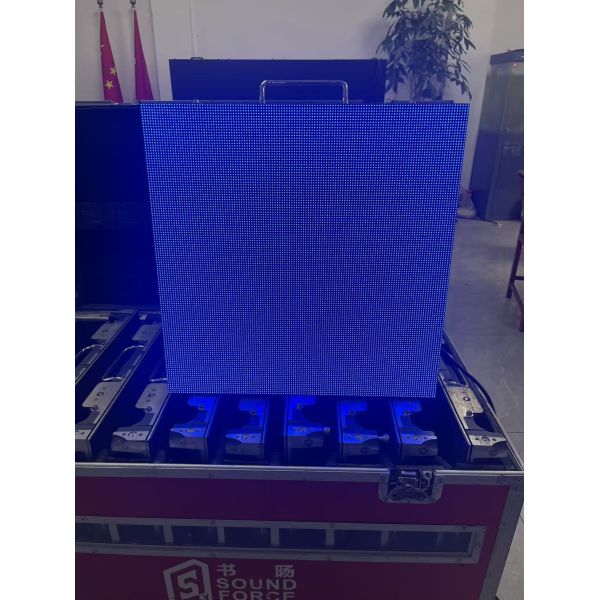

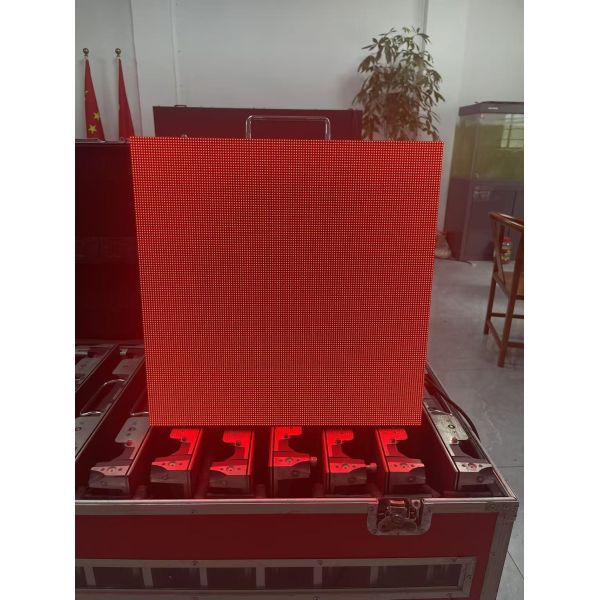

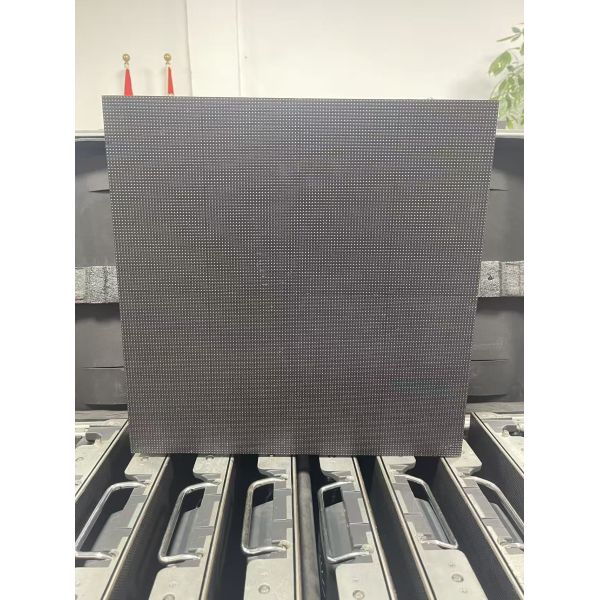

Esdlumen P3.91 Wing3 Indoor LED Display
Wing3 Indoor Display Features
  • High-precision angle lock system supporting flat, convex, and concave curved screen configurations
  • Protective corner design with 360° protection against LED damage and impact
  • Lightweight construction enabling fast single-person installation

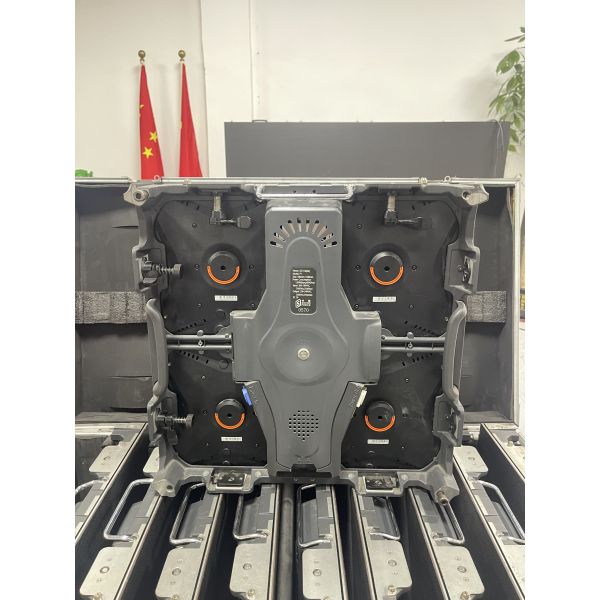

  • Snap-on power box design for quick and easy maintenance access
Technical Specifications
Specification Details
Pixel Pitch 3.91 mm
Panel Size (W x H x D) 500 x 500 x 68 mm
Panel Diagonal 707 mm
Panel Resolution 128 x 128 pixels
Pixel Density 65,536 pixels/m²
Panel Area 0.25 m²
Panel Weight 6.4 kg
Module Size (W x H) 250 x 250 mm
Modules/Panel (W x H) 2 x 2
LEDs per Module 4,088
Power Used (max) 115 Watts/Panel, 460 W/m²
Power Used (avg) 35 Watts/Panel, 140 W/m²
Line Voltage 100 - 240 Volts
LED Type SMD 2121
Brightness 1000 nits (max)
Gray Scale 16 bits
Viewing Angle 160°/120° (H/V)
LED Refresh Rate 1920 Hz
IP Rating Indoor, IP20 front, IP20 back
Product Images
Esdlumen P3.91 wing3 Indoor Screen Esdlumen P3.91 wing3 Indoor Screen Esdlumen P3.91 wing3 Indoor Screen Esdlumen P3.91 wing3 Indoor Screen Esdlumen P3.91 wing3 Indoor Screen Esdlumen P3.91 wing3 Indoor Screen Esdlumen P3.91 wing3 Indoor Screen Esdlumen P3.91 wing3 Indoor Screen
