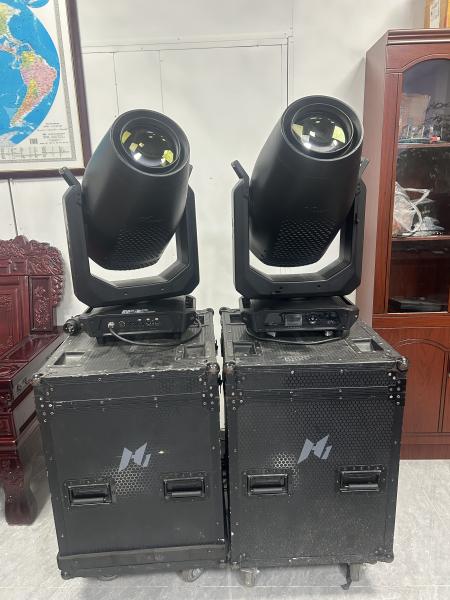

E-MAX HR

Product Description

• 1200W 6000K LED engine
• 23,000 lumen high output
• Extremly even spot with flawless field consistency
• CMY + CTO for precious control and smooth adjustment on color mixing
• CRI>96 (HR version)
• Animation wheel, adjustable frost,dual gobo wheel
• Bi-directional 4-facet prism with variable speed
• 16-bit dimming with SPWM control
• Fast ,smooth PAN/TILT movement
• DMX and RDM control

Product Specifications

Optics
Light Source
1200W 6000K White LED
Luminous Flux
23000 Lm
Color Rendering Index
CRI ≥ 96, R9: 93
Color Temperature
2500K~6000K
Light Source Lifespan
20,000 hours
Beam Angle
6°~50°

Effects
Horizontal Scanning
540° (16-bit scanning accuracy)

Vertical Scanning
270° (16-bit scanning accuracy)

Color System
CMY color mixing + CTO + 6 colors + blanks

Pattern System
Disc 1: Fixed pattern wheel (7 patterns + blanks)

Disc 2: Rotating pattern wheel (6 patterns + blanks)

Effect Wheel
Adjustable speed rotating dynamic effect wheel

Cutting System
Single-cut light plate rotation angle ±35°, overall rotation angle ±60°

Atomization
1°/5°, 0-100% atomization

Strobe
0-30Hz

Dimming
0-100%, four dimming curves

Prism
Bidirectionally adjustable speed rotating quad prism

Control
Control Mode: DMX512/RDM

DMX Channels: 34

Display: 2.83-inch TFT display with auto-flip function

Power Supply
Input Voltage and Frequency
200–240 VAC, 50/60 Hz

Power Connection
SAC3MPX-LY waterproof power input

Maximum Power Connections
1 unit

Signal Connections
3-core and 5-core DMX signal cable input/output

Maximum Signal Connections
32 units

Power Consumption
1450W/230V

Power Factor
0.95/230V

Operating Temperature
-10°C to 45°C

Physical
Dimensions: 440 x 320 x 795.5 mm

Flight Case Dimensions: 707 x 640 x 898 mm

Net Weight: 40 kg

Light + Flight Case Weight: 92 kg (1 unit)

Cooling System: Heat pipe cooling system and low-noise fan
