ET2.6 Indoor Rental LED Screen with Tool-Free Installation, Point-by-Point Calibration, and Built-in Flash Memory
ET Panel: Built for One. Trusted by Professionals. Photographic-grade image quality combined with true one-person, tool-free installation. Engineered for professional rental environments where speed, precision and long-term reliability matter.
Deploy faster. Operate smarter. Maximise ROI.
Product Positioning
The ET Panel is a professional rental LED display system designed for solo operators and high-efficiency rental teams. It delivers perfect image uniformity, ultra-fast installation, and decade-long reliability, making it a dependable long-term asset for premium rental fleets.
Core Advantages
Engineered for Solo Operation

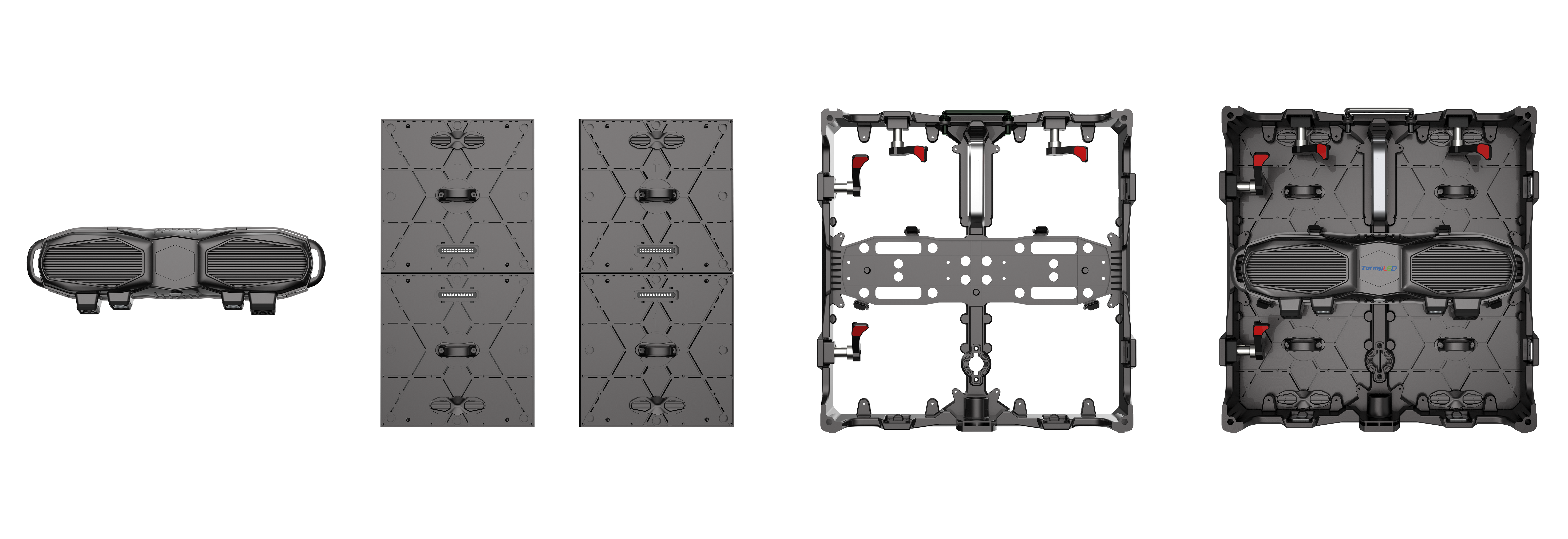

One technician. No tools. No compromise. The ET Panel features a magnetic-assisted locking system and fully tool-free design, allowing a single operator to assemble and dismantle the screen by hand.
- Faster setup and teardown
- Reduced labour costs
- Ideal for tight schedules and compact venues
Point-by-Point Calibration
Perfect Uniformity, Cabinet to Cabinet. Every LED is individually calibrated to ensure absolute colour and brightness consistency across the entire display. This delivers photographic-grade image quality required for:
- Broadcast environments
- High-end corporate events
- Luxury brand and gallery installations
No colour deviation. No hotspots. Just clean, consistent visuals.
Built-in Flash Memory
Calibration Data Stored Inside the Cabinet. All calibration data is saved directly in the cabinet's integrated flash memory. When cabinets are replaced, swapped or expanded, the system automatically reads the data and restores perfect uniformity instantly.
- No recalibration on site
- No downtime
- Consistent results across every project
Hand-Operated Power Box
Fast, Secure and Service-Friendly. The power box is designed with a hand-operated quick-release mechanism, allowing technicians to connect and secure power in one smooth motion.
- No tools required
- Faster field maintenance
- Reliable connections during frequent rental cycles
Built for Long-Term Rental Use
A True Rental Asset. ET Panel is engineered with premium components and a robust mechanical structure to withstand intensive, repeated rental use. Designed for 10+ years of stable, high-performance operation, it delivers:
- Lower total cost of ownership
- Fewer replacements
- Strong, predictable ROI for rental companies
Technical Specifications
Precision, Clearly Defined
- Pixel Pitch: 1.9mm / 2.6mm / 2.9mm / 3.9mm
- Brightness: 600 - 2000 nits (Indoor optimised)
- Calibration: Point-by-Point Calibration
- Memory: Built-in Flash Memory
- Installation: Tool-Free, One-Person Operation
- Cabinet Size: 500 × 500 mm
- Service Life: Engineered for 10+ years of professional rental use
| Item |
Parameter & Description |
| Application |
Stage rental | Hanging & Stacking Fixed installation | 100% Front access for Wall mounted |
| Pixel pitch (mm) |
2.604 |
| Panel Resolution (W×H) (Dots) |
192×192 |
| Brightness (Nit) |
1000~1200 / 1300~1800 |
| Pixel configuration |
SMD1515 / GOB Optional/ SMD2IN1 Optional |
| Scanning Mode |
1/24 or 1/16 |
| Weight (kg / Panel) |
8.2 |
| Pixel per Square Meter |
147,456 |
| Refresh rate (Hz) |
7,680 |
| Input power (Max/Avg.) (W/Panel) |
180/70 |
| Panel size (W×H×D) (mm) |
500×500×86 |
| Panel area (㎡) |
0.25 |
| Panel material |
Aluminum |
| Ingress protection (Front/Rear) |
IP30 / IP30 |
| Certification |
CE, RoHS, FCC |
| Package |
Flight Case, Carton & Pallet, Plywood cases |
Note: The data may change accordingly.
Applications
Designed for High-Stakes Environments
- Corporate roadshows & product launches
- Broadcast studios & live productions
- Luxury retail, galleries & exhibitions
- Premium rental fleets prioritising efficiency and image quality
Visual Suggestion
- Perfectly uniform colour gradients (close-up)
- Single technician locking cabinets by hand
- Hand-operated power box connection detail
One Technician. Total Control. ET Panel helps you work faster, reduce costs, and deliver flawless results -- every time.
