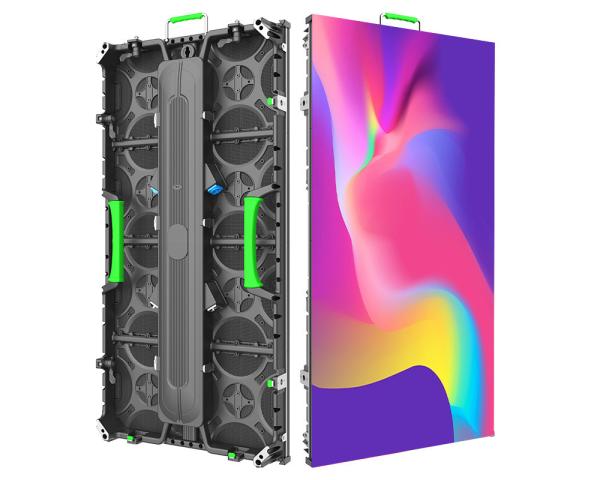

Waterproof Outdoor LED Screen 500*500mm Die Casting Aluminum LED Display
Waterproof Outdoor LED Screen 500*500mm Die Casting Aluminum LED Display
Waterproof Outdoor LED Screen 500*500mm Die Casting Aluminum LED Display
Waterproof Outdoor LED Screen 500*500mm Die Casting Aluminum LED Display
Specifications
Place of Origin :
Guangdong, China
Model Number :
RS-A
Brand Name :
Highmight
Packaging Details :
Flight case/wooden case/carton case packing
Price :
$710~1352/square meters
Certification :
CE FCC RoHS
MOQ :
>=1 square meters
Payment Terms :
T/T
Delivery Time :
7-35 work days
Type :
LED
Color :
full color
Media Available :
datasheet, Photo
Specification :
Video Wall
Color Scale :
14bit
Lifespan (hours) :
≥100000H
IP Rating :
Front IP65 and rear IP54
Refresh rate :
1920HZ/3840HZ
Material :
Die-casting Aluminum
Installation :
ixed installation / hoisting / Build on standing structure
Description

Outdoor 500*500 Waterproof Die Casting Aluminum Rental LED display screen high brightness

Detailed product introduction document:Outdoor rental screen RS-A series (soft connection...

Applicable scenarios:

1. stage performance

2. new product presentation

3. Advertising activities

4. training and airport

5. banquet activities

Features:

1. High definition display with ideal enjoyment: 16Bits high grayscale and more than 1920Hz refresh rate enable no flicker during live streaming signal switch;

2. Ultra-thin cabinet, the whole cabinet is made of aluminum alloy or magnesium alloy material, Faster and easier installation

3. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.

4. Convenient Mix & Match: The H500/H1000 module is universal,can splice and display in diversity.

5. Perfect enjoyment of high-definition display: 16Bits high grayscale, high refresh rate above 1920, no flicker during live switching;

6. It delivers an image which is super subtle and without getting tired after a longtime watching

Product Details

Models:RS-A

Rental LED display screen (RS-A series)
Models RS-A 2.604 RS-A 2.976 RS-A 3.91 RS-A 4.81
Pixel Pitch (mm) 2.604 2.976 3.91 4.81
Module size (mm) 250x250 250x250 250x250 250x250
Module pixel 96x96 84x84 64x64 52x52

Pixel Density

(dot/㎡)

 147456 112896 65536 43264
LED Lamp Type SMD1415 SMD1415 SMD1921 SMD1921
Brightness (cd/㎡) 4000 4500 4500 4500
Refresh rate (Hz) 1920/3840 1920/3840 1920/3840 1920/3840
Scan Mode 1/24 Scan 1/21 Scan 1/16 Scan 1/13 Scan
Module thickness (mm) 15 15 15 15
Cabinet size (mm) 500x500/500x1000 500x500/500x1000 500x500/500x1000 500x500/500x1000
Cabinet pixel 192x192/192x384 168x168/168x336 128X128/128X256 104X104/104X208
Module+Cabinet thickness (mm) 15+75=90 15+75=90 15+75=90 15+75=90
Lifespan (hours) ≥ 100,000 hours
LED Composition RGB three-in-one
Grey scale 14bit

Maximum power

(W/㎡)

 800W
Conventional power (W/㎡) 600W
Control System Nova / Colorlight System / Magnimade System / Mooncell System
Signal Connection WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system
the protection grades IP30
Eliminate Shadows Equipment
input voltage AC100～240V 50/60HZ
Module input voltage DC4.7～5V±0.2V
Working temperature and humidity Temperature: -10～40℃ Humidity: 10％-90％
Weight (kg) 7.5kg(500x500 ) /16kg(500x1000 )
Cabinet material Die casting aluminum
Maintenance rear maintenance
Installation hoisting/fixed installation/Build on standing structure

Application:
