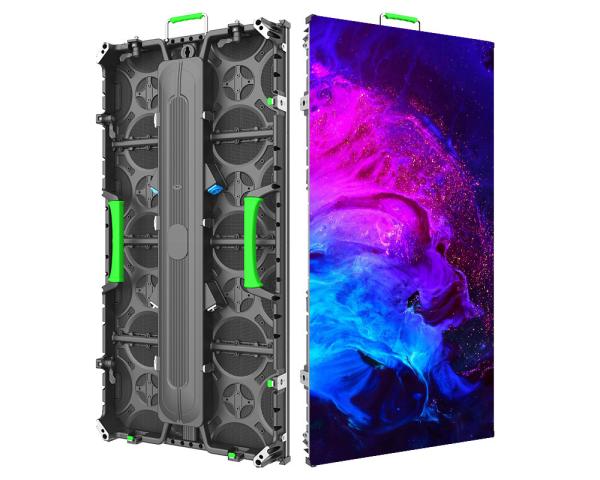

IP30 Rental LED Display Screen Panel Lightweight Full Color Indoor LED Display
IP30 Rental LED Display Screen Panel Lightweight Full Color Indoor LED Display
IP30 Rental LED Display Screen Panel Lightweight Full Color Indoor LED Display
IP30 Rental LED Display Screen Panel Lightweight Full Color Indoor LED Display
Specifications
Model Number :
RS-A
Brand Name :
Highmight
Place of Origin :
Guangdong, China
Certification :
CE FCC RoHS
MOQ :
>=1 square meters
Price :
$617~1000/square meters
Payment Terms :
T/T
Delivery Time :
7-35 work days
Packaging Details :
Flight case/wooden case/carton case packing
Usage :
Rental LED Display Screen Indoor
Type :
LED
Weight :
7.5KG
Lifespan (hours) :
≥100000H
IP Rating :
IP30
Material :
Die-casting Aluminum
Description

Rental LED display screens RS-A 500*500 indoor high precision lightweight design rental pannel

Detailed product introduction document:Indoor rental screen RS-A series (soft connection)...

Applicable scenarios:

1. stage performance

2. new product presentation

3. Advertising activities

4. training and airport

5. Bars and KTV rooms

6.Suitable for stage performance

7.Commercial activity
8.Cultural tourism

Features:

1. High definition display with ideal enjoyment: 20Bits high grayscale and more than 1920Hz refresh rate enable no flicker during live streaming signal switch;

2. Ultra-thin cabinet, the whole cabinet is made of aluminum alloy or magnesium alloy material, Faster and easier installation

3. Support arc splicing: the arc lock can be customized, supports multi-angle installation and seamless splicing between spliced ​​boxes;

4. Convenient Mix & Match: The H500/H1000 module is universal,can splice and display in diversity.

5. Perfect enjoyment of high-definition display: 16Bits high grayscale, high refresh rate above 1920, no flicker during live switching;

Product Details

Models: RS-A

Rental LED display screen (RS-A series)
Models RS-A 2.604 RS-A 2.976 RS-A 3.91 RS-A 4.81
Pixel Pitch (mm) 2.604 2.976 3.91 4.81
Module size (mm) 250x250 250x250 250x250 250x250
Module pixel 96x96 84x84 64x64 52x52

Pixel Density

(dot/㎡)

 147456 112896 65536 43264
LED Lamp Type SMD1415 SMD1415 SMD1921 SMD1921
Brightness (cd/㎡) 800 800 800 800
Refresh rate (Hz) 3840 3840 3840 3840
Scan Mode 1/24 Scan 1/21 Scan 1/16 Scan 1/13 Scan
Module thickness (mm) 16 16 16 16
Cabinet size (mm) 500x500/500x1000 500x500/500x1000 500x500/500x1000 500x500/500x1000
Cabinet pixel 192x192/192x384 168x168/168x336 128X128/128X256 104X104/104X208
Module+Cabinet thickness (mm) 15+75=90 15+75=90 15+75=90 15+75=90
Lifespan (hours) ≥ 100,000 hours
LED Composition RGB three-in-one
Grey scale 20bit

Maximum power

(W/㎡)

 800W
Conventional power (W/㎡) 600W
Control System Nova / Colorlight System / Magnimade System / Mooncell System
Signal Connection WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system
the protection grades IP30
Eliminate Shadows Equipment
input voltage AC100～240V 50/60HZ
Module input voltage DC4.7～5V±0.2V
Working temperature and humidity Temperature:-10～40℃ Humidity:10％-90％
Weight (kg) 7.5kg(500x500 ) /16kg(500x1000 )
Cabinet material Die casting aluminum
Maintenance rear maintenance
Installation hoisting/fixed installation/Build on standing structure

Application:

IP30 Rental LED Display Screen Panel Lightweight Full Color Indoor LED DisplayIP30 Rental LED Display Screen Panel Lightweight Full Color Indoor LED Display

FAQ:

Q1 : What is the control system?

A : Our company uses Nova / Colorlight System / Magnimade System / Mooncell System

Q2 : What is the maintenance method for the product

A : front and rear maintenance

Q3 : Can I have a sample order for led screen?

A : Yes, we welcome sample order to test and check quality.
