Flexible customization and quick installation of LED soft modules SR-A series
Flexible customization and quick installation of LED soft modules SR-A series
Flexible customization and quick installation of LED soft modules SR-A series
Flexible customization and quick installation of LED soft modules SR-A series
Flexible customization and quick installation of LED soft modules SR-A series
Flexible customization and quick installation of LED soft modules SR-A series
Specifications
Brand Name :
Highmight
Model Number :
SR-A
Certification :
CE FCC RoHS
Place of Origin :
Guangdong, China
MOQ :
>=1 square meters
Price :
Customized price
Payment Terms :
T/T
Delivery Time :
7-35 work days
Packaging Details :
Flight case/wooden case/carton case packing
Color :
Full Color
Application :
Live Events Led Display,Outdoor Advertising Led,Adervertising,Outdoor,Indoor Stage
Service life :
≥100,000 hours
Pixel composition :
RGB 3-in-1
Maximum power (W/㎡) :
1000-1200W
Screen dimension :
Customized
Eliminate ghostinge :
Equipment
Life span :
100000 Hours
Refresh rate :
1920/3840Hz
Installation :
Magnetic suction/box installation
Description

Flexible customization and quick installation of LED soft modules SR-A series

Detailed product introduction document:PH2.5-PH4 Indoor Soft Module SR-A Series.pdf

Product Description:

Soft modules are usually made of lightweight materials with a thin overall thickness. This design not only reduces the weight of the product, but also facilitates transportation and installation. The thin and light characteristics make it flexible for use in space-constrained environments, such as some high-end places that need to maintain a low-profile appearance.

Product Parameters:

LED Indoor Soft Module SR-A Series (PH2.5-PH4)
Module model (mm) SR-A 2.5 SR-A 3 SR-A 4
Module point spacing (mm) 2.5 3.076 4
Module Size (mm) 320x160 320x160 320x160
Module pixel 128x64 104x52 80x40
Density pixels (dot/㎡) 160000 105625 62500
Lamp bead model SMD1515 SMD2020 SMD2020
Brightness (cd/㎡) ≤800 ≤800 ≤800
Refresh rate (Hz) 3840 3840 3840
Scanning mode 1/32sweep 1/26sweep 1/20sweep
Module weight (kg) 16.5 16.5 16.5
Module thickness (mm) 10 10 10
Service life ≥100,000 hours
Pixel composition RGB 3-in-1
Grayscale 14bit
Maximum power (W/㎡) 1000-1200W
Average power (W/㎡) 400-600W
Eliminate ghosting Equipment
input voltage AC100～240V 50/60HZ
Module input voltage DC4.7～5V±0.2V
Environment Temperature -10～40℃ Humidity 10％-90％
Installation Magnetic suction/box installation

Product Advantages:

1.Easy maintenance: modular replacement is simple and fast.
2.Wide application: suitable for advertising, stage, exhibition, etc.
3.Intelligent control: supports remote and real-time monitoring.
4.High refresh rate: the display screen is smooth and natural.
5.Rich colors: provides realistic color performance.

Product Areas:

1.Advertising Media.

2.Exhibition Display.

3.Commercial Display.

4.Government and Enterprise Image.

5.Cultural Tourism Real Estate.

6.Entertainment Culture.

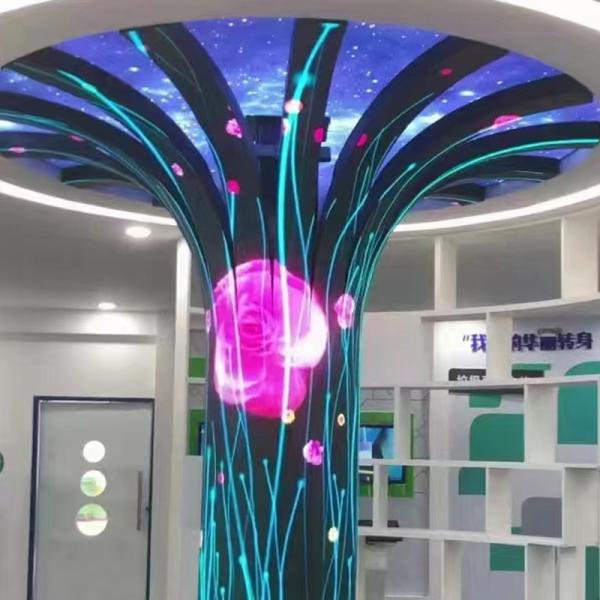

Product Cases:

Flexible customization and quick installation of LED soft modules SR-A seriesFlexible customization and quick installation of LED soft modules SR-A series

FAQ:

Q1: Is it difficult to install?
A1: The soft module adopts modular design, which is easy to install and only requires simple splicing and fixing.
Q2: Can it be used outdoors?
A2: Yes, many LED soft modules are waterproof and dustproof, suitable for outdoor use.
Q3: Can the size be customized?
A3: Display screens of different sizes and shapes can be customized according to customer needs.
