V PH3 Fixed Indoor LED Display Screen 192mmx192mm Video Wall LED Screen
V PH3 Fixed Indoor LED Display Screen 192mmx192mm Video Wall LED Screen
V PH3 Fixed Indoor LED Display Screen 192mmx192mm Video Wall LED Screen
V PH3 Fixed Indoor LED Display Screen 192mmx192mm Video Wall LED Screen
Specifications
Place of Origin :
Guangdong, China
Model Number :
V PH3
Brand Name :
Highmight
Packaging Details :
Flight case/wooden case/carton case packing
Price :
$380.00/square meters >=1 square meters
Certification :
CE FCC RoHS
MOQ :
>=1 square meters
Payment Terms :
Western Union
Delivery Time :
7-35 work days
Name :
P3 Indoor LED Display Screen
Color :
FULL COLOR
Panel Size :
192mmx192mm
Pixel Pitch :
3mm
Specification :
Video Wall
Brightness :
500-800 cd/㎡
Type :
LED
pixel density :
111111 dot/㎡
Lifespan (hours) :
≥100000H
HS Code :
8528591090
Resolution :
64x64
Refresh rate :
1920HZ/3840HZ
Weight :
30kg/㎡
LED chip :
SMD2020
Description

V PH3 192mmx192mm Indoor Full Color Led Video Wall Screen High Brightness LED display screen

Detailed product introduction document:PH3 (V Series Module).pdf

Applicable scenarios:

1.Advertising Media,
2.Live broadcast on TV,

3.Cultural tourism

4.LIVE House

5.Network video conferencing,
6.Schools and educational institutions

Features:

1. high refresh and high gray scale

2. Support graphics correction technology to ensure consistency of brightness, grayscale, and chroma;

3. Supports multiple combinations of unit modules + chassis to meet various complex needs of project scenarios;

4. Self-made kit mold, with good flatness, no deformation, strong oxidation resistance, and more stable use;

5. More flexible installation and more convenient maintenance.

Product Details

Models: V PH3

Pixel Pitch (mm) 3 Refresh Rate (HZ) 1920/3840
Module Size (mm) 192x192 Contrast Ratio ≥5000:1
Module Pixel 64x64 Conventional Power (W/㎡) 400-600W
Pixel Density (dot/㎡) 111111 Gray Scale 16bit
Lamp Type SMD1515/SMD2121 LED Composition RGB three in one
Brightness (cd/㎡) 500-800 protection level IP65
Scan Mode 1/32Scan Eliminate Shadows Equipment
Module Thickness (mm) 13 Input Voltage AC100～240V 50/60HZ
Cabinet Size (mm) 640x480 Module Input Voltage DC4.7～5V±0.2V
Cabinet Pixel 416x312 Cabinet Weight 30kg
Cabinet Thickness (mm) 32.5 Cabinet Material Sheet Metal
Lifespan (Hours) ≥100,000H Maintenance front/rear maintenance
Working Temperature and Humidity Temperature:-10～40℃ Humidity:10％-90％ Installation fixed installation
Signal Connection WiFi / DVI / HDMI / DP / USB / RJ45 network cable / remote control system Control System Nova / Colorlight System / Magnimade System / Mooncell System

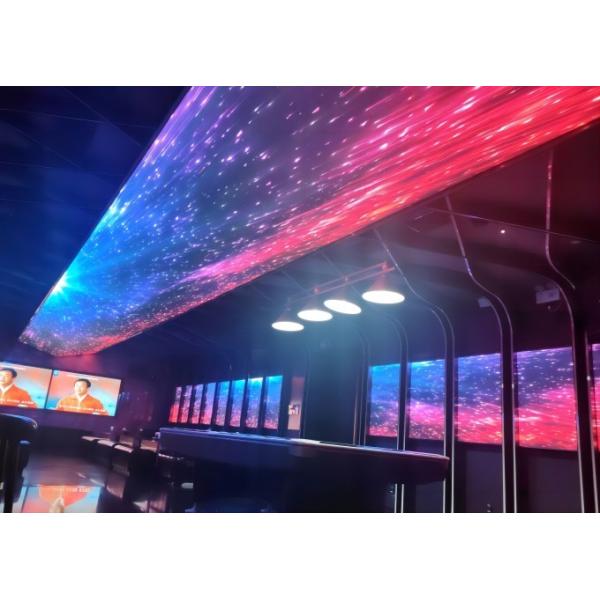

Application:

V PH3 Fixed Indoor LED Display Screen 192mmx192mm Video Wall LED ScreenV PH3 Fixed Indoor LED Display Screen 192mmx192mm Video Wall LED Screen
