Long Distance Loader Unloader Use For Customized Assembly Line Woodboard Foam Ceramic, Curved Auto Bales Stone Slabs Or Aluminum Plate
Long Distance Loader Unloader Use For Customized Assembly Line Woodboard Foam Ceramic, Curved Auto Bales Stone Slabs Or Aluminum Plate
Specifications
Brand Name :
Ledrobit
Certification :
CE
Place of Origin :
China
Delivery Time :
15 workdays
Description

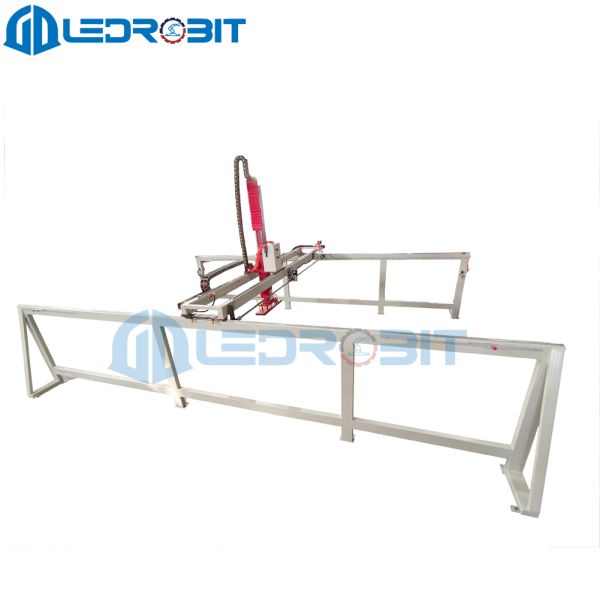

Long-Distance Loader Unloader | Servo-Driven, Multi-Axis Robot for Extended Transfer of Foam-Ceramic Slabs, Auto Bales, Stone, Metal & Wood
When your press, cutter or curing area is on the far side of the plant, our Long-Distance Loader Unloader bridges the gap. It automatically picks, transports and palletizes bulky items—foam-ceramic boards, end-of-life car bales, stone slabs, steel sheets, aluminum plates, cement boards or plywood—over spans up to 30 m without forklifts or cranes.
Key Points
  • Extended travel – single-piece rail from 3 m to 30 m; splice kits allow unlimited extension as your line grows.
  • Multi-product grip – quick-change vacuum, mechanical or magnetic head handles porous foam-ceramic, curved auto bales, smooth stone or thin aluminum in the same shift.
  • Auto ID & sorting – built-in laser or vision sensor measures length, width and height, then routes each item to the correct pallet or conveyor lane.
  • Multi-axis motion – standard 3-axis (X-Y-Z) plus optional rotation/tilt; program flat, on-edge or standing placement.
  • Servo precision – rack-and-pinion drive with absolute encoder gives smooth travel and ±1 mm repeatability over the full distance.
  • 300 kg+ capacity – rated at 300 kg; heavier loads available on request by upgrading motor and rail section.
  • Harsh-air reliability – IP54 cabinet, sealed servo motors and anti-corrosion paint perform in high dust and humidity.
  • Simple operation – 7-inch LCD touch screen with graphical icons; no PLC knowledge required.
  • Low-cost upkeep – central grease points, easily accessible cable chain and off-the-shelf bearings keep service quick and inexpensive.
Plug-and-Play Integration
Same floor height as most presses, cutters, polishers and packaging lines. Connect dry-contact or Ethernet signals for automatic hand-shake; safety light curtains and guarding included.
How to Proceed
Send item size, weight and travel distance. We’ll return a dimensioned drawing and turnkey quotation within 24 hours.
