Ultra Thin Soft Ribbon Rubber Flexible Led Curtain Display With Any Shape / Size
Ultra Thin Soft Ribbon Rubber Flexible Led Curtain Display With Any Shape / Size
Ultra Thin Soft Ribbon Rubber Flexible Led Curtain Display With Any Shape / Size
Ultra Thin Soft Ribbon Rubber Flexible Led Curtain Display With Any Shape / Size
Ultra Thin Soft Ribbon Rubber Flexible Led Curtain Display With Any Shape / Size
Ultra Thin Soft Ribbon Rubber Flexible Led Curtain Display With Any Shape / Size
Specifications
Brand Name :
Bakovision
Model Number :
BS Series
Certification :
CE ETL FCC CCC
Place of Origin :
China
MOQ :
1pc
Price :
$20/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000 sqm/month
Delivery Time :
15 days
Packaging Details :
Wooden case or flight case
Physical Pitch :
2/2.5/3/4 mm
LEDs :
SMD2121
Expected Lifetime :
100,000Hrs
Driving Method :
1/8
Servicing :
Front
Viewing Angle :
160°/140°
Refresh Rate :
＞1920Hz
Brightness :
＞1500nits
Description

Ultra Thin Soft Ribbon Rubber Flexible LED Display for any Shape and Size

Specification:

Physical Pitch 2.5mm 3mm 4mm 6.66mm
Pixel Configuration SMD2121 SMD2121 SMD2121 SMD3528
Pixel Density 160,000 pixels/Sqm 111,111 pixels/Sqm 62,500 pixels/Sqm 22,545 pixels/Sqm
Module Dimensions(W x H) (mm) 240 x 120 240 x 120 240 x 120 320 x 160
Panel Dimensions (mm) Custmized Custmized Custmized Custmized
Physical Resolution of Module (W x H) 96 x 48 80 x 40 60 x 30 48 x 24
Weight 8.2 kg/Sqm 8.2 kg/Sqm 8.2 kg/Sqm 8.2 kg/Sqm
Processing 16bit 16bit 16bit 16bit
Colours 281 trillion 281 trillion 281 trillion 281 trillion
Contrast Ratio 4,000 : 1 4,000 : 1 4,000 : 1 2,000 : 1
Average Power Consumption 9W 10W 10W 10W
Max Power Consumption 12W 13W 13W 13W
Brightness ＞1,000nits ＞1,000nits ＞1,500nits ＞1,500nits
Refresh Rate ＞1,920 Hz ＞1,920 Hz ＞1,920 Hz ＞1,920 Hz
Driving Method 1/40 1/40 1/8 1/8
Horizontal Viewing Angle 160° 160° 160° 160°
Vertical Viewing Angle 140° 140° 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front Front Front Front
IP Rating (Front/Rear) IP 40 IP 40 IP 40 IP 40
Certification CCC, CE, RoHS CCC, CE, RoHS CCC, CE, RoHS CCC, CE, RoHS
Operating Temp/Humidity -20℃ - 60℃ / 10℃ - 90℃ -20℃ - 60℃ / 10℃ - 90℃ -20℃ - 60℃ / 10℃ - 90℃ -20℃ - 60℃ / 10℃ - 90℃
Storage Temp/Humidity -40℃ - 80℃ / 10℃ - 90℃ -40℃ - 80℃ / 10℃ - 90℃ -40℃ - 80℃ / 10℃ - 90℃ -40℃ - 80℃ / 10℃ - 90℃

Features

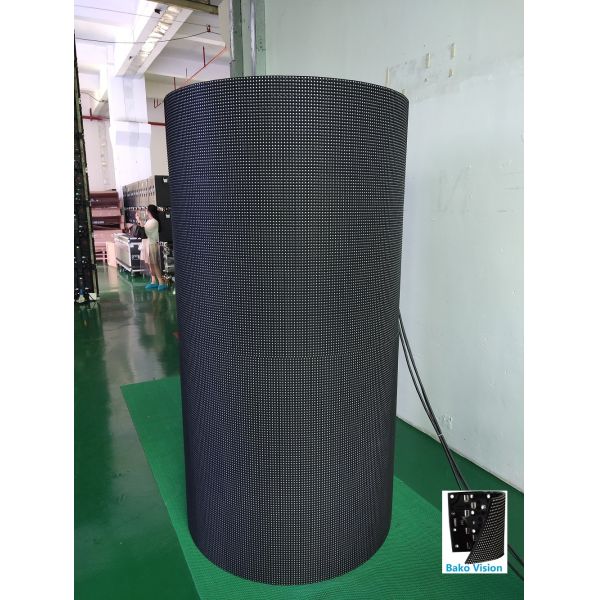

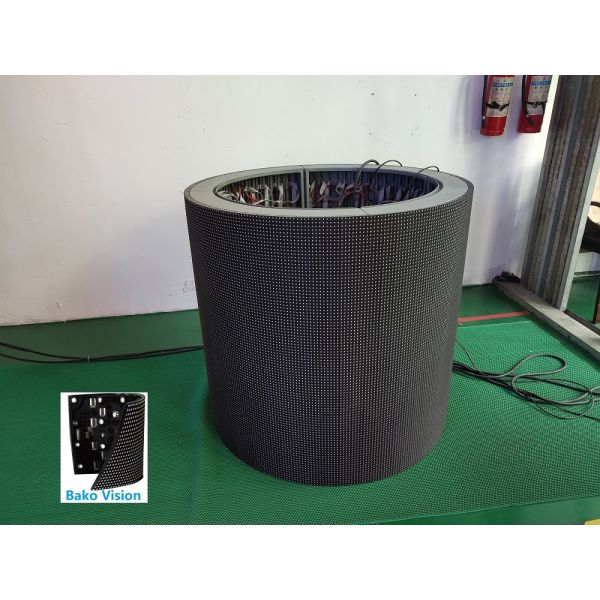

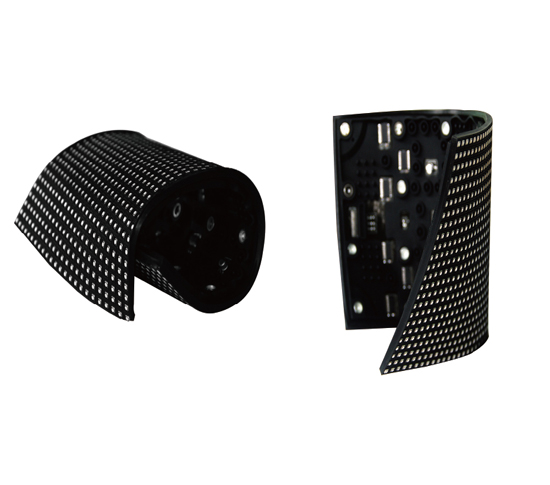

1. Durable soft rubber module for any creative shape and size. Convex, concave and twisted available.

Ultra Thin Soft Ribbon Rubber Flexible Led Curtain Display With Any Shape / Size

2. Ultra thin and lightweight. Only 0.18kg per module, 5mm thickness, saving space, shipping cost and installation cost.

Ultra Thin Soft Ribbon Rubber Flexible Led Curtain Display With Any Shape / Size

3. Creative and customized installation forms.

Ultra Thin Soft Ribbon Rubber Flexible Led Curtain Display With Any Shape / Size

4. Integrated SMD, IC, Circuit for easy maintenance and heat dissipation.

About us

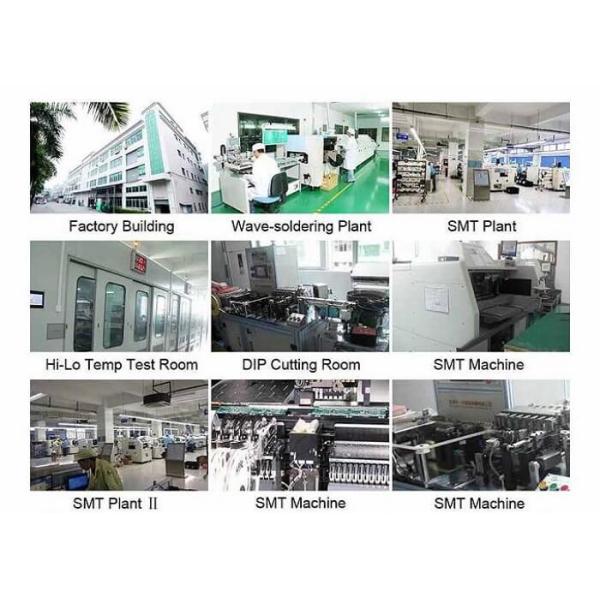

LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

Ultra Thin Soft Ribbon Rubber Flexible Led Curtain Display With Any Shape / Size

Ultra Thin Soft Ribbon Rubber Flexible Led Curtain Display With Any Shape / Size

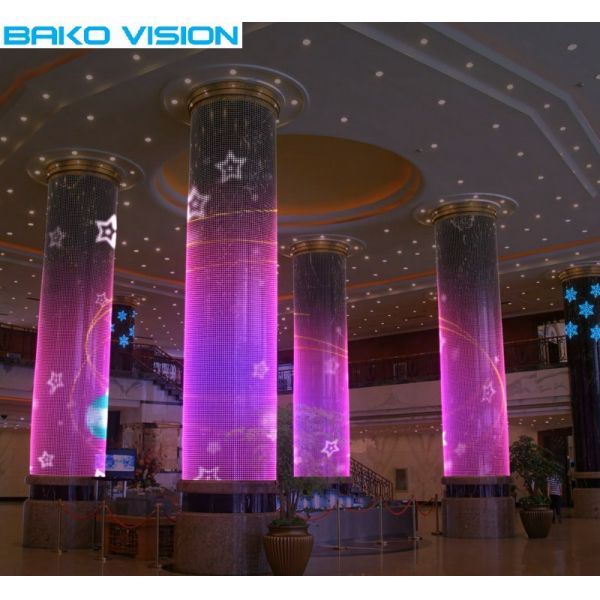

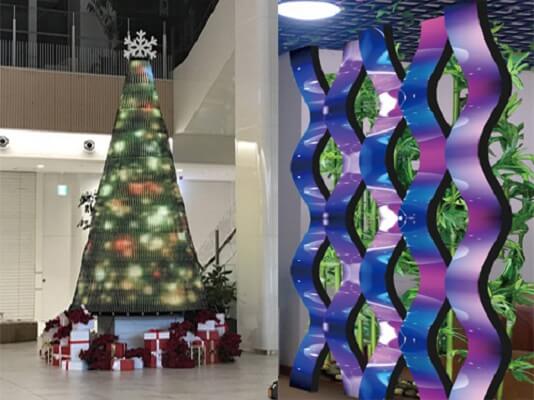

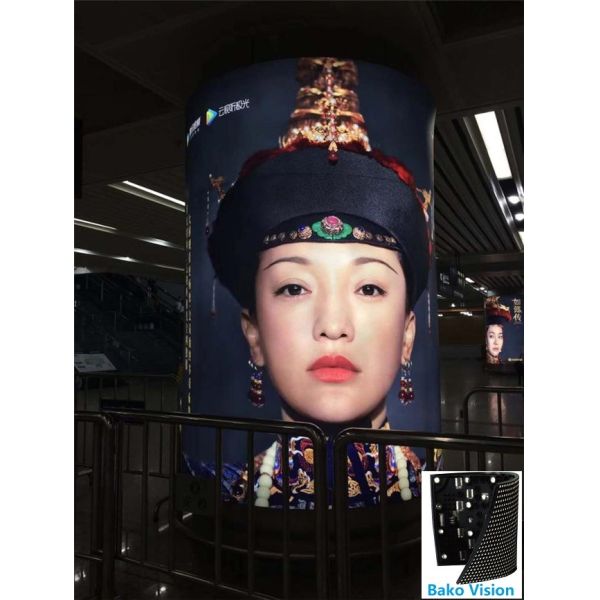

Case

Ultra Thin Soft Ribbon Rubber Flexible Led Curtain Display With Any Shape / Size

Why choose us?

1. Superior quality

We are the professional manufacturer of led display. All of our products are guaranteed quality. All our products are made of branded wicks and have undergone strict quality testing. We hope we can establish long-term business relations with our customers.

2. Attractive design

Our company are equipped with professional R&D department. We can provide customized design for our customers. We will also offer a most reasonable and scientific solution for our customers.

3. Professional consulting services

Our company has technical personnel who are specially responsible for customer service, who will provide product maintenance, product use and technical consultation for you at any time.

4. Perfect after-sales services

  • 2 years free maintenance.
  • 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers.
  • Free training for customers in factory.
  • Local partner installation service.
