Specifications
Brand Name :
Bako Vision
Model Number :
Front Service LED Billboard
Certification :
CE
Place of Origin :
China
MOQ :
1 Square Meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000sqm/ Month
Delivery Time :
15~20 days
Packaging Details :
Plywood case / Flight Case
Panel Size :
1280 x 1280mm or customized
Pixel Pitch :
4mm, 5mm, 6mm, 8mm, 10mm
Maintenance :
Full front access
Material :
Steel / Aluminum
Control :
On line or off line
Installation :
Wall mounting / Pillar standing
Description

Front Service Outdoor LED Display Flip Front Open Panel Wall Mounted Billboard

Description:

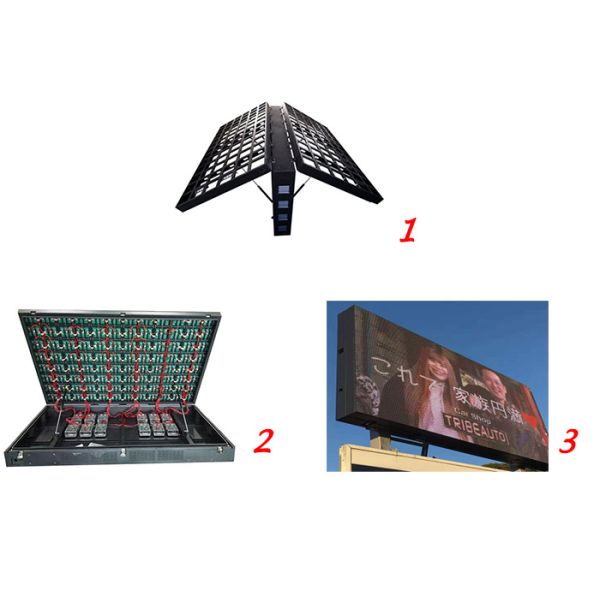

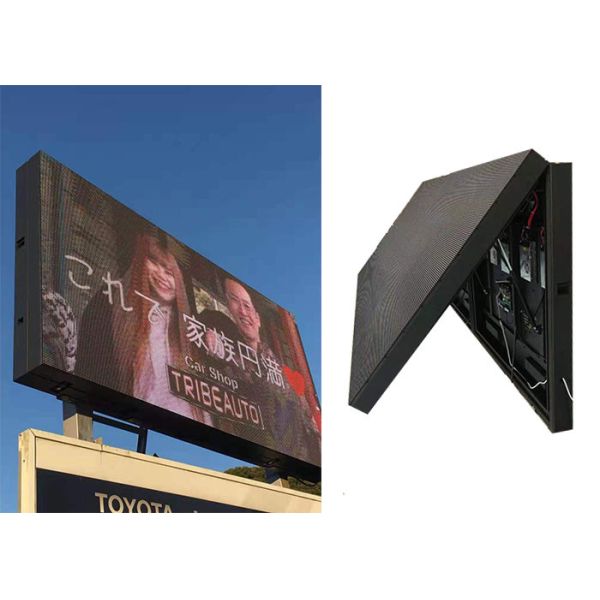

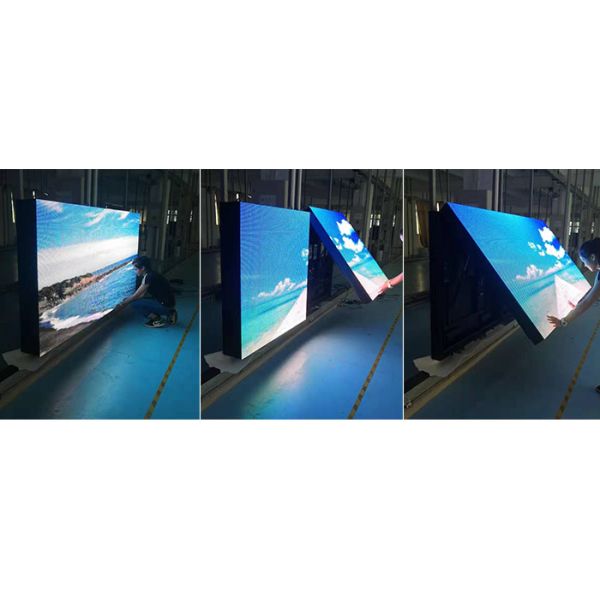

1. Flip front open cabinet, no need to reserve maintenance space

2. IP65 Front & Back

3. Hydraulic support structure for easy maintenance

4. Available Pitch : 3mm, 4mm, 6mm, 8mm, 10mm

Parameters:

Physical Pitch 4mm 5mm 6.67mm 8mm
Pixel Configuration SMD 1818 SMD 2727 SMD 2727 SMD 2727
Pixel Density 62,500 pixels/m² 40,000 pixels/m² 22,376 pixels/m² 15,625 pixels/m²
Module Dimensions (W × H) (mm) 320 × 160 320 × 160 320 × 160 320 × 160
Panel Dimensions (mm)
NO.of Modules Per Panel (W × H) 3 × 6 3 × 6 3 × 6 3 × 6
Physical Resolution of Module (W × H) 80 × 40 64 × 32 48 × 24 40 × 20
Physical Resolution of Panel (W × H) 240 × 240 192 × 192 144 × 144 120 × 120
Panel Material Steel / Aluminum Steel / Aluminum Steel / Aluminum Steel / Aluminum
Weight (m²) 65 / 45kg 65 / 45kg 65 / 45kg 65 / 45kg
Gray Scale 16 bit 16 bit 16 bit 16 bit
Colours 281 trillion 281 trillion 281 trillion 281 trillion
Contrast Ratio 2,000 : 1 2,000 : 1 2,000 : 1 2,000 : 1
Average Power Consumption 360 W/m² 360 W/m² 360 W/m² 360 W/m²
Max Power Consumption 900 W/m² 900 W/m² 900 W/m² 900 W/m²
Brightness >6,500 nits >6,500 nits >6,500 nits >6,500 nits
Refresh Rate >1,920 Hz >1,920 Hz >1,920 Hz >1,920 Hz
Viewing Angle 160°(V)140°(H) 160°(V)140°(H) 160°(V)140°(H) 160°(V)140°(H)
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front Front Front Front
IP Rating IP65 IP65 IP65 IP65
Operating Temp/Humidity -20℃- 50℃ / 10% - 90% -20℃- 50℃ / 10% - 90% -20℃- 50℃ / 10% - 90% -20℃- 50℃ / 10% - 90%
Storage Temp/Humidity -20℃-50℃ / 10% - 90% -20℃-50℃ / 10% - 90% -20℃-50℃ / 10% - 90% -20℃-50℃ / 10% - 90%
Scan Method 1/16 Scan 1/16 Scan 1/16 Scan 1/16 Scan

Outdoor Front Service LED Display Flip Front Open Panel Wall Mounted Billboard

Outdoor Front Service LED Display Flip Front Open Panel Wall Mounted Billboard

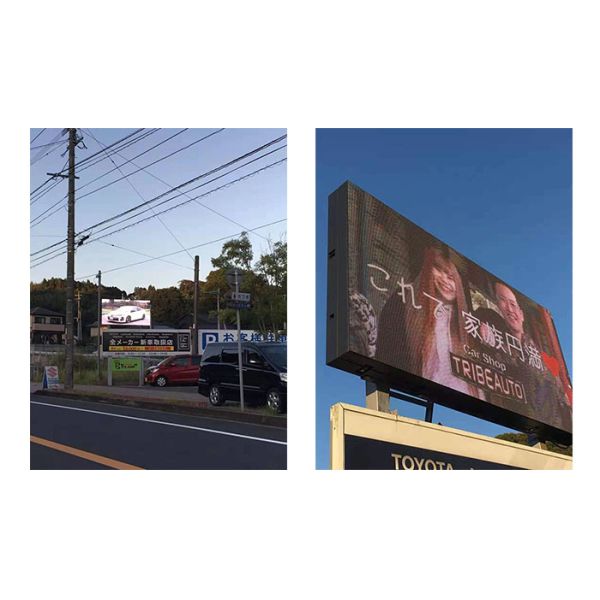

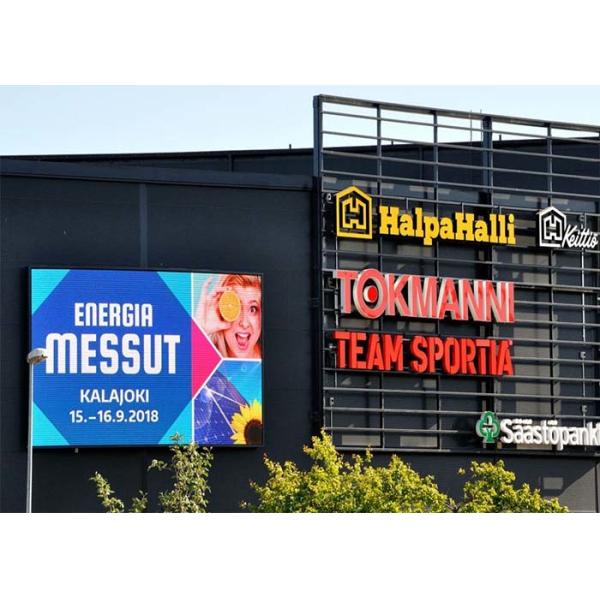

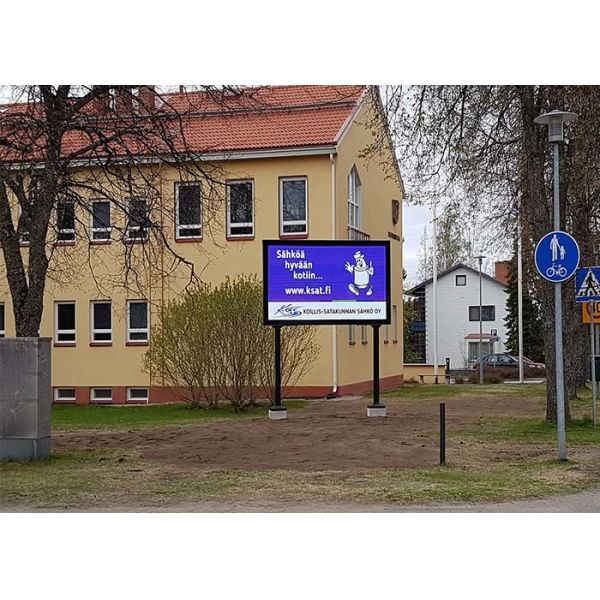

Project Reference:

Outdoor Front Service LED Display Flip Front Open Panel Wall Mounted Billboard

LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.

Outdoor Front Service LED Display Flip Front Open Panel Wall Mounted Billboard
