Full Color P3.91mm LED Advertising Display Waterproof Outdoor Rental
Full Color P3.91mm LED Advertising Display Waterproof Outdoor Rental
Full Color P3.91mm LED Advertising Display Waterproof Outdoor Rental
Full Color P3.91mm LED Advertising Display Waterproof Outdoor Rental
Full Color P3.91mm LED Advertising Display Waterproof Outdoor Rental
Full Color P3.91mm LED Advertising Display Waterproof Outdoor Rental
Full Color P3.91mm LED Advertising Display Waterproof Outdoor Rental
Full Color P3.91mm LED Advertising Display Waterproof Outdoor Rental
Specifications
Brand Name :
Bako Vision
Model Number :
BOR
Certification :
CE,ROHS,UL,FCC
Place of Origin :
China
MOQ :
1 SQM
Price :
negotiable price
Payment Terms :
L/C, T/T
Supply Ability :
6000 sqm/month
Delivery Time :
25-35days
Packaging Details :
flight case/plywood case
Usage :
Outdoor
Pixels :
3.91mm
Screen dimension :
Customized
Tube chip color :
Full Color
Display function :
Video
Brightness :
>5000nits
Warranty :
2 Years
Life span :
≥100000 hours
Application :
Outdoor Advertising Led
Cabinet size :
500*500
Color :
Full-color
Pixel density :
65536
Refresh rate :
1920Hz
Cabinet weight :
9kg
Description

Full Color P3.91mm LED Advertising Display Waterproof Outdoor Rental

Die-Casting Outdoor Event Rental LED Screen


Product Features

1.High Definition,wonderful visual performance.

2.High brightness ensures the spectators far from the screen can still enjoy what is shown, even under direct sunlight.

3. High resolution could guarantee superior performance even with small screen size.

4.High refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.

5. Super wide viewing angle can be visible in most corners, give you visual enjoyment.

6.SMD technology could guarantee higher flatness and better performance.

7. Aviation plug and quick lock is used, bringing easier cables connection and quicker assembly of cabinets to save time.

8. Low power consumption and fast heat dissipation with dual channel heat dissipation

9. Support a series of detection functions, for example detection of cables failure, detection whether the door of cabinets closed or not, fans` speed monitoring, three-way voltage monitoring and temperature monitoring etc.

Specification

BOR-I-3 BOR-I-4 BOR-I-5 BOR-I-6
Physical Pitch 3.91mm 4.81mm 5.95mm 6.25mm
Pixel Configutation SMD1921 SMD2525 SMD2525 SMD2727
Pixel Density 65,536 pixels/sqm 43,264 pixels/sqm 28,224 pixels/sqm 25,600 pixels/sqm
Module Dimention (W*H)(mm) 250*250/250*500 250*250/250*500 250*250/250*500 250*250/250*500
Panel Dimention(mm) 500*500*80/500*1000*80 500*500*80/500*1000*80 500*500*80/500*1000*80 500*500*80/500*1000*80
Physical Resolution of Module(W*H) 64*64/64*128 52*52/52*104 42*42/42*84 40*40/40*80
Physical Resolution of Panel(W*H) 128*128/128*256 104*104/104*208 84*84/84*168 80*80/80*160
Panel Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Single Cabinet Weight 9/15 kg/panel 9/15 kg/panel 9/15 kg/panel 9/15 kg/panel
Processing 16 bit 16 bit 16 bit 16 bit
Contrast Ratio 4,000:1 4,000:1 4,000:1 4,000:1
Average Power Consumption 75/150 W/panel 75/150 W/panel 75/150 W/panel 75/150 W/panel
Max Power Consumption 225/550 W/panel 225/550 W/panel 225/550 W/panel 225/550 W/panel
Brightness > 6,000nits > 6,000nits > 6,000nits > 6,000nits
Refresh Rate > 1,920Hz > 1,920Hz > 1,920Hz > 1,920Hz
Vertical Viewing Angle 140° 140° 140° 140°
Horizontal Viewing Angle 160° 160° 160° 160°
Servicing Front/Rear Front/Rear Front/Rear Front/Rear
IP Rating(Front/Rear) IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54



Awarded




Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
Optional of Front service and rear service
Front service module design, easy for maintenance
Silent operation
Excellent thermal management
Ultra slim and lightweight : 8kg per Cabinet Weight(500x500mm), 14kg per Cabinet Weight(500x1000mm), greatly saves transportation costs and labor costs
IP65(Front) and IP54(Back)



.

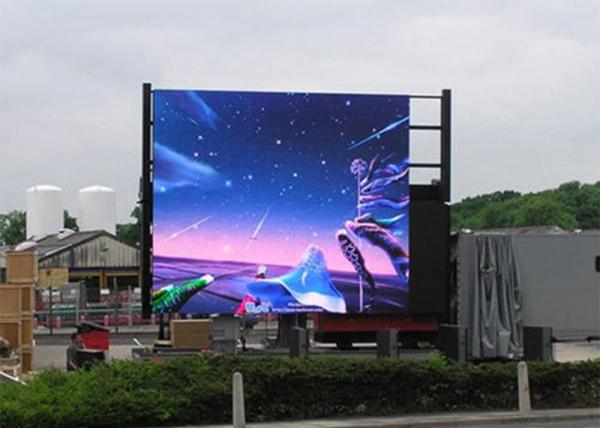

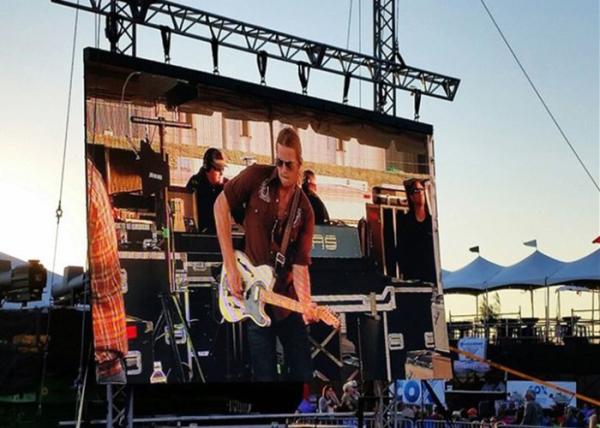

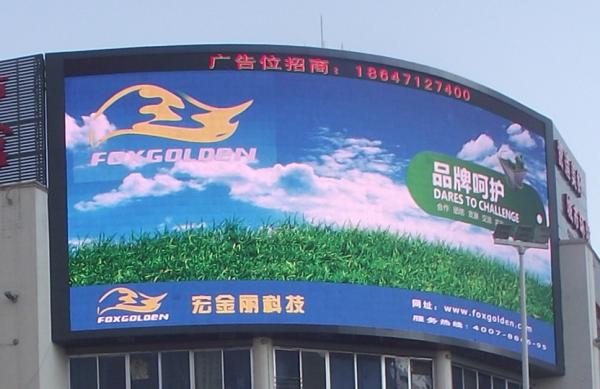

Case





Operation Disgram
