Specifications
Brand Name :
Bako Vision
Model Number :
China
Certification :
CCC,CE,ETL,FCC
Place of Origin :
BOR-I
MOQ :
Negotiation
Price :
$399~999
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 m²/month
Delivery Time :
15-20days
Packaging Details :
Flight Case/Wooden case
Pixel Pitch :
P3.91/P4.81/P5.95/P6.25mm
Leds :
Kinglight
Panel Material :
Die-Casting Aluminum
Controller :
Nova
Brightness :
>60,00 nits
Colours :
281 trillion
Description

Front IP40 Rear IP21 Outdoor Rental LED Display For Stage Events

High Brightness Waterproof Outdoor Stage Robust LED Display Screen for Rental Events

Full Color High Brightness Outdoor Rental Led Display Features

  1. Slim, light weight and quiet, easy to carry
  2. Deep black levels, contrast ratio 4000:1,The picture is clearer
  3. Operating temp/ humidity -20℃-60℃/ 10℃-60℃

Parameter

Physical Pitch 3.91mm 4.81mm 5.95mm
Pixel Configuration SMD1921 SMD2525 SMD2525
Pixel Density

65,536

pixels/m²

43,266

pixels/m²

28,224

pixels/m²

Physical Resolution of Module(W*H)(mm)

64*64/

64*128

52*52/

52*104

42*42/

42*84

Physical Resolution of Panel(W*H)(mm)

128*128/

128*256

104*104/

104*208

84*84/

84*168

Module Dimensions(W*H)(mm)

250*250/250*500

Panel Dimensions(mm) 500*500*80/500*1000*80
NO. of Modules Per Panel (W*H) 2*2
Panel Material Die-Casting Aluminum
Colors 281Trillion
Processing 16 Bit
Single Cabinet Weight 9/15kg/panel
Average Power Consumption 75/150W/panel
Refresh Rate >1,920 Hz
Brightness >60,00 nits
Viewing Angle H:160°/ V:140°
Expected Lifetime 100,000 Hrs
Servicing Front/Rear
IP Rating(Front/Rear) IP 40/IP21
Max Stacking 20/10
Max Hanging 20/10



Product details
Front IP40 Rear IP21 Outdoor Rental LED Display For Stage Events
Ultra light cabinet and have a great heat dissipation.


Front IP40 Rear IP21 Outdoor Rental LED Display For Stage Events
Front IP40 Rear IP21 Outdoor Rental LED Display For Stage Events
UI LCD monitoring display indicates the status.
Dual signal backup port.

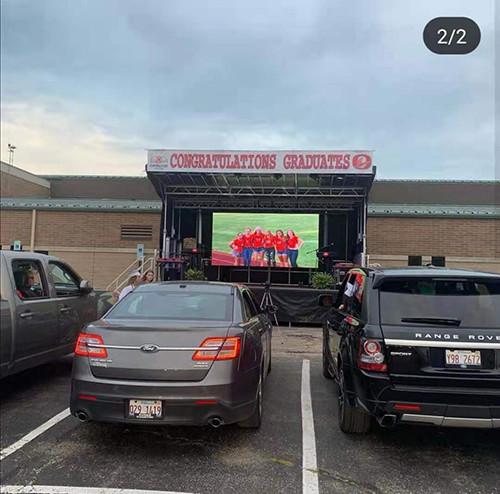

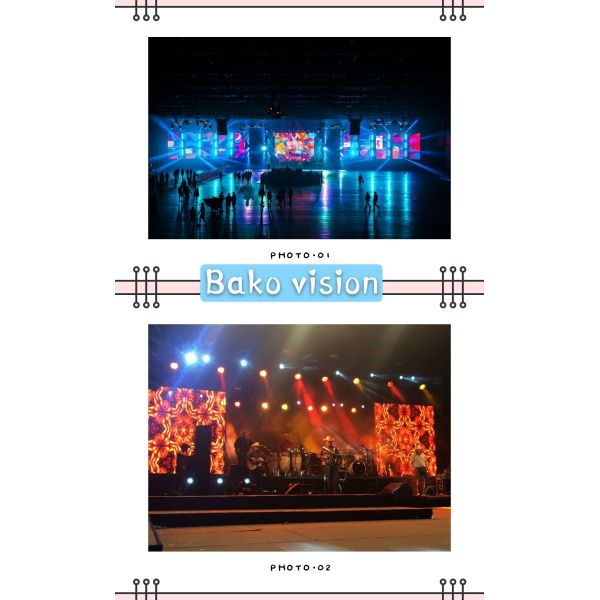

Case

Front IP40 Rear IP21 Outdoor Rental LED Display For Stage Events


Company
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.

After Sale Service

Pre-producing

  • Get complete requirements of clients.
  • To do a thorough analysis.
  • Offer a most reasonable and scientific solution.
  • Customized design.

In producing

  • Producing progress updating for clients
  • Particular Installation CAD and Design Diagram for clients.

After service

  • 2 years free maintenance
  • 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
  • Free training for customers in factory
  • Local Partner Installation Service
