Specifications
Brand Name :
Bakovision
Model Number :
BOF Series
Certification :
CE ETL FCC CCC
Place of Origin :
China
MOQ :
1 sqm
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000 sqm/month
Delivery Time :
15 days
Packaging Details :
Wooden case or flight case
Physical Pitch :
8mm
Pannel Material :
Steel/Aluminum
Servicing :
Front/Rear
Viewing Angle :
160°/140°
Refresh Rate :
>1920Hz
Contrast Ratio :
2000:1
Brightness :
>6500nits
IP Rating(Front/Rear) :
IP65/IP54
Description

P8 Outdoor Cloud control Advertising Billboard Led Screen Outdoor Wall mounted Display

Outdoor Fixed Billboard Features

* One standard chassis 960 x 960mm,covering pitches from 4 mm to 16 mm
* Deep black level ,contrast ratio 4000:1
* Steel Cabinet with Fan, Cooling system for hot weather
* Slim,about 100 mm thickness
* Suitable brightness,adjustable for outdoor day and night
* Fast lock system design guarantee a quick easy installation
* Front and rear access
* Outdoor rated, IP65 front

LED Billboard Specification:

Physical Pitch 8mm
Pixel Configuration SMD3535
Pixel Density 15,625 pixels/Sqm
Module Dimensions(W x H) (mm) 320 x 320
Panel Dimensions (mm) 960 x 960 x 150
NO. of Modules Per Panel (W x H) 3 x 3
Physical Resolution of Module (W x H) 40 x 40
Physical Resolution of Panel (W x H) 120 x 120
Panel Material Steal / Aluminum
Weight (kg/Sqm) 40
Processing 16bit
Colours 281 trillion
Contrast Ratio 2,000 : 1
Average Power Consumption 360 W / Sqm
Max Power Consumption 900 W / Sqm
Average Power After Energy Saving 90 W /Sqm
Max Power After Energy Saving 230 W /Sqm
Brightness >6,500 nits
Refresh Rate >1,920 Hz
Vertical Viewing Angle 160°
Horizontal Viewing Angle 140°
Expected Lifetime 100,000 Hrs
Servicing Rear
IP Rating (Front/Rear) IP 65
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity -20ºC - 50ºC / 10% - 90%
Scan Method 1/10 Scan

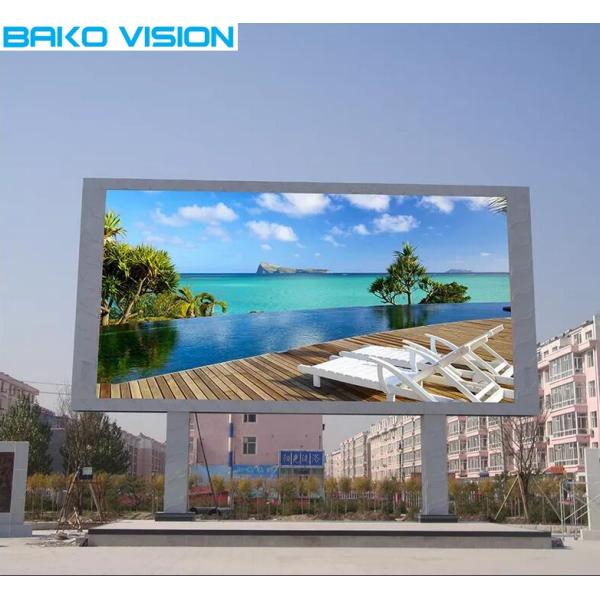

Wall Mounted Screen Case

P8 Outdoor Cloud Control Advertising Billboard Led Screen Outdoor Wall Mounted Display

FAQ

Q1: What's the warranty of your LED Display Screen ?

A1: We have a 2-year warranty for our led display screen, and 100,000 hours life span of the led lamps.

Q2: What about your pre-sale service and post-sale service?
A2: For pre-sale service: We have a professional sales team and a 12 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!

For post-sale service: We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.

Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!

Q3: Whats your payment term? How long it takes to delivery?

A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.

Our average Production time is 16 days, after receiving the deposit.

Q4: What's the control system?

A4: For synchronization control: We use Nova, Linsn Or Colorlight control system.

For asynchronous control: We use Onbon, or Xixun control system.

Q5: How can you ensure the led display product quality?

A5: Our led display screen quality is our core competence, for 14 years, what we rely on.

We have each stardard process to make quality products.

If any quality failures within warranty time, we will refund you by email.
