Specifications
Brand Name :
Bako Vision
Model Number :
BS
Certification :
CE ROHS UL CCC ETL
Place of Origin :
China
MOQ :
1 Pcs
Price :
usd 50 - 70 per pcs
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
6000m2/Month
Delivery Time :
25 days
Packaging Details :
Plywooden Case or Flight Case
Tube Chip Color :
Full Color
Pixel Pitch :
4 mm
Pixel Configuration :
1R 1G 1B
Scanning Mode :
1 / 40 Scan
IP Rating :
IP40
Transport Package :
Plywooden Case or Flight Case
Specification :
Customized
Module Size :
240 * 120
Module Resolution :
80 * 40
IC :
Mbi 5124
Description

Innovative Flexible LED Display Witth Soft Feature, Bendable and Light Weight17-BS-Tia.pdf


Innovative Flexible LED Display Witth Soft Feature, Bendable and Light Weight is widely used in speical shape stage background / exhibition / shopping center etc.

This Innovative flexible led display brings limitless possibility to designers and architects. It is a bendable, ultra-slim, light weight led technology that frees designers and architects to make their concepts stand out in unlimited installations, are perfect solution for constructing smart, creative LED display systems with the ability to adapt to structures.


Innovative Flexible LED Display Witth Soft Feature, Bendable and Light Weight​ Parameters

BS-2X BS-3 BS-4
Physical Pitch 2.5 mm 3 mm 4 mm
Pixel Configuration SMD 2121 SMD 2121 SMD 2121
Pixel Density 160,000 pixels/m² 111,111 pixels/m² 62,500 pixels/m²
Module Dimensions (W× H)(mm) 240 × 120 240 × 120 240 × 120
Panel Dimensions (mm) customized customized customized
Physical Resolution of Module (W× H) 96 × 48 80 × 40 60 × 30
Weight 8.2 kg/m² 8.2 kg/m² 8.2 kg/m²
Gray Scale 16 bit 16 bit 16 bit
Colours 281 trillion 281 trillion 281 trillion
Contrast Ratio 4,000 : 1 4,000 : 1 4,000 : 1
Average Power Consumption 9 w 10 w 10 w
Max Power Consumption 12 w 13 w 13 w
Brightness >1,000nits >1,000nits >1,000nits
Refresh Rate 1,920 Hz 1,920 Hz 1,920 Hz
Driving Method 1/40 1/40 8/1
Horizontal Viewing Angle 160° 160° 160°
Vertical Viewing angle 140° 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front Front Front
IP Rating (Front/Rear) IP 54 IP 54 IP 54
Installation Hang Hang Hang
Certification CE, FCC, RoHS CE, FCC, RoHS CE, FCC, RoHS
Operating Temp/Humidity -20ºC- 60ºC / 10% - 90% -20ºC- 60ºC / 10% - 90% -20ºC- 60ºC / 10% - 90%
Storage Temp/Humidity -40ºC-80ºC / 10% - 90% -40ºC-80ºC / 10% - 90% -40ºC-80ºC / 10% - 90%


Innovative Flexible LED Display Witth Soft Feature, Bendable and Light Weight​ Features:
1.Durable soft rubber module, anti-static electricity
2.Easy maintenance
3.5mm thichness, space efficiency
4.0.18kg per module, shipping cost and installation cost saving.
5.Fanless

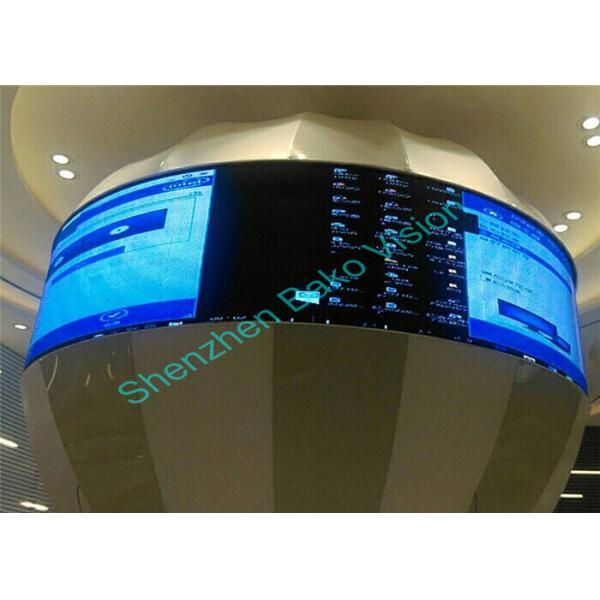

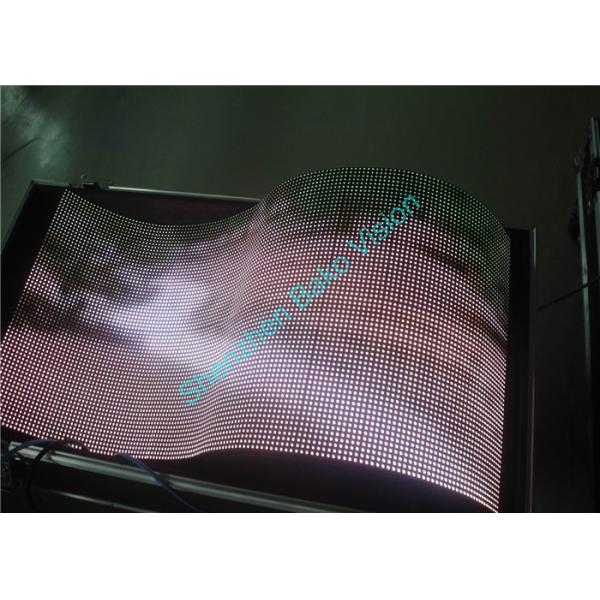

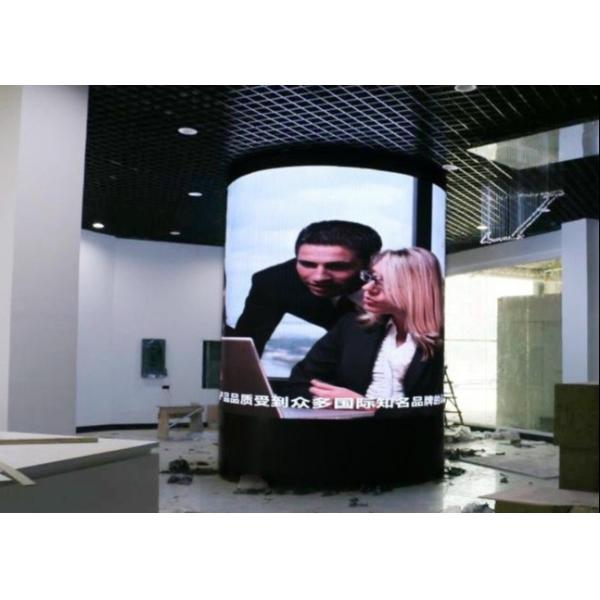

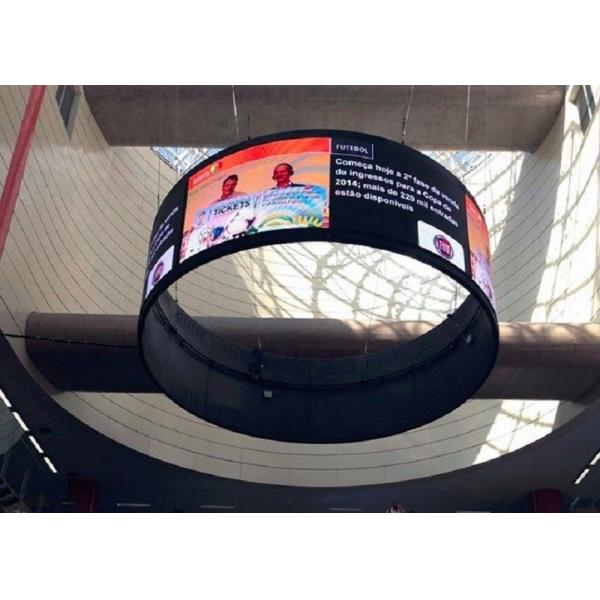

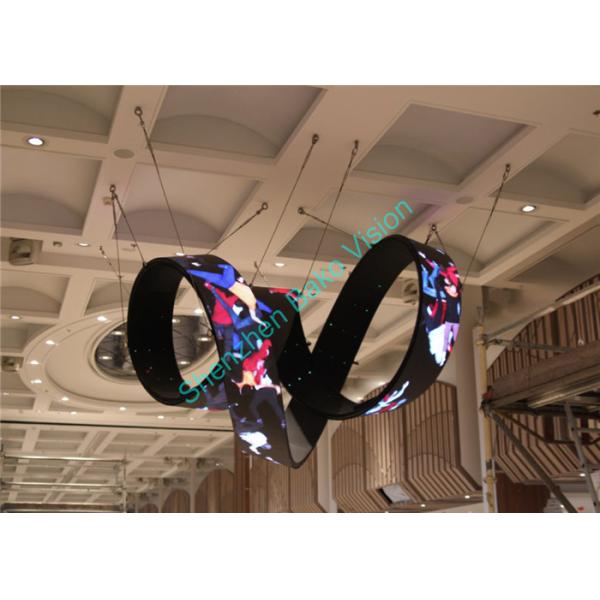

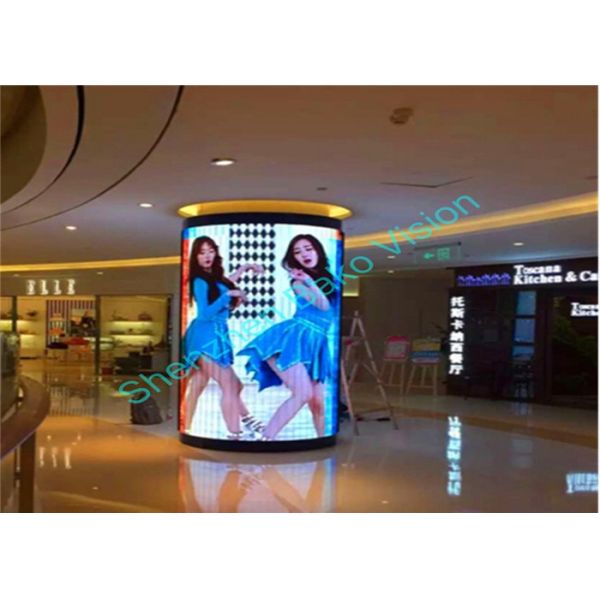

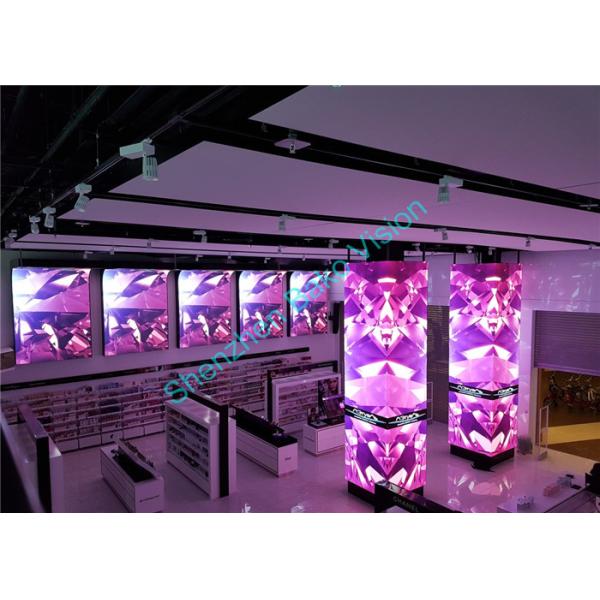

Innovative Flexible LED Display With Soft Feature, Bendable and Light Weight Cases:

Innovative Flexible Foldable LED Display Witth Soft Feature, Bendable and Light Weight

Innovative Flexible Foldable LED Display Witth Soft Feature, Bendable and Light Weight

Innovative Flexible Foldable LED Display Witth Soft Feature, Bendable and Light Weight


About us:
LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Innovative Flexible Foldable LED Display Witth Soft Feature, Bendable and Light WeightInnovative Flexible Foldable LED Display Witth Soft Feature, Bendable and Light WeightInnovative Flexible Foldable LED Display Witth Soft Feature, Bendable and Light WeightInnovative Flexible Foldable LED Display Witth Soft Feature, Bendable and Light WeightInnovative Flexible Foldable LED Display Witth Soft Feature, Bendable and Light WeightInnovative Flexible Foldable LED Display Witth Soft Feature, Bendable and Light WeightInnovative Flexible Foldable LED Display Witth Soft Feature, Bendable and Light Weight
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q8: How can I get technology support?
A:1,We will train in our factory and send video for showing. The training include system use, system maintenance and equipment protection.
