Specifications
Brand Name :
Bako Vision
Model Number :
BOR Series
Certification :
CE,UL,FCC,ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C, D/P
Supply Ability :
8000square meter per month
Delivery Time :
15-25days
Packaging Details :
Flight case / Plywood case
Panel dimension :
500*500 / 500*1000mm
Brightness :
6000nit
Pixel density :
43264 dots/m2
Refresh rate :
1920Hz
Weight :
7 / 12.5kg / Panel
Description

P4.81mm Waterproof High Brightness Outdoor Rental LED Video Display

Rental Led Screen Quick Details:
1, Pixel Pitch: 4.81mm
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: 500×500mm/500x1000mm weight: 25kg/Sqm.
5, Recommended minimum viewing distance: 5m.
6, Warranty: 2years.
Rental Led Screen Description:
Bako Vision Outdoor LED Screen include permanent installation outdoor electronic led display, the pixel various from 2.6, 3.91mm, 4.81mm, 6mm,10mm. We provide variable solution to satisfy your requirement. You can use it for stage performance or living show. Even you can use it as floor screen.

Rental Led Screen Superior Electrical Features

  • Curved angle : ±15° adjustable, creative design to meet your requirement;
  • High brightness: More than 6000nits,visible from every direction even face to direct sunshine.
    Light sensor can adjust the brightness at night and gloomy weather, this also can save the power cost.
  • High waterproof grade: IP65 protection, can be sustain strong strom and rain, have the best waterproof ability in outdoor use,SMD LEDs, wide viewing angle, Hor. Ver. 140 degree;
  • Convenient Assemble : Smart fast side locks make screen assemble fast and easier; Save your labor cost and time.
  • Seamless connection: superior color uniformity and stunning image quality, there is not black bezel line on connection nor information missing;
  • Good heat dissipation: New cabinet design of LED screen without fan, good heat dissipation,due to die-casting alumium material ,concise, slim and light weight;
  • Convenient Control: Digital Video walls can be connected with nearly any equipment , including to PCs, DVD and camera . That is conveniently for you to present your data;
  • High Quality : we use famous IC ,like MBI5020,MBI5024,MBI5030 and high quality lamp, Nationstar and so on, ensure high brightness;

Rental Led Screen Specification

Physical Pitch 4.81mm
Pixel Configuration SMD2727
Pixel Density 43,264 pixels/Sqm
Module Dimensions(W x H) (mm) 250 x 250
Panel Dimensions (mm) 500 x 500 x 80 / 500 x 1000 x 80
Physical Resolution of Panel (W x H) 104 x 104 / 104 x 208
Single Cabinet Weight 7 / 12.5 kg/panel
Processing 16bit
Colours 281 trillion
Contrast Ratio 4,000 : 1
Average Power Consumption 75 /150 W /panel
Max Power Consumption 225 /550 W /panel
Operating Temp/Humidity -20ºC - 60ºC / 10ºC - 60ºC
Storage Temp/Humidity -30ºC - 60ºC / 10ºC - 60ºC
Refresh Rate >1,920 Hz
Brightness ≥6,000nits
Servicing Front / Rear
IP Rating (Front/Rear) IP 65 / IP 54

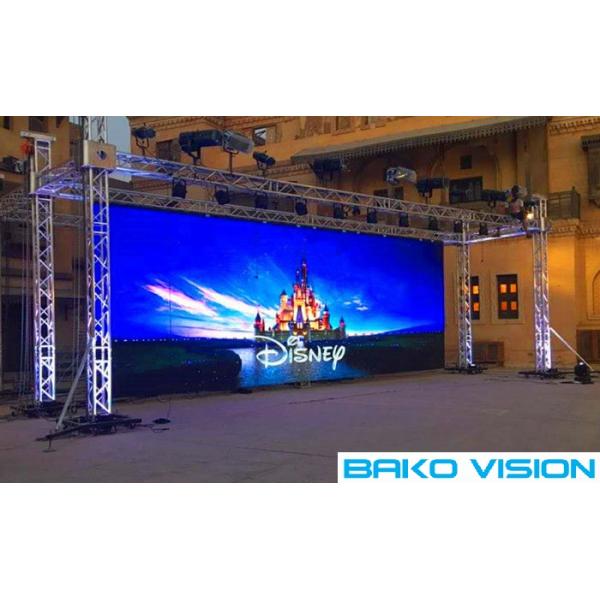

Rental Led Screen Case:

Curved Angle Outdoor Rental LED Display High Brightness P4.81 IP65 Waterproof
Curved Angle Outdoor Rental LED Display High Brightness P4.81 IP65 WaterproofCurved Angle Outdoor Rental LED Display High Brightness P4.81 IP65 WaterproofCurved Angle Outdoor Rental LED Display High Brightness P4.81 IP65 WaterproofCurved Angle Outdoor Rental LED Display High Brightness P4.81 IP65 WaterproofCurved Angle Outdoor Rental LED Display High Brightness P4.81 IP65 WaterproofCurved Angle Outdoor Rental LED Display High Brightness P4.81 IP65 WaterproofCurved Angle Outdoor Rental LED Display High Brightness P4.81 IP65 WaterproofCurved Angle Outdoor Rental LED Display High Brightness P4.81 IP65 WaterproofCurved Angle Outdoor Rental LED Display High Brightness P4.81 IP65 Waterproof

Our service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you needed.
