Fixed LED Screen Indoor Video Wall Advertising LED Display Front Service 480*480mm Panel
Fixed LED Screen Indoor Video Wall Advertising LED Display Front Service 480*480mm Panel
Fixed LED Screen Indoor Video Wall Advertising LED Display Front Service 480*480mm Panel
Fixed LED Screen Indoor Video Wall Advertising LED Display Front Service 480*480mm Panel
Fixed LED Screen Indoor Video Wall Advertising LED Display Front Service 480*480mm Panel
Fixed LED Screen Indoor Video Wall Advertising LED Display Front Service 480*480mm Panel
Fixed LED Screen Indoor Video Wall Advertising LED Display Front Service 480*480mm Panel
Fixed LED Screen Indoor Video Wall Advertising LED Display Front Service 480*480mm Panel
Specifications
Brand Name :
Bako Vision
Model Number :
BHD Series
Certification :
CCC, CE, ETL, FCC, RoHS
Place of Origin :
China
MOQ :
1 sqm
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
9,000 sqms/month
Delivery Time :
15-20 working days
Packaging Details :
Flight case, Plywood case
Price :
$300 - $1,200 per square meter
Tube chip color :
Full Color
Usage :
Indoor
Panel Material :
Die-casting Aluminum
Life span :
100000hours
Module size :
240mm*240mm
Warranty :
2 Years
Description

Fixed LED Screen Indoor Video Wall Advertising LED Display Front Service 480*480mm Panel (BHD.pdf)

Fixed LED Screen Indoor Video Wall Advertising LED Display Front Service 480*480mm Panel

Indoor LED Screen Parameters

BHD-1.5 BHD-1.6 BHD-1.8 BHD-2.5 BHD-3
Physical Pitch 1.579 mm 1.667 mm 1.875mm 2.5mm 3mm
Pixel Configuration SMD1010 SMD1010 SMD1515 SMD2121 SMD2121
Pixel Density 401,110 pixels/sqm 360,000 pixels/sqm 284,444 pixels/sqm 160,000 pixels/sqm 111,110 pixels/sqm
Module Dimensions(W*H)(mm) 240*240 240*240 240*240 240*240 240*240
Panel Dimensions(mm) 480*480*80 480*480*80 480*480*80 480*480*80 480*480*80
Physical Resolution of Panel(W*H) 304*304 288*288 256*256 192*192 160*160
Panel Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Single Cabinet Weight 7 kg/panel 7 kg/panel 7 kg/panel 7 kg/panel 7 kg/panel
Processing 16 bit 16 bit 16 bit 16 bit 16 bit
Contrast Ratio 4,000:1 4,000:1 4,000:1 4,000:1 4,000:1
Average Power Consumption 258 W/panel 264 W/panel 260 W/panel 215 W/panel 235 W/panel
Max Power Consumption 715 W/panel 680 W/panel 690 W/panel 640 W/panel 670 W/panel
Refresh Rate > 2,880 Hz > 2,880 Hz > 2,880 Hz > 2,880 Hz > 2,880 Hz
Brightness 600-1,000 nits 600-1,000 nits 600-1,000 nits 600-1,000 nits 600-1,000 nits
Horizontal Viewing Angle 160° 160° 160° 160° 160°
Vertical Viewing Angle 140° 140° 140° 140° 140°
Expected Lifetime 100,000Hrs 100,000Hrs 100,000Hrs 100,000Hrs 100,000Hrs
Servicing Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
IP Rating(Front/Rear) IP40/IP21 IP40/IP21 IP40/IP21 IP40/IP21 IP40/IP21



Fixed LED Display Introductions

Die-casting aluminum cabinet size: 480*480*80mm weight: 7 KG
Fixed LED Screen Indoor Video Wall Advertising LED Display Front Service 480*480mm Panel
Fan-less design
Ensures a noiseless LED screen,making it suitable for the high-level applications.

No flat & power cable on module
Everything is connected with pin type socket.
Calble free design makes it fast for installation and stable in data/power transmission.

Convenient and strong Locks
Quick locks provide easy installation,
Which can reduce the cost and time of installation.
Fixed LED Screen Indoor Video Wall Advertising LED Display Front Service 480*480mm Panel
Cat-6 data cable connection ensures stable data transmission.
Seamless connection
The cabinet precision is 0.05mm to make sure of seamless connection.

Both front and rear service
Front service makes it easy to install the display onto the wall.

High contrast ratio, high refresh rate and gray scale
Make it possible for high level occasions like TV station.
Fixed LED Screen Indoor Video Wall Advertising LED Display Front Service 480*480mm Panel

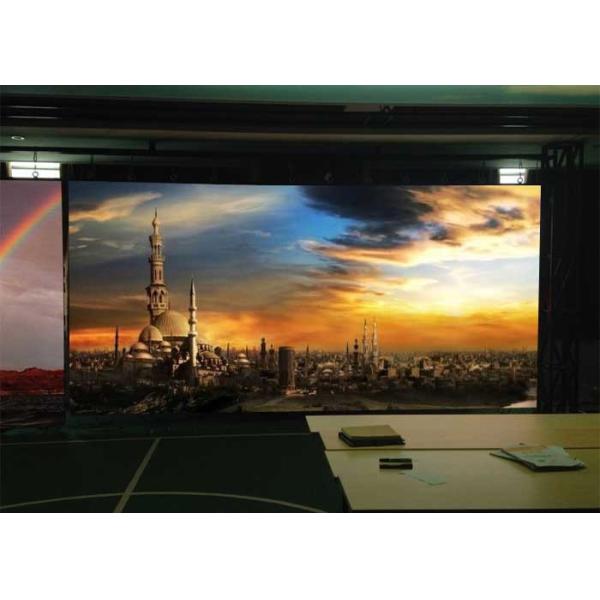

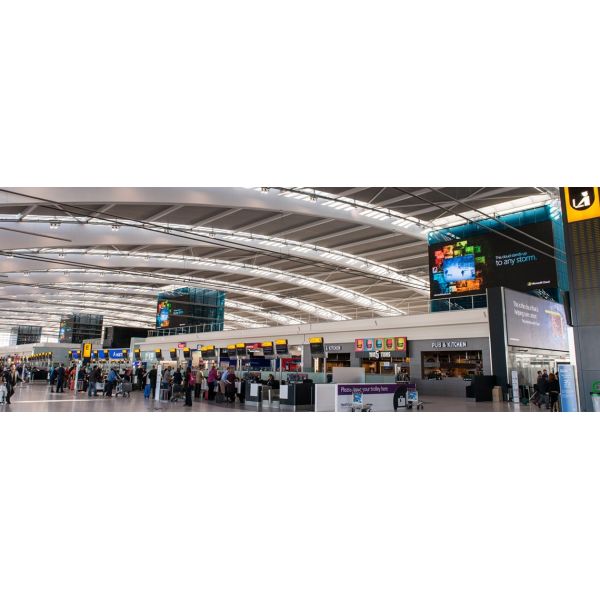

Front Service LED Panel Cases
Fixed LED Screen Indoor Video Wall Advertising LED Display Front Service 480*480mm Panel


About Us

Fixed LED Screen Indoor Video Wall Advertising LED Display Front Service 480*480mm Panel
1. Rich experience: established in 2005; familiar with technical and material about LED display.


2. Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice, with the lowest-cost custom service.


3. Powerful R&D ability: excellent engineers are constantly developing new products and improving them.


4. Good quality:All products have passed CE, ROHS, FCC certification.


5. Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.


6. We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.


FAQ
Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.
Q2: Could we print our own logo on led display products?
A: Of course. Please let us know all the details soon before production.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.
Q4: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can rest assured to buy.
