Full Color Screen Indoor Fixed LED Display P1.5-P3mm HD Pixels Light Weight
Full Color Screen Indoor Fixed LED Display P1.5-P3mm HD Pixels Light Weight
Full Color Screen Indoor Fixed LED Display P1.5-P3mm HD Pixels Light Weight
Full Color Screen Indoor Fixed LED Display P1.5-P3mm HD Pixels Light Weight
Full Color Screen Indoor Fixed LED Display P1.5-P3mm HD Pixels Light Weight
Full Color Screen Indoor Fixed LED Display P1.5-P3mm HD Pixels Light Weight
Full Color Screen Indoor Fixed LED Display P1.5-P3mm HD Pixels Light Weight
Full Color Screen Indoor Fixed LED Display P1.5-P3mm HD Pixels Light Weight
Specifications
Brand Name :
Bako Vision
Model Number :
BHD
Certification :
CCC.CE.ETL.RoHS
Place of Origin :
China
MOQ :
1 Squar Meter
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000m²/month
Delivery Time :
20-25 days
Packaging Details :
Flight Case
Module Dimensions (Wxh) (mm) :
240X240mm
Single Cabinet Weight :
7 kg/panel
Panel Dimensions (mm) :
480*480*80
Panel Material :
Die-Casting Aluminum
Gray Scale :
16 bit
Contrast Ratio :
4,000 : 1
Brightness :
1200 Nits
Refresh Rate :
> 2,880 Hz
Description

P1.5-P3mm HD Pixels Full Color Screen Indoor Fixed Install LED Display Panel

Indoor Full Color HD Fixed LED Display Panel

P1.5, P1.6, P1.8, P2.5, P3 mm indoor is smallest pixel pitch. In general, we would use best IC with 2880Hz refresh rate because small pixel Led display module has higher request in quality and image effect. In addition, better SMT process and quality control are needed because every module have too many Led lamps and they are very expensive. We have enough good technology to produce best small pixel Led display modules.

Features

1. High quality die-casting Aluminum LED Cabinets with small volume.

2. Light weight, 7kg/panel, good flatness and Easy Maintenance.

3. 480*480mm cabinet with fast locks and handles to ensure fast installation and disassemble.

4. Seamless connection to ensure showing nice pictures, videos.

5.Perfect for indoor rental and fixed application, ultra light and thin, dual handles and quick lock desing, easy on-site installation.

Full Color Screen Indoor Fixed LED Display P1.5-P3mm HD Pixels Light Weight


Parameter

BHD-1.579 BHD-3
Physical Pitch 1.579mm 3mm
Pixel Configuration SMD1010 SMD2121
Pixel Density 401,956 pixels/m² 110,889 pixels/m²
Module Dimensions(W*H)(mm) 240 × 240 240 × 240

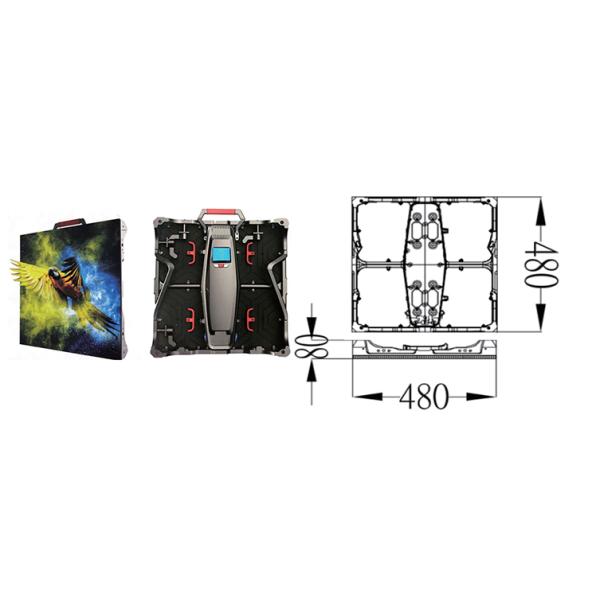

Panel Dimensions(mm) 480 × 480 × 80 480 × 480 × 80
NO. of Modules Per Panel (W*H) 2*2 2*2
Panel Material Die-Casting Aluminum Die-Casting Aluminum
Colors 281Trillion 281Trillion
Processing 16 Bit 16 Bit
Physical Resolution of Module(W*H)(mm) 152*152 96*96
Physical Resolution of Panel(W*H)(mm) 304 × 304 160*160
Single Cabinet Weight 7kg/panel 7kg/panel
Average Power Consumption 258 W/panel 235 W/panel
Max Power Consumption 715 W/panel 670 W/panel
Brightness 600-1000 nits 600-1000 nits
Viewing Angle H:160°/ V:140° H:160°/ V:140°
Operating Temp/ Humidity -10ºC-60ºC/10%-60% -10ºC-60ºC/10%-60%
Storage Temp/ Humidity -30ºC-60ºC/10%-60% -30ºC-60ºC/10%-60%
Expected Lifetime 100,000 Hrs 100,000 Hrs
Servicing Front/Rear Front/Rear
IP Rating(Front/Rear) IP 40/IP21 IP 40/IP21
Max Stacking and Hanging 20/10 20/10
Refresh Rate >2,880 Hz >2,880 Hz
Scan Method 1/38 Scan 1/20 scan

Pruduct details

1. Stable Aviation Plug connection in power and signal cables.

2. High-performance PCB board substrate with strict technology process ensure perfect flatness performance, showing the most real and brilliant colors.

Full Color Screen Indoor Fixed LED Display P1.5-P3mm HD Pixels Light Weight

3. Lightweight to ensure convenient carry and transportation

4. High brightness and high refresh rate to ensure clear and nice pictures.

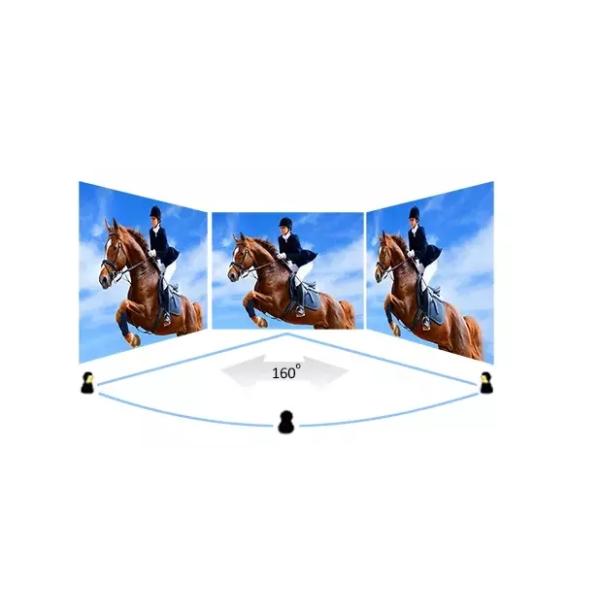

5. Wide Viewing angle to cover larger view range and attract more attention viewers.

Full Color Screen Indoor Fixed LED Display P1.5-P3mm HD Pixels Light Weight

Full Color Screen Indoor Fixed LED Display P1.5-P3mm HD Pixels Light Weight

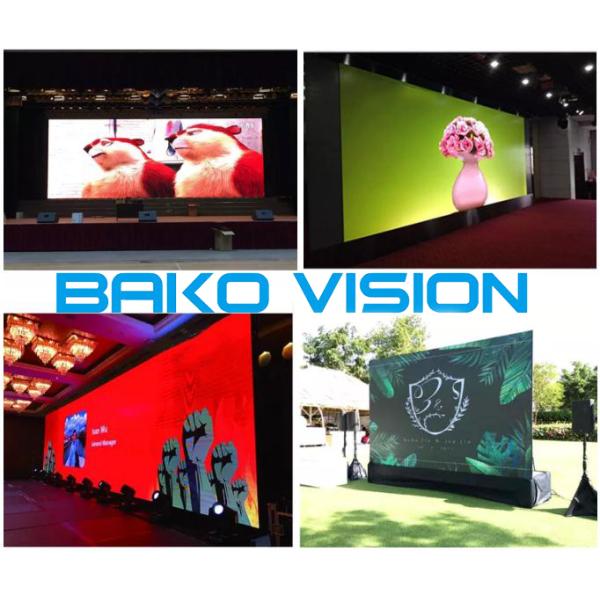

Application

P1.579, P3mm LED Modules are applied Widely in Stadiums, Advertisement, Banks, Securities exchange, Stations,Shoping malls Postal officees, Schools, Monitoring, Restaurants, Entertainment, Enterprises etc.

Full Color Screen Indoor Fixed LED Display P1.5-P3mm HD Pixels Light Weight

Packing/ Shipping -Flight case/ By sea or by air

Full Color Screen Indoor Fixed LED Display P1.5-P3mm HD Pixels Light Weight

Our company

LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

Full Color Screen Indoor Fixed LED Display P1.5-P3mm HD Pixels Light Weight

Our Promise

24 hours response for your inquiry.
7 days per week to help you.
365 days after serbice support.
All lifetime guarantee and free charge within two years.
OEM&ODM, CUSTOMIZED DESIGN SERVICE,
Patent right protection and distributorship protection.
