Specifications
Brand Name :
Bako Vision
Model Number :
BF
Certification :
RoHS,CE,FCC,TUV
Place of Origin :
China
MOQ :
1 Square Meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000sqm/ Month
Delivery Time :
10~15 wds
Packaging Details :
Plywood case / Flight Case
Brightness :
1500 ~ 6000nits
Foldable Angle :
180/360 degree
Operating Temp/Humidity :
-10℃— 60℃ / 10%—60%
Contrast Ratio :
2,000 : 1 / 4,000 : 1
United Size :
250 × 250 / 192 x 192mm
Physical Pitch :
6mm 7.8mm 10mm 12mm
Description

4000nits Foldable Flexible LED Display for Stage Rental / Commercial Advertising

Foldable LED Screen is breaking through the traditional rigid led display,it can 360 degree rotated,foldable led display is welcome the customers,because of its foldable structure,light weight,ultra thin,irregular shape avaliable and high pitch density.

Description:

1. Foldable modules, save space and transportation cost, support hanging, stacking and attaching.

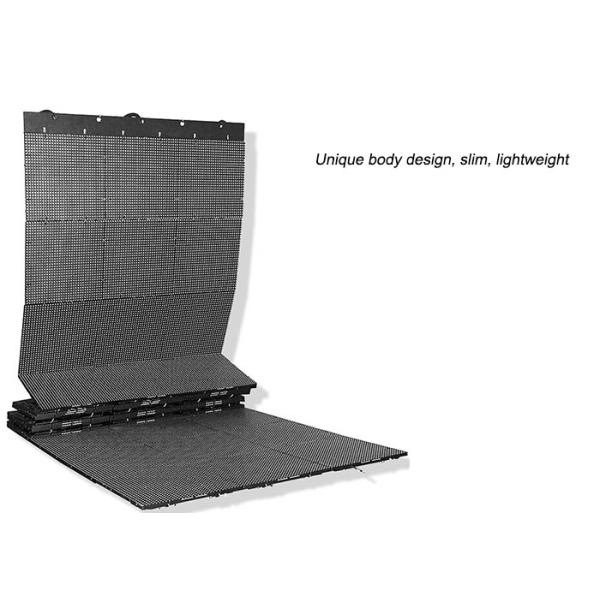

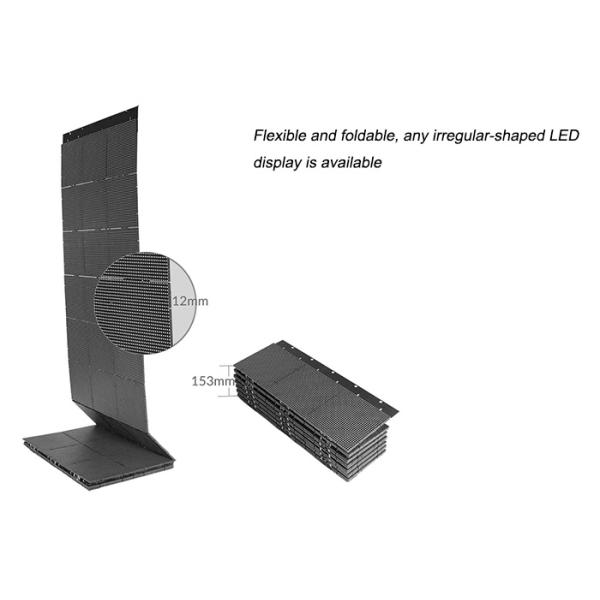

2. 8.5mm - 15mm thickness, <12kg per square meter, 180 or 360 degree foldable.

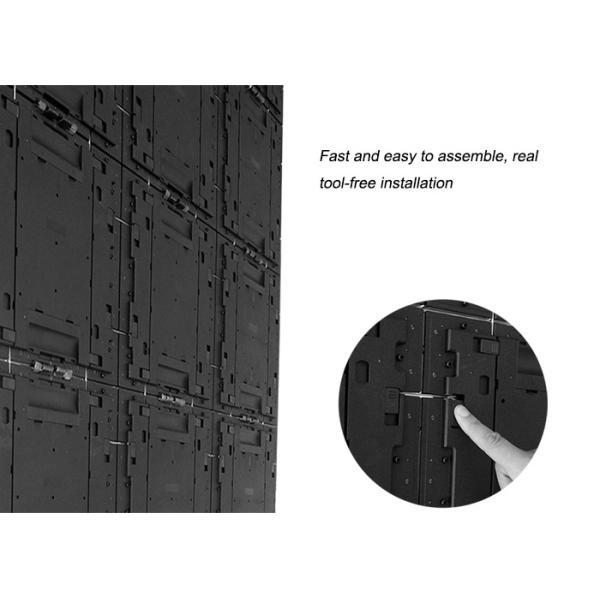

3. Press the lock buttom to install and dismantle any module from middle without extra tools

4. Creatively light-weight give you more creative idea for your stage by flexible led screen.

4000 Nits Foldable Flexible LED Display For Stage Rental / Commercial Advertising

4000 Nits Foldable Flexible LED Display For Stage Rental / Commercial Advertising

4000 Nits Foldable Flexible LED Display For Stage Rental / Commercial Advertising

4000 Nits Foldable Flexible LED Display For Stage Rental / Commercial Advertising

Parameters:

BF-6 BF-7 BF-10
Physical Pitch 6mm 7.8mm 10mm
Pixel Configuration SMD 3528 SMD 3528 / SMD 3535 SMD 3528
Pixel Density 27,556 pixels/m² 16,384 pixels/m² 10,000 pixels/m²
United Size (mm) 192 × 192 250 × 250 160 × 160
Physical Resolution of Unit (W× H) 32 × 32 32 × 32 16 × 16
Weight(kg/m²) <10 <9 <9
Gray Scale 16bit 16bit 16bit
Colours 281trillion 281trillion 281trillion
Contrast Ratio 2,000 : 1 / 4,000 : 1 2,000 : 1 / 4,000 : 1 2,000 : 1 / 4,000 : 1
Average Power Consumtion 150 / 310 W/m² 90 / 200 W/m² 110 W/m²
Max Power Consumption 375 / 775 W/m² 225 / 500 W/m² 275 W/m²
Operating Temp/Humidity -10℃- 60℃ / 10%-60% -10℃- 60℃ / 10%-60% -10℃- 60℃ / 10%-60%
Storage Temp/Humidity -30℃- 60℃ / 10%-60% -30℃- 60℃ / 10%-60% -30℃-60℃ / 10%-60%
Refresh Rate >1,920 Hz >1,920 Hz >1,920 Hz
Brightness 2,000 / 4,000 nits 1,500 / 6,000 nits 1,500 nits
Foldable Angle 360° 360° 360°
Max Length of Control Box 6m 8m 4m
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front Front Front
IP Rating (Front/Rear) IP 43 / IP 54 IP 43 / IP 54 IP 43 / IP 54
Scan Method 1/16 Scan 1/16 Scan 1/16 Scan

4000 Nits Foldable Flexible LED Display For Stage Rental / Commercial Advertising

Shenzhen Bako Vision Technology Co.,Ltd

LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

4000 Nits Foldable Flexible LED Display For Stage Rental / Commercial Advertising

Technical support:

1. Installation and Maintain Manual
2. LED display system connection diagram
3. Data wire connection diagram
4. Power supply wire connection diagram
5. multi-language software Guidance

FAQ

1)Q: How to choose a proper led screen for your need?
A: You just need to consider three simple questions when you choose a led screen.
1.Will you use it indoor or outdoor?
2.Is it for rental usage(need to be moved from one place to another place very often) or for fixed installation (to be installed in one place forever)?
3.What is the approximate size of the whole led screen you would like to purchase?

2)Q: How to install it after I received it?
A: We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.

3)Q: How could I buy the products I need if there is no price in the website and could I get some samples first?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.We welcome sample order to test and check quantity.


4)Q: I would like to ask you if it's possible to have my logo on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
