Specifications
Brand Name :
Bako Vision
Model Number :
BOR Series
Certification :
CE,CCC,FCC,ETL,RoHS,EMC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
20-25days
Packaging Details :
Flight Case
Physical Pitch :
3.91mm
Panel Material :
Die-casting Aluminium
Module size: :
250mm*250mm
LED chip :
Nationstar
Power supply :
G-energy
Life span :
100,000 Hrs
Description

HD LED Video Wall Stage Rental LED Display Screen 500*500mm Panel 1920HZ

Products Description:
Cabinet size:500mm x 500mm

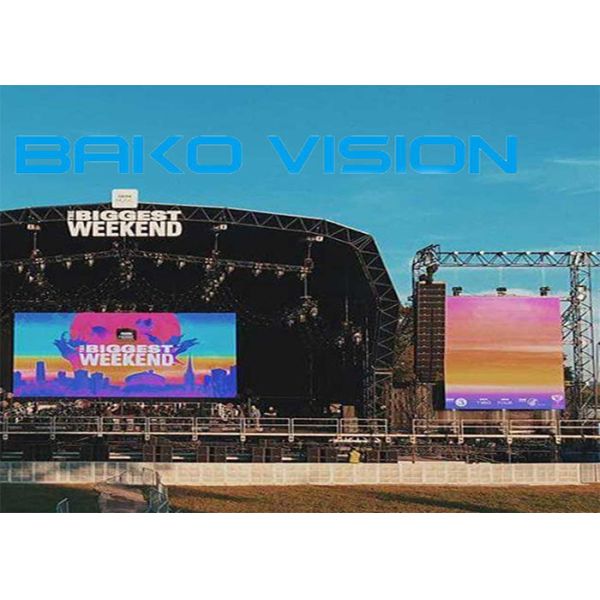

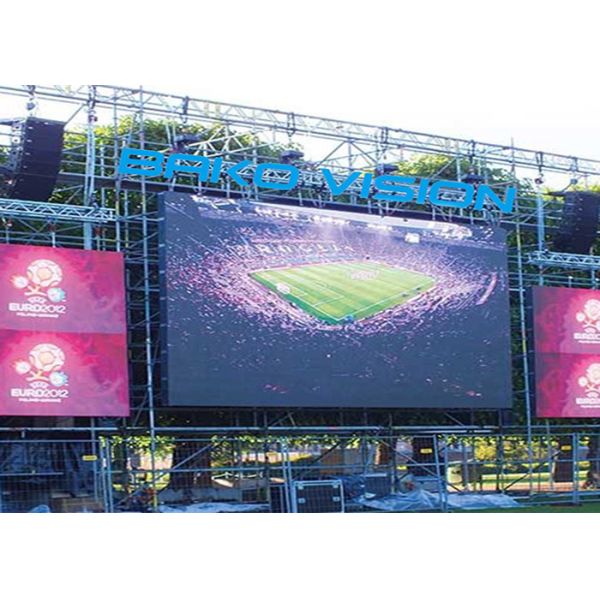

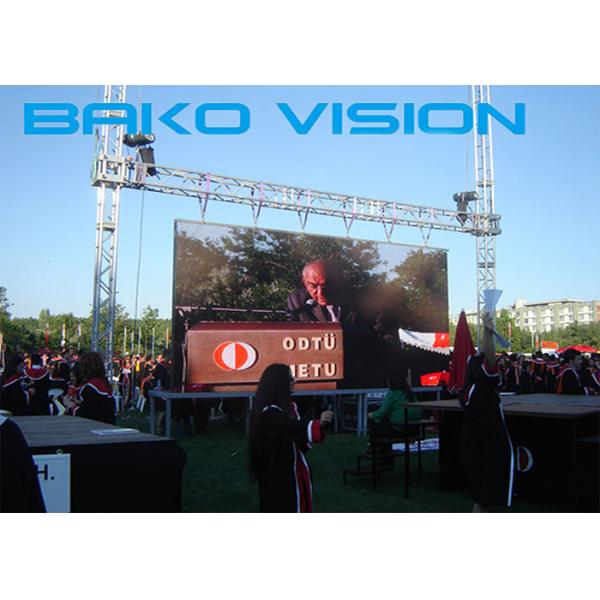

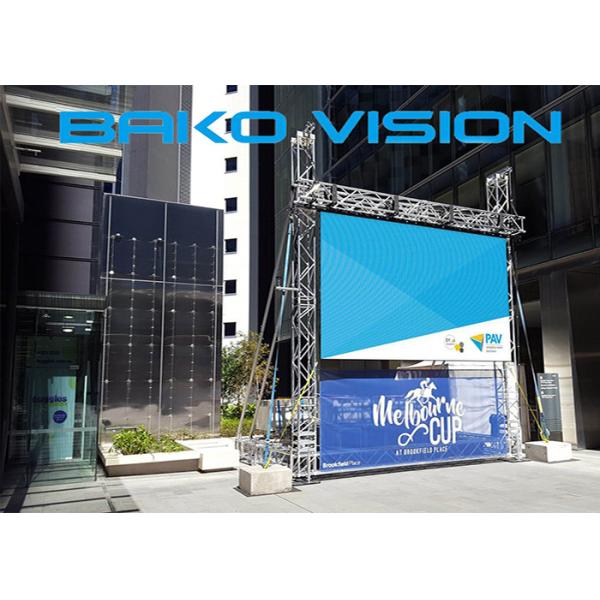

P3.91 Outdoor Rental LED display, P3.91mm pixel rental LED display LED screen LED video wall, Standard Size 500mmx1000mm or 500x500mm, P3.91mm led display screen high quality SMD LED Display Screen for rental use. P3.91 Rental LED display mainly used for performance, meetings, exhibitions, weddings, foundations, started opening, promotion and other activities,the stage background structures, lighting and sound equipment and special effects equipment rental places.


Products Features:
1.Die casting aluminum alloy natural heat dissipation, no fan mute design;
2.IP65 high waterproof and dust-proof, adapt to extreme weather;
3.High precision die casting aluminum box, thin and lightweight, greatly saving the cost of steel structure and transportation, installation costs;
4.Can choose to install, lift, creative assembly and other forms, to meet the needs of shopping malls, windows, leasing and other applications;
5. Support +/-7.5°curved large screen assembly
6.Supports two sizes of mixed and misaligned stitching
7.Quick assembling & disassembling: due to unique quick lock design, 2 seconds for assembling one panel


Parameter

BOR-III-3
Physical Pitch 3.91mm
Pixel Configuration SMD1921
Pixel Density 65,536 pixels/m²
Module Dimensions(W*H)(mm) 250*250/250*500
Panel Dimensions(mm) 500*500*80/500*1000*80
NO. of Modules Per Panel (W*H) 2*2
Panel Material Die-Casting Aluminum
Colors 281Trillion
Processing 16 Bit
Physical Resolution of Module(W*H)(mm) 64*84/64*168
Physical Resolution of Panel(W*H)(mm) 128*128/128*256
Single Cabinet Weight 9/15kg/ panel
Average Power Consumption 75/150W/panel
Max Power Consumption 225/550W/panel
Brightness >60,00nits

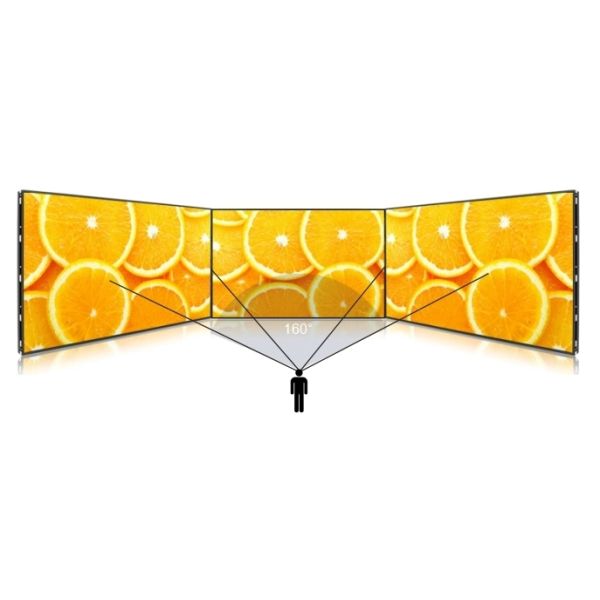

Viewing Angle H:160°/ V:140°
Expected Lifetime 100,000 Hrs
Servicing Front/Rear
IP Rating(Front/Rear) IP 65/IP54
Max Stacking 20/10
Max Hanging 20/10
Refresh Rate >1,920 Hz
Contrast Ratio 4000:1




Outdoor Rated
Feature

TUV Certificated and Reddot Awarded
Front and Rear Access
UI LCD monitoring display indicates the status
Double data backup: if one data cable doesn’t work, perimeter led display still can work well

P3.91mm HD LED Video Wall Stage Rental 500*500mm Panel 1920HZ 100000 Hrs Life Span

Outdoor Waterproof with IP65
Deep black levels, contrast ratio 4000:1
Suitable brightness adjustable for outdoor day and night
P3.91mm HD LED Video Wall Stage Rental 500*500mm Panel 1920HZ 100000 Hrs Life Span

Slim, Light Weight and Quiet
500mmx500mm or 500mmx1000mm options
80mm thickness
Fanless design
Die casting aluminum material have a excellent heat dissipation performance to protect the module circuit

About us
LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
P3.91mm HD LED Video Wall Stage Rental 500*500mm Panel 1920HZ 100000 Hrs Life Span

After service

Pre-producing:

  • Get complete requirements of clients.
  • To do a thorough analysis.
  • Offer a most reasonable and scientific solution.
  • Customized design.

In producing:

  • Producing progress updating for clients
  • Particular Installation CAD and Design Diagram for clients.

After service:

  • 2 years free maintenance
  • 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
  • Free training for customers in factory
  • Local Partner Installation Service
