Specifications
Brand Name :
Bako Vision
Model Number :
LED Poster
Certification :
EMC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000sqm/ Month
Delivery Time :
10~15 days
Packaging Details :
Plywood case / Flight Case
Panel Size :
571 x1897mm
Panel Weight :
28kg
Bezel Thickness :
2mm
Control Method :
USB, Wifi, Mobile Phone
Display function :
Video,picture
Brightness :
1200cd/sqm,>1000cd/m2
Description

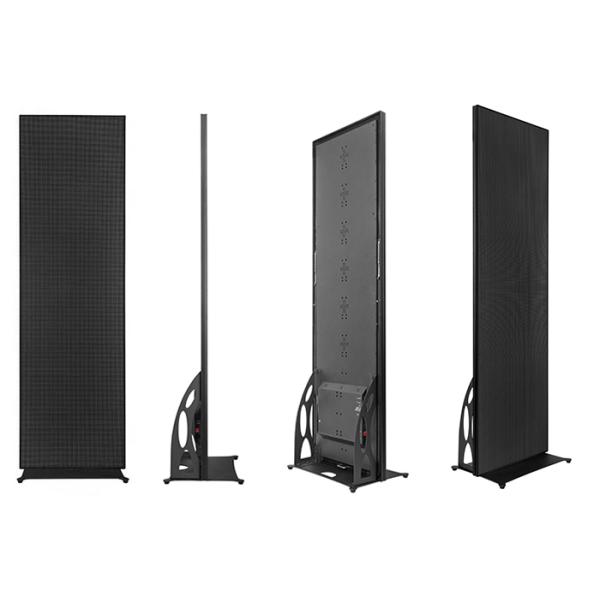

P2.5mm Splicing Indoor Digital LED Poster Display Screen Signage Lightweight Slim Hanging Ceiling for Advertising Mall

P2.5mm Splicing Indoor Digital LED Poster Display Screen Signage Lightweight Slim Hanging Ceiling for Advertising Mall

Digital Poster Product Description:

1. Plug and play LED poster screen, Zero Configuration

Display any video, audio or pictures playlists anytime, anywhere. Update digital content in built-in media player via WiFi or USB. Easy to schedule the content and no complicated configuration is needed!

2. Intelligent Management

The software enables you to connect to it with a PC or Android devices via RJ45, WiFi, 3G, USB, and HDMI. Extremely easy to identify your display and manage settings like brightness and contrast. Play your content directly from a laptop, tablet or smartphone remotely without the need to have an on-site controlling device or PC.

3. Wheeled base, easy to move

4. Installation free, wheelbase and screen assembled and delivered together

5. Special hole position design, easy maintenance, no need to remove the entire back cover

6 Aluminum, lighter and good heat dissipation

7. The led poster screen can be operated by mobile phone

P2.5mm Splicing Indoor Digital LED Poster Display Screen Signage Lightweight Slim Hanging Ceiling for Advertising Mall

P2.5mm Splicing Indoor Digital LED Poster Display Screen Signage Lightweight Slim Hanging Ceiling for Advertising Mall

Digital Poster Product Parameter:

Pixel Pitch 1.9mm 2.5mm 2.5mm Pro 3.0mm
Pixel Configuration SMD 1515 SMD 2121 SMD 2121 SMD 2121
Pixel Density 279,936pixels/m² 169,344pixels/m² 157,464pixels/m² 110,889pixels/m²
Module Dimention(mm) 160 × 160 160 × 160 280 × 210 192 × 192
Whole Set Dimention(mm) 640 × 1920 × 35 640 × 1920 × 35 571× 1897 × 33 574 × 1928 × 35
NO.of Modules Per Panel 4 × 12 2 × 9 2 × 9 2 × 9
Resolution of Module 84 x 84 64× 64 108× 81 64 × 64
Resolution of Whole Set 336 × 1,010 256 × 768 216 × 729 192× 640
Panel Material Aluminum
Cabinet Weight 32 kg 32 kg 28 kg 32 kg
Gray Level 16 bit(281 trillion colors)
Contrast Ratio 4000 : 1 4000 : 1 4000 : 1 4000 : 1
Average Power Consumption 250W/Set 200W/Set 100 W/ Set 200 W/ Set
Max Power Consumption 750W/Set 600W/Set 390 W / Set 600 W / Set
Driving Method 1/32 Scan 1/32 Scan 1/27 Scan 1/32 Scan
Brightness >1,000 nits >1,000 nits >1,000/3500 nits >1,000 nits
Refresh Rate ≥2,880 Hz ≥2,880 Hz ≥3,840 Hz ≥2,880 Hz
Viewing Angle(V/H) 160°/ 140°
Frame Rate 60 fps
Operating Temp/Humidity -10ºC~60ºC / 10%~60%
Storage Temp/Humidity -30ºC~60ºC / 10%~60%
IP Rating(Front/Rear) IP40
Expected Lifetime 100,000 Hrs

P2.5mm Splicing Indoor Digital LED Poster Display Screen Signage Lightweight Slim Hanging Ceiling for Advertising Mall

About Bako Vision:

LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

Service:


1) Your inquiries related to our products or prices will be replied in 24H
2) Well-trained and experienced staffs to answer all your enquire in fluent English
3) Customized design is available, OEM and ODM are accepted
4) Protection of your sales area, ideas of design and all your private information
5) Technology training
(A) We provide the technical training for free, which contains the operation training and maintenance training in the factory
(B) We will send our engineers to your country if necessary.

FAQ

Q1. Do you provide samples?is it free or extra?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.

Q3. Do you offer guarantee for the products?

A: Yes,we offer 2-5 years warranty to our products.
