Specifications
Cabinet Material :
Die-casting Aluminum
Panel Dimention :
500*500/500*1000
Brightness :
>6,000nits
Contrast Ratio :
4000:1
Price :
$399~999
Brand Name :
Bako Vision
Model Number :
BOR-I
Certification :
CCC,CE,ETL,FCC
Place of Origin :
China
MOQ :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000sqms/month
Delivery Time :
15days
Packaging Details :
Flight case,Plywooden case
Description

Durable Outdoor Rental Led Display P3.91 Strength / Beauty Screen TUV Certificated

  BOR-I-3 BOR-I-4 BOR-I-5 BOR-I-6
Physical Pitch 3.91mm 4.81 mm 5.95mm 6.25 mm
Pixel Configuration SMD 1921 SMD 2525 SMD 2525 SMD 2727
Pixel Density 65536 pixels/m² 43264 pixels/m² 28224pixels/m² 25600 pixels/m²
Module Dimensions (W × H) (mm) 250 × 250 / 250×500 250 × 250 / 250×500 250 × 250 / 250×500 250 × 250 / 250×500
Panel Dimensions (mm) 500 × 500 × 80 500 × 500 × 80 500 × 500 × 80 500 × 500 × 80
500 × 1000 × 80 500 × 1000 × 80 500 × 1000 × 80 500 × 1000 × 80
NO .of Modules Per Panel (W × H) 2 × 2 2 × 2 2 × 2 2 × 2
Physical Resolution of Module (W × H) 64×64/64×128 52×52/52×104 42×42/42×84 40×40/40×80
Physical Resolution of Panel (W × H) 128×128/128×256 104×104/104×208 84×84/84×168 80×80/80×160
Panel Material Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum
Single Cabinet Weight 9/ 15 kg/panel 9/ 15 kg/panel 9/ 15 kg/panel 9/ 15 kg/panel
Gray Scale 14-16 bit 14-16 bit 14-16 bit 14-16 bit
Colors 281 trillion 281 trillion 281 trillion 281 trillion
Contrast Ratio 4,000: 1 4,000: 1 4,000: 1 4,000: 1
Average Power Consumption 75 /150 W/m² 75 /150 W/m² 75 /150 W/m² 75 /150 W/m²
Max Power Consumption 225 /550 W/m² 225 /550 W/m²l 225 /550 W/m² 225 /550 W/m²
Operating Temp/Humidity -20ºC - 60ºC / 10% - 60% -20ºC - 60ºC / 10% - 60% -20ºC - 60ºC / 10% - 60% -20ºC - 60ºC / 10% - 60%
Storage Temp/Humidity -30ºC - 60ºC / 10% - 60% -30ºC - 60ºC / 10% - 60% -30ºC - 60ºC / 10% - 60% -30ºC - 60ºC / 10% - 60%
Refresh Rate >1,920 Hz >1,920 Hz >1,920 Hz >1,920 Hz
Brightness >5000 nits >5000 nits >5000 nits >5000 nits
Horizontal Viewing Angle 160° 160° 160° 160°
Vertical Viewing angle 140° 140° 140° 140°
Expected Lifetime 100, 000 Hrs 100, 000 Hrs 100, 000 Hrs 100, 000 Hrs
Max Stacking 10/20 10/20 10/20 10/20
Max Hanging 10/20 10/20 10/20 10/20
Servicing Front / Rear Front / Rear Front / Rear Front / Rear
IP Rating (Front/Rear) IP 65/ IP 54 IP 65/ IP 54 IP 65/ IP 54 IP 65/ IP 54
Scan Method 1/16 Scan 1/13 Scan 1/7 Scan 1/10 Scan


Product Features

►TUV Certificated and Reddot Awarded

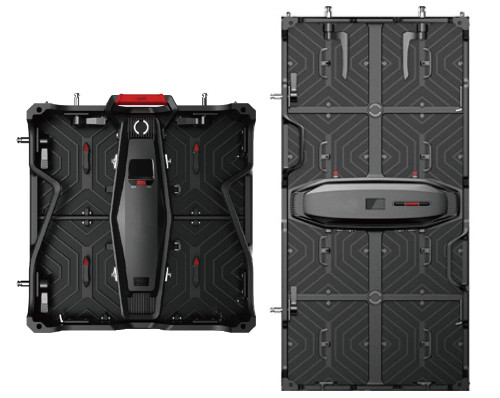

►Cabinet 500mm*500mm,or 500mm*1000mm
►Curvilinear,Concave,Convex
►Front and Rear access

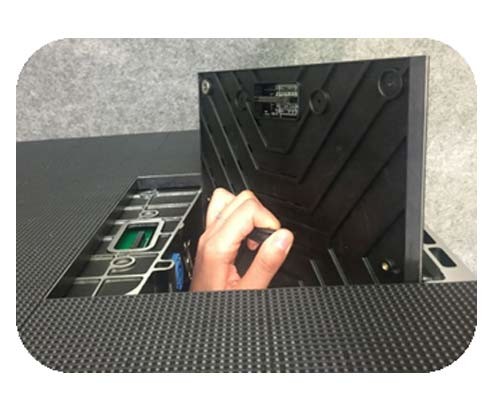

Fast Installation and Easy Maintenance
→Truss hanging anf ground support both available
→Cable-less between modules
→Front and rear access
→Tools free installation

Outdoor Rated
→Outdoor waterproof with IP65
→Suitable brightness adjustable for outdoor day and night
→Deep black levels,contrast ratio 4000:1

Slim,Light Weight and Quiet
→500mm*500mm or 500mm*1000mm options
→80mm thickness
→Fanless design



Superior Electrical Features
→Dual signal backup port
→UI LCD monitoring display indicates the status


Fast Installation Durable P4.81 Outdoor Rental P3.91 Led Display Screen


Fast Installation Durable P4.81 Outdoor Rental P3.91 Led Display Screen

Fast Installation Durable P4.81 Outdoor Rental P3.91 Led Display Screen



Fast Installation Durable P4.81 Outdoor Rental P3.91 Led Display Screen

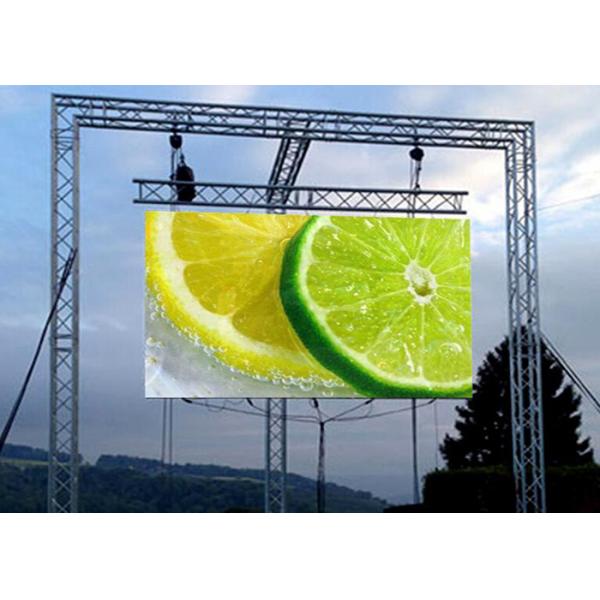

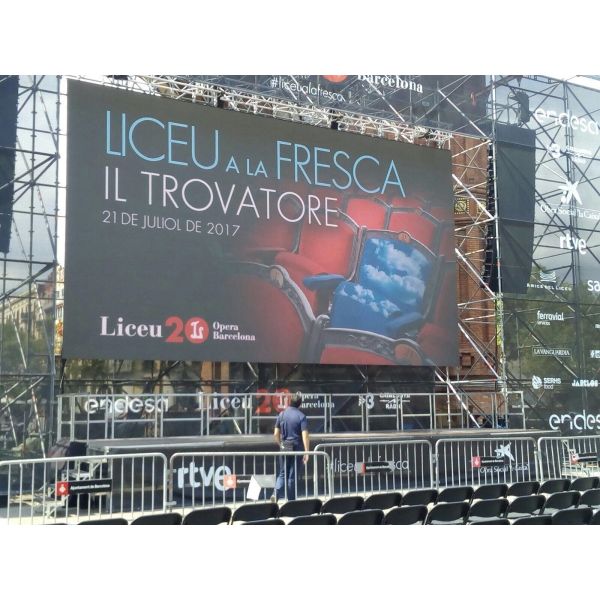

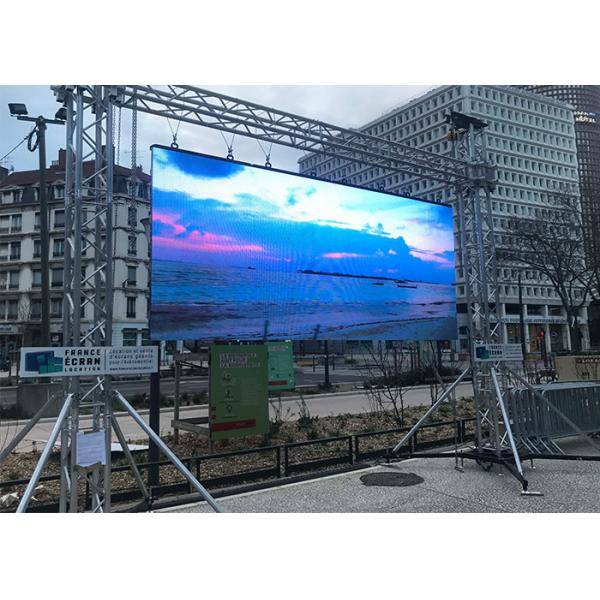

Application

Fast Installation Durable P4.81 Outdoor Rental P3.91 Led Display Screen

Fast Installation Durable P4.81 Outdoor Rental P3.91 Led Display Screen

Fast Installation Durable P4.81 Outdoor Rental P3.91 Led Display Screen

​Fast Installation Durable P4.81 Outdoor Rental P3.91 Led Display Screen



Q1:Are you factory or a trade company?
A1:We are a factory owing professional R & D department and production lines with 14 years of experience in led display.

Q2:Why I should choose your company ?
A2:We have been focusing on the development of led svreen and have a good reputaion in the market.We strictly follow up the requirements of customers,and are committed to achieve a win-win situation with customers.Whatever the products stability or service we will do better and better.

Q3:How can I get technical support?
We treasure every customer that shake hands with us . We offer you TEAMVIEWER help by Online Video and can send professional engineer to your city to offer on-site guide .



Packaing and shipping


Fast Installation Durable P4.81 Outdoor Rental P3.91 Led Display Screen
About Us
Fast Installation Durable P4.81 Outdoor Rental P3.91 Led Display Screen

Fast Installation Durable P4.81 Outdoor Rental P3.91 Led Display Screen
Our Company
LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
