Specifications
Brand Name :
Bako Vision
Model Number :
BF
Certification :
CE.FCC.TUV.ROHS
Place of Origin :
China
MOQ :
1 m²
Price :
Negotiating
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000 m²/month
Delivery Time :
20 days
Packaging Details :
Plywood Case/ Flight Case
Processing :
16 Bit
Colours :
281 Trillion
Contrast Ratio :
2000:1/4000:1
Servicing :
Front
IP Rating :
IP43/IP54
Refresh Rate :
>1920 Hz
Life Span :
100,000hrs
Warranty :
2 Years
Description

180 or 360 Degree Lightweight Front Service LED Foldable Display Screen with Hanging Stacking and Attaching14-BF.pdf

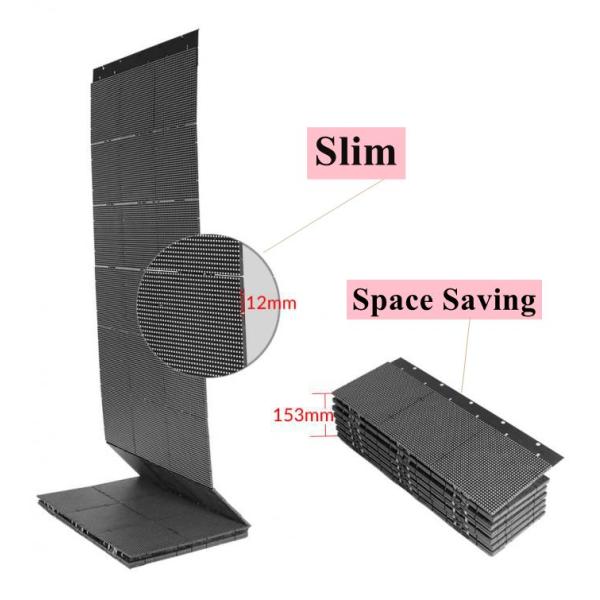

Lightweight Front Service LED Foldable Display Feature

Easy and Fast Installation: easy connection design saves 80% labor cost

Variable Foldable Module: 180 or 360 Degree Foldable

Lightweight Front Service LED Foldable Display Specification

BF-6 BF-7 BF-10 BF-12
Physical Pitch 6 mm 7.8 mm 10 mm 12 mm
Pixel Configuration SMD 3528 SMD 3528 / SMD 3535 SMD 3528 SMD 3528
Pixel Density 27,556 pixels/m² 16,384 pixels/m² 10,000 pixels/m² 6,889 pixels/m²
United Size (mm) 192 × 192 250 × 250 160 × 160 192 × 192
Physical Resolution of Unit ( W× H) 32 × 32 32 × 32 16 × 16 16 × 16
Weight(kg/m²) <10 <9 <9 <9
Processing 16 bit 16 bit 16 bit 16 bit
Colours 281trillion 281trillion 281trillion 281trillion
Contrast Ratio 2,000 : 1 / 4,000 : 1 2,000 : 1 / 4,000 : 1 2,000 : 1 / 4,000 : 1 2,000 : 1 / 4,000 : 1
Average Power Consumtion 150 / 310 W/m² 90 / 200 W/m² 110 W/m² 75 W/m²
Max Power Consumption 375 / 775 W/m² 225 / 500 W/m² 275 W/m² 187 W/m²
Operating Temp/Humidity -10ºC- 60ºC / 10%-60% -10ºC- 60ºC / 10%-60% -10ºC- 60ºC / 10%-60% -10ºC- 60ºC / 10%-60%
Storage Temp/Humidity -30ºC- 60ºC / 10%-60% -30ºC- 60ºC / 10%-60% -30ºC- 60ºC / 10%-60% -30ºC- 60ºC / 10%-60%
Refresh Rate >1920 Hz >1920 Hz >1920 Hz >1920 Hz
Brightness 2,000 / 4,000nits 1,500 / 6,000nits 1,500nits 1,500nits
Foldable Angle 360° 360° 360° 360°
Max Length of Control Box 6m 6m 6m 6m
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front Front Front Front
IP Rating (Front/Rear) IP 43 / IP 54 IP 43 / IP 54 IP 43 / IP 54 IP 43 / IP 54

180 / 360 Degree Lightweight Front Service LED Display Foldable With Hanging Stacking / Attaching

Our Services

Pre-sale service:

1. Inquiries will be replied within 24 hours.

2. Market research and forecast for the customer.

3. Provide unique and professional solutions based on customer's requirement.

4. Datasheet and samples offered.

5. Other required services such as special packing design, factory visiting and so on.

In-sale service:

1. Tracking producing procedures all the time.

2. Provide photos and videos as per customer's requirement during production.



After-sale service:

1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

2. Warranty: 24 months.

3. Free technician training.

4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control

system software CD and so on.

FAQ

Q1. Do you provide samples?is it free or extra?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q2.How to order?

A:Please send us your purchase order by Email or we can make you proforma invoice under your request.

We need to know the following information for your order before sending you PI.

1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.

2)Delivery time required.

3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.

4)Forwarder's contact details if there's any in China.

Q3. Do you offer guarantee for the products?

A: Yes,we offer 2-5 years warranty to our products.
