Specifications
Brand Name :
Bako Vision
Model Number :
BP
Certification :
CCC,CE,FCC,ETL
Place of Origin :
China
MOQ :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000sqm/ Month
Delivery Time :
10~15 wds
Packaging Details :
Plywood case / Flight Case
Refresh Rate :
2880 Hz
Contrast Ratio :
4000 : 1
Module Size :
280mm x 210mm
Cabinet Size :
572 x 1920 x 32mm
Grey Scale :
16 bit
Control System :
Novastar
Price :
Negotiation
Description


Indoor LED Poster Digital Advertising Display for Hanging and Stacking​

Features:

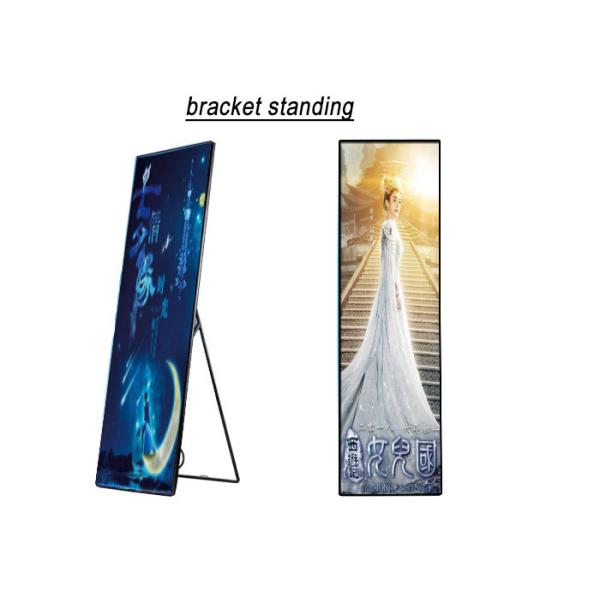

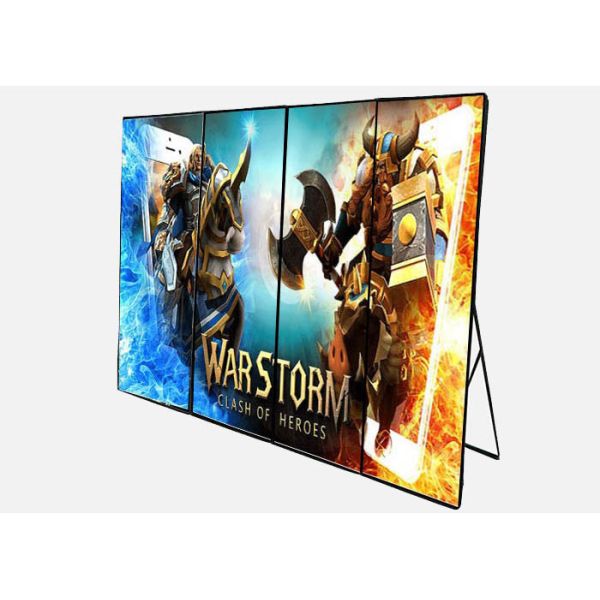

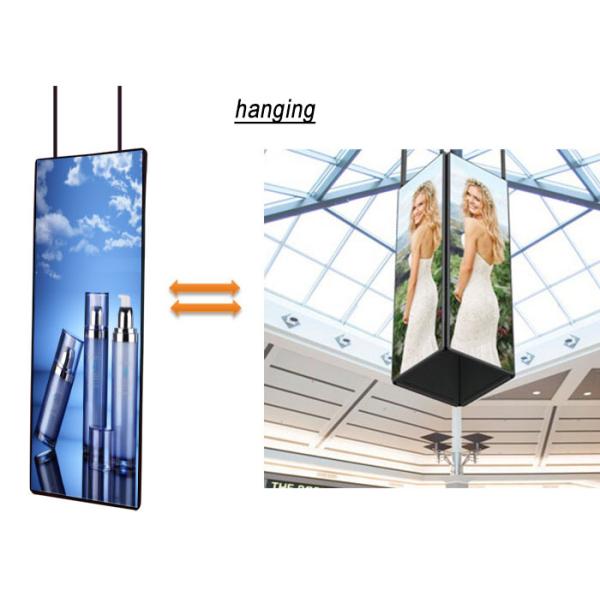

1. Multiple installation and form changeable:

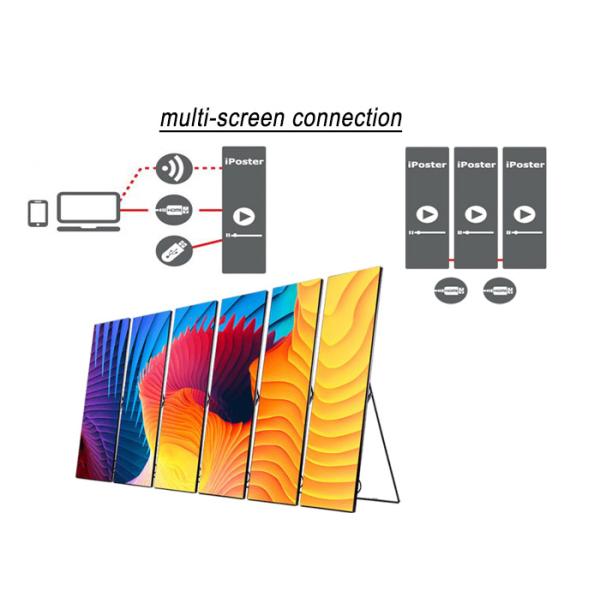

Braket standing,hanging,multi-screen cascade,wall mounted,etc.

2. Ultra slim and lightweight
Slim edge 6mm,display thickness 32mm
Net weight 28kg per set

3. Superior Electrical Features
Refresh rate 2880 Hz
160 degree viewing angle
4000 : 1 contrast ratio

4. Fashional advertisement and easy to move
Bottom wheels design enable you to move the display much easily.
Indoor LED Poster Digital Advertising Display for Hanging and Stacking
Indoor LED Poster Digital Advertising Display for Hanging and Stacking

Indoor LED Poster Digital Advertising Display for Hanging and Stacking


Parameters:

Pixel Pitch1.9mm2.5mm
Pixel ConfigurationSMD 1010SMD 2020
Pixel Density279,936pixels/m²169,344pixels/m²
Module Dimention160mm x 160mm280mm x 210mm
Whole Set Dimention640 x 1920 x 32mm568 x 1898 x 32mm
Resolution of Module84 x 84112 x 84
Panel MaterialAluminum
Cabinet Weight28 kg
Gray Level16 bit(281 trillion colors)
Contrast Ratio4000 : 1
Average Power Consumption250W/Set200W/Set
Max Power Consumption750W/Set600W/Set
Driving Method1/32 Dynamic Scan
Brightness1000 nits
Refresh Rate2880 ~ 3840 Hz
Viewing Angle(V/H)160°/ 140°
Frame Rate60 fps
Operating Temp/Humidity-10℃~60℃ / 10%~60%
Storage Temp/Humidity-30℃~60℃ / 10%~60%
IP Rating(Front/Rear)IP40
Expected Lifetime100,000 Hrs

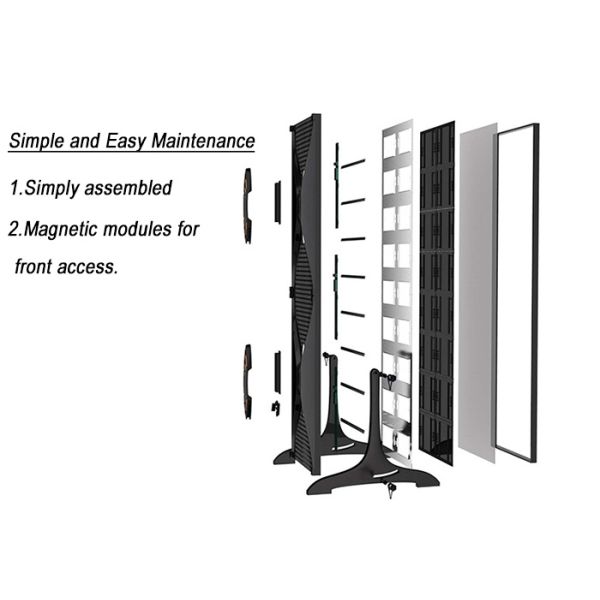

ServicingFront

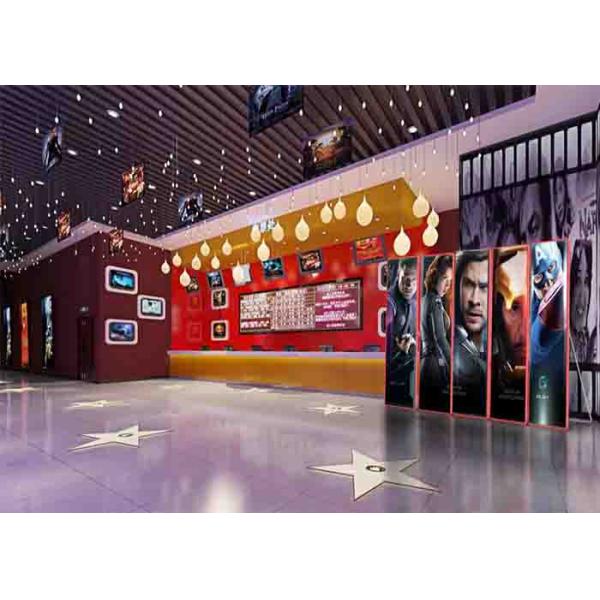

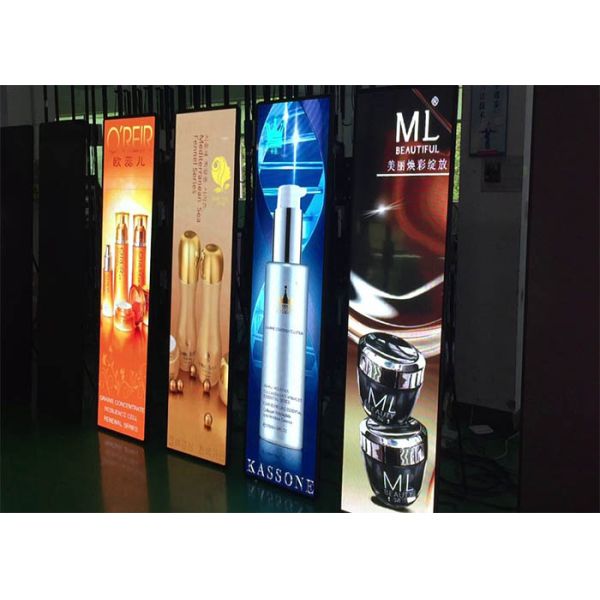

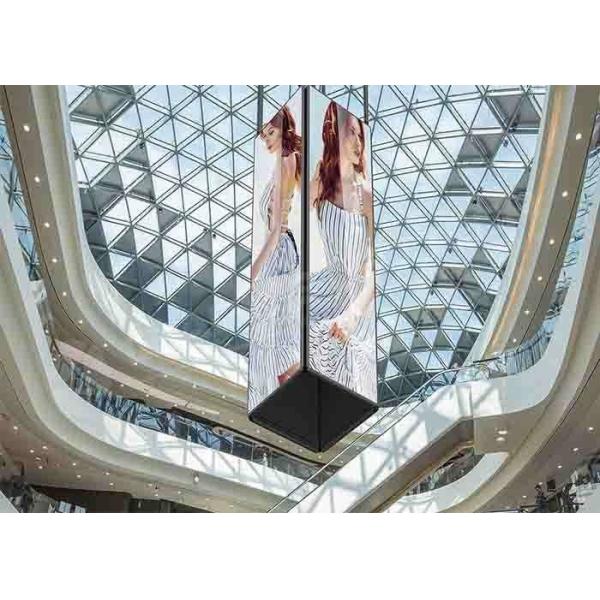

Cases for your reference:

Indoor LED Poster Digital Advertising Display for Hanging and Stacking

Indoor LED Poster Digital Advertising Display for Hanging and Stacking

FAQ

Q1. Do you provide samples?Is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone,Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.


Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-3 years warranty to our products.


Why choose us?

LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
