Specifications
Pixel Pitch :
4.81mm
Pixel density :
43,264 dots/㎡
Cabinet Size :
500 x 1000 x 80mm
Life span :
100000hours
Refresh rate :
1920Hz
Certification :
CC.UL,ETL
Brand Name :
Bako Vision
Model Number :
BOR Series
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C, D/P
Supply Ability :
8000square meter per month
Delivery Time :
15-25days
Packaging Details :
Flight case / Plywood case
Description

P4.81 Factory Price Outdoor LED Video Display Screen Panel Wall LED Tvs Full Color for Stage Event Live Show

P4.81 Digital Led Display Screen Features and Advantages:

  • Curved angle : ±10° adjustable, creative design to meet your requirement;
  • Panel Size: The Panel size is 500 x 500mm and 500 x 1000mm, there can make the screen size as : 4*3m ,6*4m,9*5m etc . It is suitable for 4:3 ,16:9 ratio ;Also you can adjust the screen size free as your wish.
  • High brightness: More than 6000nits
  • Convenient Assemble : Smart fast side locks make screen assemble fast and easier;
  • Seamless connection: superior color uniformity and stunning image quality, there is not black gap line on connection nor information missing;
  • Good heat dissipation: New cabinet design of LED screen without fan, good heat dissipation,due to die-casting alumium material ,concise, slim and light weight;
  • Convenient Control: Digital Video walls can be connected with nearly any equipment , including to PCs, DVD and camera . That is conveniently for you to present your data;
  • 2 Years Warranty : we can repair each LED lamps, so the cost of maintain is lower,and easy to repair;Also you can send back the module to us to fix.
  • High Quality : we use famous IC ,like MBI5020,MBI5024,MBI5030 and high quality lamp, Nationstar and so on, ensure high brightness;




P4.81 Digital Led Display Screen Specification

Physical Pitch 4.81mm
Pixel Configuration SMD2727
Pixel Density 43,264 pixels/Sqm
Module Dimensions(W x H) (mm) 250 x 250
Panel Dimensions (mm) 500 x 500 x 80 / 500 x 1000 x 80
Physical Resolution of Panel (W x H) 104 x 104 / 104 x 208
Panel Material Die-Casting Aluminum
Single Cabinet Weight 9 / 15 kg/panel
Processing 16bit
Colours 281 trillion
Contrast Ratio 4,000 : 1
Average Power Consumption 75 /150 W /panel
Max Power Consumption 225 /550 W /panel
Operating Temp/Humidity -20ºC - 60ºC / 10ºC - 60ºC
Storage Temp/Humidity -30ºC - 60ºC / 10ºC - 60ºC
Refresh Rate >1,920 Hz
Brightness ≥6,000nits
Servicing Front / Rear
IP Rating (Front/Rear) IP 65 / IP 54

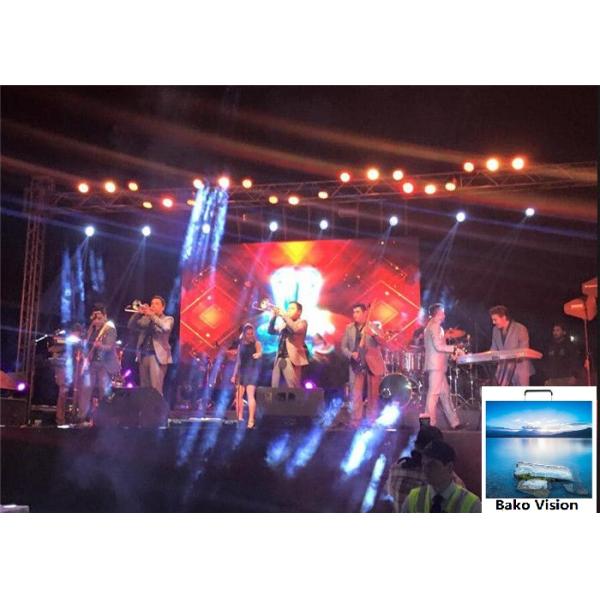

P4.81 Digital Led Display Screen Case
