Specifications
Brand Name :
Bako Vision
Model Number :
UHD
Certification :
CCC,CE,FCC,ETL
Place of Origin :
China
MOQ :
1 sqm
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000sqm/ Month
Delivery Time :
15~20 days
Packaging Details :
Plywood case / Flight Case
LED Lamp :
Kinglight
Moduel Size :
150mm x 168.75mm
Cabinet Size :
600mm x 337.5mm
Refresh Rate :
2880 Hz
Cabinet Weight :
6kg
Cabinet Thick :
60mm
Description

4K Resolution Indoor Fixed LED Display for Meeting Room / Monitoring Station Mounted

Features:

1. Multi-screen splitting for displaying multiple messages and great videoconferencing


2. 16:9 aspect ratio,Stunning life-like image quality with 4K UHD resolution

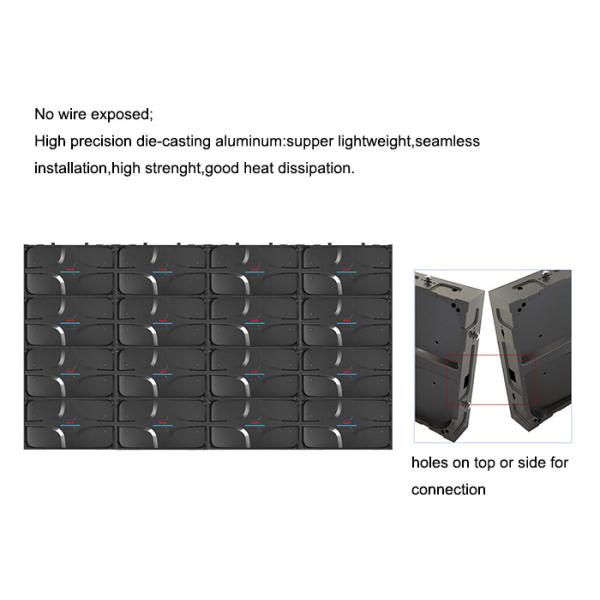

3. lightweight die cast aluminum frames for strength

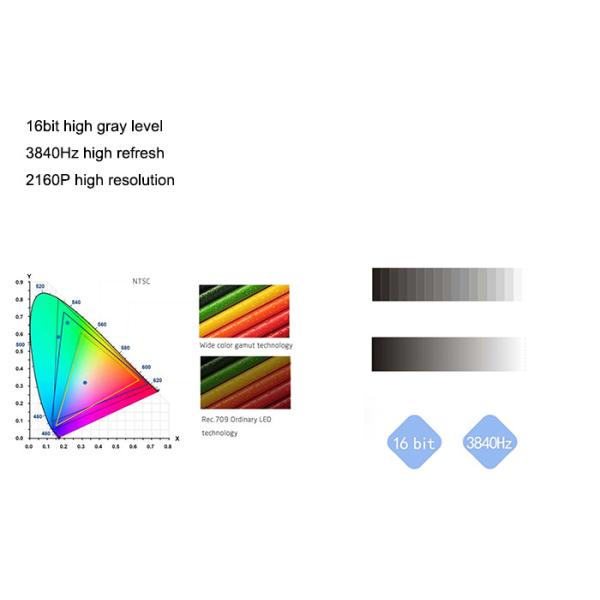

4. High gray scale, even at low brightness levels


5. Broadcast ready with high refresh rates

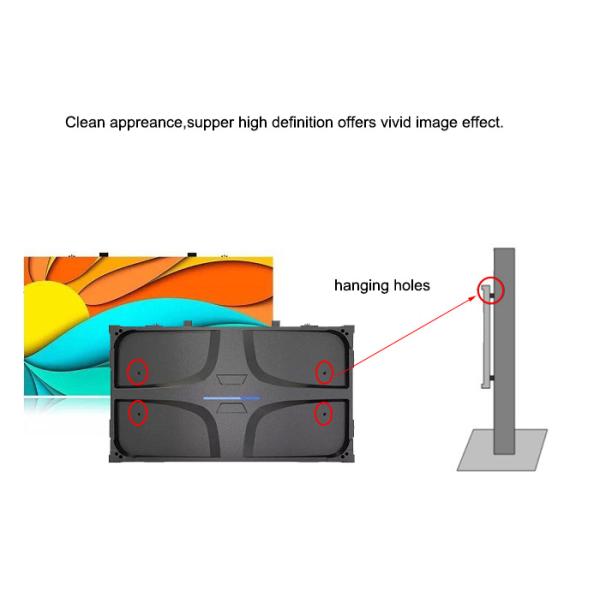

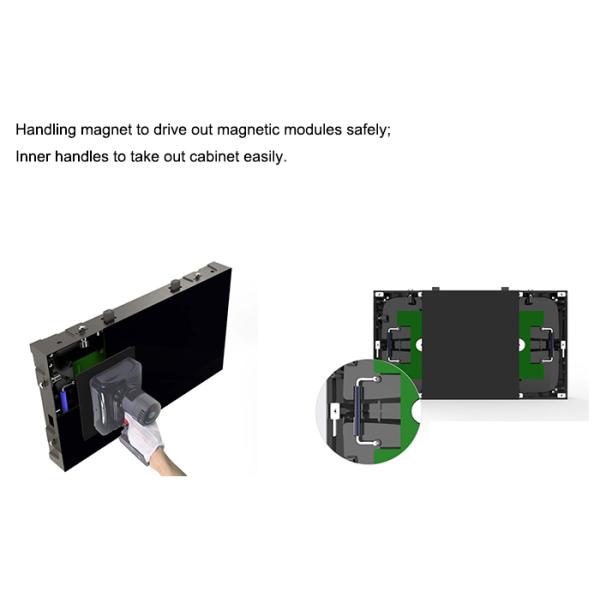

6. Fast lock system and magnetic modules for convenient installation and maintenance

4K Resolution Indoor Fixed LED Display for Meeting Room / Monitoring Station Mounted

4K Resolution Indoor Fixed LED Display for Meeting Room / Monitoring Station Mounted

4K Resolution Indoor Fixed LED Display for Meeting Room / Monitoring Station Mounted

4K Resolution Indoor Fixed LED Display for Meeting Room / Monitoring Station Mounted

Parameters:

Pixel Pitch 1.25mm 1.56mm 1.87mm 2.34mm
LED Type Black SMD1010
Pixel Density 648,000pixels/m² 414,720pixels/m² 288,000pixels/m² 184,320pixels/m²
Brightness 600 ~ 800 cds/m²
Moduel Size 150 x 168.75mm
Moduel Resolution 120 x 135 96 x 108 80 x 90 64 x 72
Cabinet Size 600 x 337.5mm
Cabinet Weight 6 kg
Viewing Angle H 160° / V 140°
Refresh Rate 2880 Hz
Average Power Consumption 300 W/sqm
Max Power Consumption 600 W/sqm
IP rating(Front/Rear) IP40 / IP 21
Certification

CCC,CE,FCC,ETL

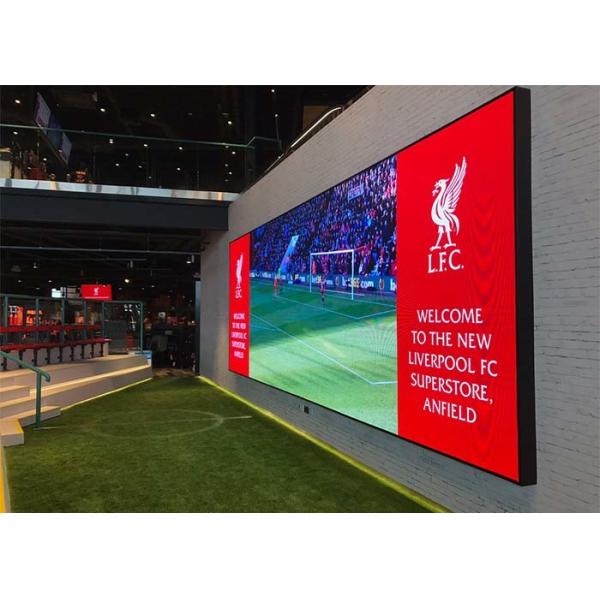

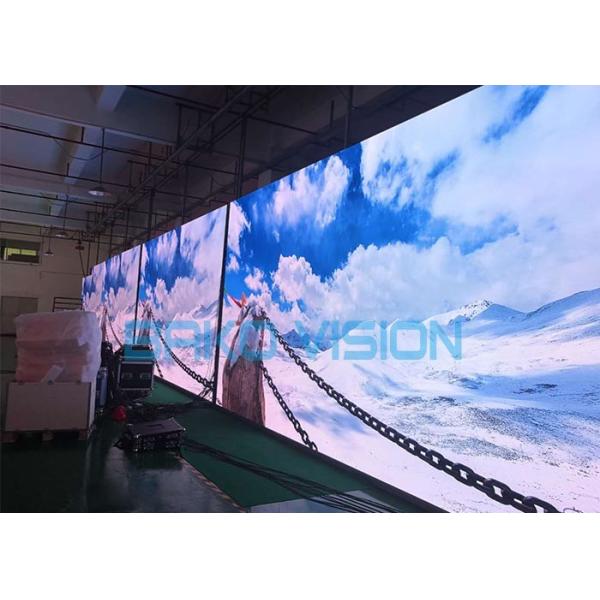

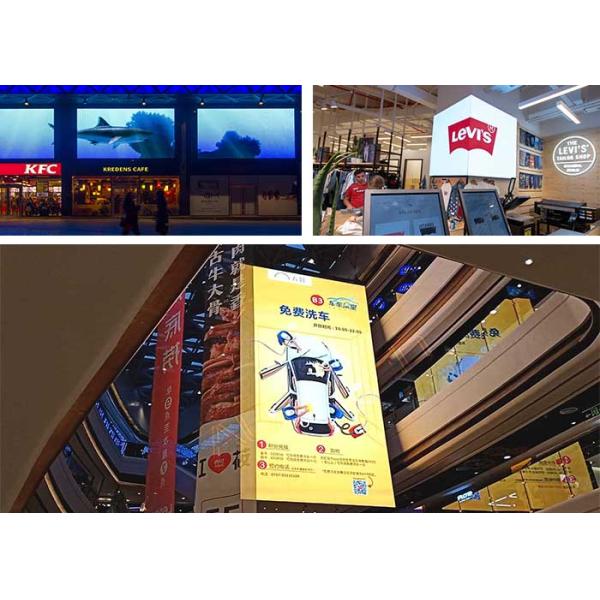

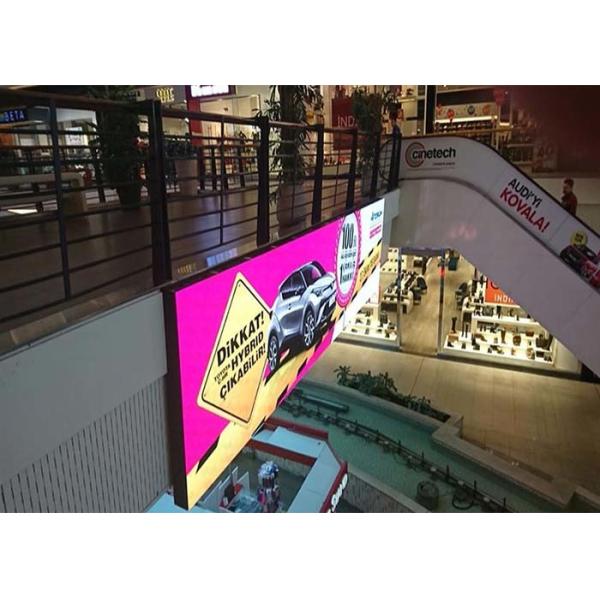

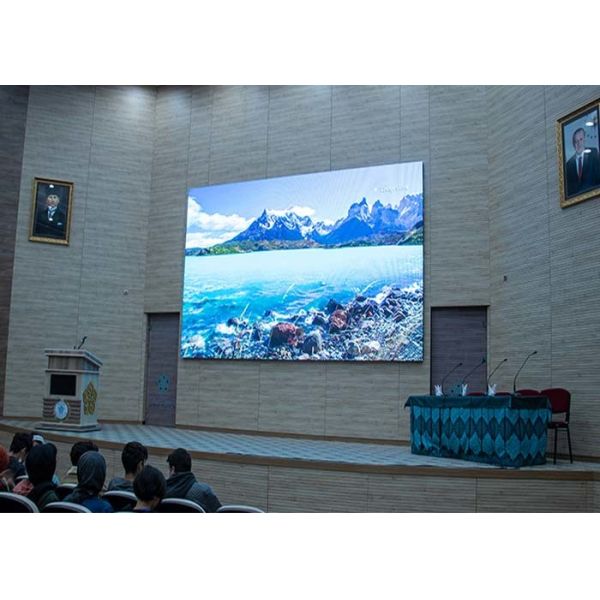

Cases for your reference:

4K Resolution Indoor Fixed LED Display for Meeting Room / Monitoring Station Mounted

FAQ:

1. How to choose a proper led screen?

Then you need to clarify below:

A: It's for indoor or outdoor?For fixed or rental?

B: Where will you install this screen?

C: What is the distance between audients and screen?

2. Which control system should I choose?

There is both synchronous and asynchronous control system on the market of LED Display. For the big size led screen(usually more than 20sqm),it is suitable to use synchronous control system. For those displays which below

20sqm.It's up to you to use synchronous and asynchronous.
But the refresh rate of asynchronous control system is much lower than synchronous control system.

3.How about your package?
We usually pack in wooden boxes or flight case.It decide on your size and your needs.We respect your choice.

About Our Company:

LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
