Specifications
Brand Name :
Bako Vision
Model Number :
BOR Series
Certification :
CE,UL,FCC,ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C, D/P
Supply Ability :
8000square meter per month
Delivery Time :
15-25days
Packaging Details :
Flight case / Plywood case
Pixels :
4.81mm
Cabinet Size :
500 x 500 x 80mm
Warranty :
2 years
Description

Pixel Pitch 4.81mm Outdoor Waterproof Rental Floor LED Display For Wedding and Stage

Floor Screen Quick Details:
1, Pixel Pitch: 4.81 mm.
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size: 500 x 500 x 80mm / 500 x 1000 x 80mm, cabinet weight: 9 / 15kg/Panel.
5, Warranty: 2years.
6, Recommended minimum viewing distance: 5m.

Floor Screen Description:
Bako Vision outdoor rental led screen pixel include 3.91mm, 4.81mm, 5.95mm, 6.25mm, within these pixels, 3.91mm, 4.81mm are the most hot-selling and highest cost-effective series.

Floor Screen Application:
Bako Vision outdoor led electronic video display are widely installed on poles, single pole-mounted, dual pole-mounted, or tri-pole mounted, doing stage performance, wedding, car show etc.

Floor Screen Features:
1, High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
2, Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
3, High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
4, Good heat dissipation with fans and using meanwell power supply, long lifespan.
5, You can use it both on floor or normal use, there just add standing and glass once you want to use this screen on floor.

Floor Screen Advantages:
1, High quality SMD led panels, stable and high durability.
2, Without ghosting, clear and clean.
3, High fresh rate up to 2,000Hz, high contrast to 4,000:1, vivid color.

Floor Screen Specification:

Physical Pitch 4.81mm
Pixel Configuration SMD2727
Pixel Density 43,264 pixels/Square Meter
Module Dimensions(W x H) (mm) 250 x 250
Panel Dimensions (mm) 500 x 500 x 80 / 500 x 1000 x 80
Physical Resolution of Panel (W x H) 104 x 104 / 104 x 208
Panel Material Die-Casting Aluminum
Single Cabinet Weight 9 / 15 kg/panel
Processing 16bit
Colours 281 trillion
Contrast Ratio 4,000 : 1
Average Power Consumption 75 /150 W /panel
Max Power Consumption 225 /550 W /panel
Operating Temp/Humidity -20ºC - 60ºC / 10ºC - 60ºC
Storage Temp/Humidity -30ºC - 60ºC / 10ºC - 60ºC
Refresh Rate >1,920 Hz
Brightness ≥6,000nits
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Expected Lifetime 100,000 Hrs
Servicing Front / Rear
IP Rating (Front/Rear) IP 65 / IP 54


Floor Screen Case:

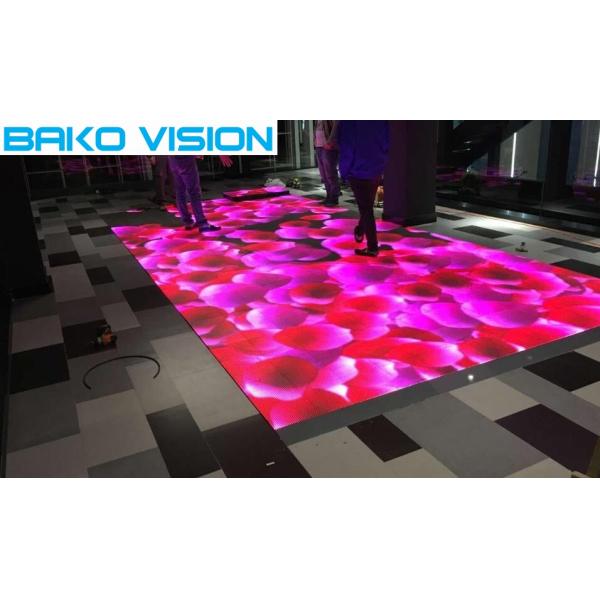

Backdrop Floor Outdoor Rental LED Display P4.81 Full Color For Outdoor Wedding



Floor Screen FAQ:

Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer located in Shenzhen since 2005.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 5-7 days, mass production time needs 2-3 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2 years free warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
