Specifications
Brand Name :
Bako Vision
Model Number :
BOR-III
Certification :
CCC, CE, ETL, ROHS
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 M2/Month
Delivery Time :
20 days
Packaging Details :
Wooden Case/ Flight Case
IC :
MBI 5124 /5153
Pixel Configuration :
SMD2727
Panel Dimensions (mm) :
500X500/500X1000
Panel Material :
Die-Casting Aluminum
Receiver Card :
Nova
Lamp :
Nation Star/ Kinglight
Brightness :
6000 Nits
Life Span :
100,000 Hrs
Processing :
16 Bit
Refresh Rate :
>1920 Hz
Use Voltage :
AC 110-240V
Installation :
Hanging, Base Standing
Description

SMD P5.95mm Waterproof IP65 Full Color Outdoor LED Display For Rental Application

Waterproof IP65 Full Color Outdoor LED Display SMD P5.95mm Rental Application

Products features

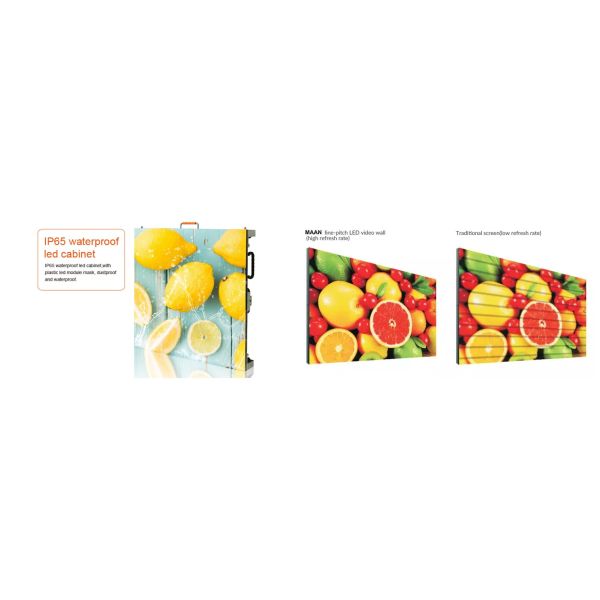

1.High Ingress protection:IP65/IP54(front/rear).


2.Equipped with exclusive quick assembly components for easy large screen assembly.

3.High resolution could guarantee superior performance even with small screen size.


4.Seamless splicing :Give you a better visual experience.

5.Support a series of detection functions, for example detection of cables failure, detection whether the door of cabinets closed or not, fans` speed monitoring, three-way voltage monitoring and temperature monitoring etc.

6.Compatible with front and rear maintenance mode, optional for pre-magnetic maintenance and post-screw maintenanceSelf-locking connection for second speed installation

Waterproof IP65 Full Color Outdoor LED Display SMD P5.95mm Rental Application

Parameter

BOR-III-5
Physical Pitch 5.95mm

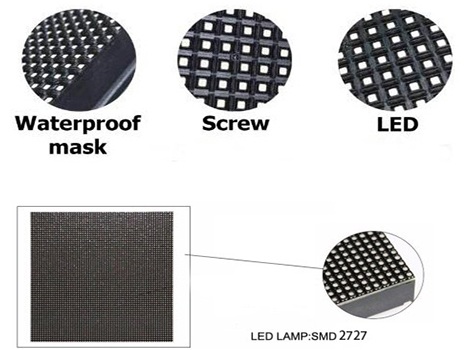

Pixel Configuration SMD 2727
Pixel Density 28,224 pixels/ m²
Module Dimensions(W*H)(mm) 250*250
Panel Dimensions(mm) 500*500*80/500*1000*80
NO.Of Modules Per Panel (W*H) 2*2/2*4
Panel Material Die-Casting Aluminum
Colors 281Trillion
Processing 16 Bit
Physical Resolution of Module(W*H)(mm) 42*42
Physical Resolution of Panel(W*H)(mm) 84*84 / 84*168
Single Cabinet Weight 9/15 kg/ panel
Average Power Consumption 75/ 150W / panel
Max Power Consumption 225/ 550w / panel
Brightness >6,000 nits
Viewing Angle H:160°/ V:140°
Operating Temp/ Humidity -20ºC-60ºC / 10%-60%
Storage Temp/ Humidity -30ºC-60ºC / 10%-60%
Expected Lifetime 100,000 Hrs
Servicing Front / Rear
IP Rating(Front/Rear) IP65 / IP 54
Max Stacking and Hanging 20/10
Refresh Rate >1920 HZ

Pruduct details

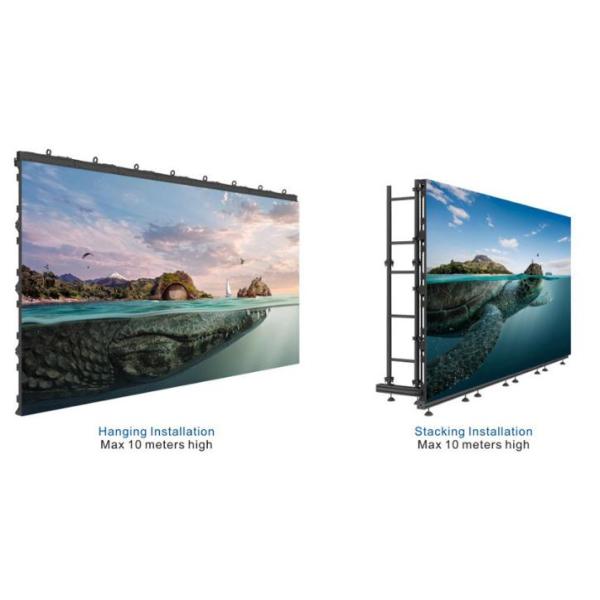

Hanging and stacking installation both available.

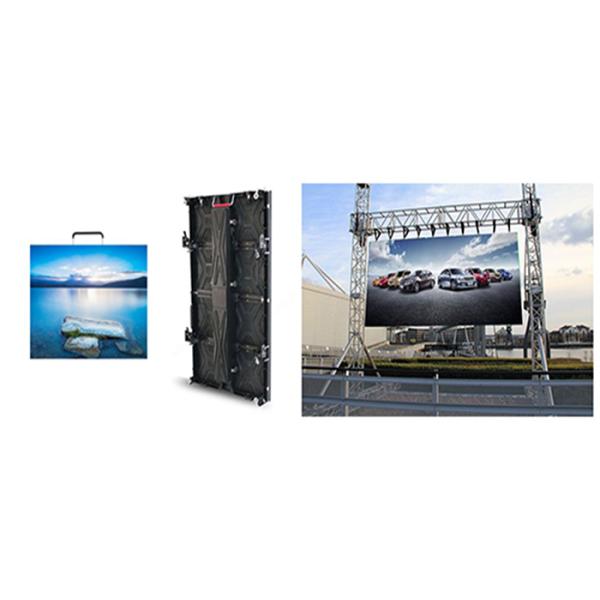

Rental die-casting aluminum structure:Rock solid, not easy to deform.

Seamless splicing : give you a better visual experience.

Waterproof IP65 Full Color Outdoor LED Display SMD P5.95mm Rental Application

Waterproof IP65 Full Color Outdoor LED Display SMD P5.95mm Rental Application

Good quality:All products have passed CE, ROHS, FCC certification.

Lower power consumption: Average Power Consumption is 420w/m²,energy saving and environmental protection.

Waterproof IP65 Full Color Outdoor LED Display SMD P5.95mm Rental Application

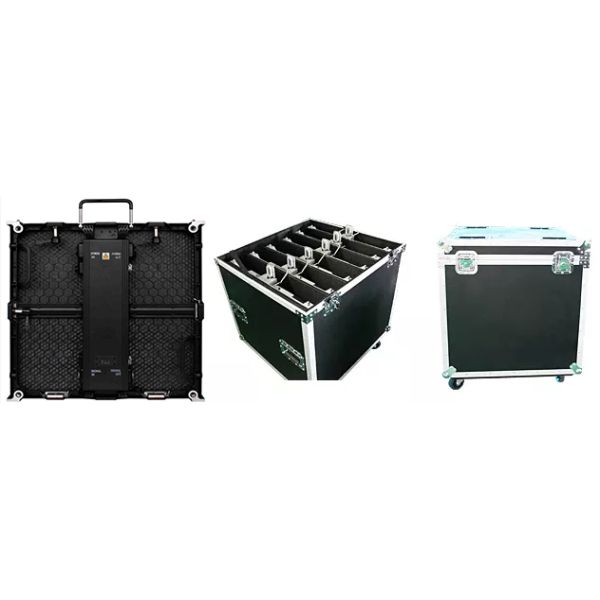

Packing- Flight case

Waterproof IP65 Full Color Outdoor LED Display SMD P5.95mm Rental Application

Outdoor Rental LED Display is really popular in today's market,it has various applications.

Application

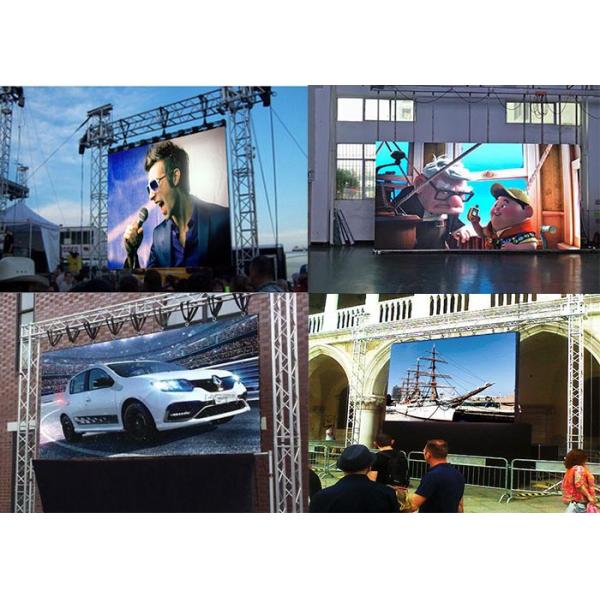

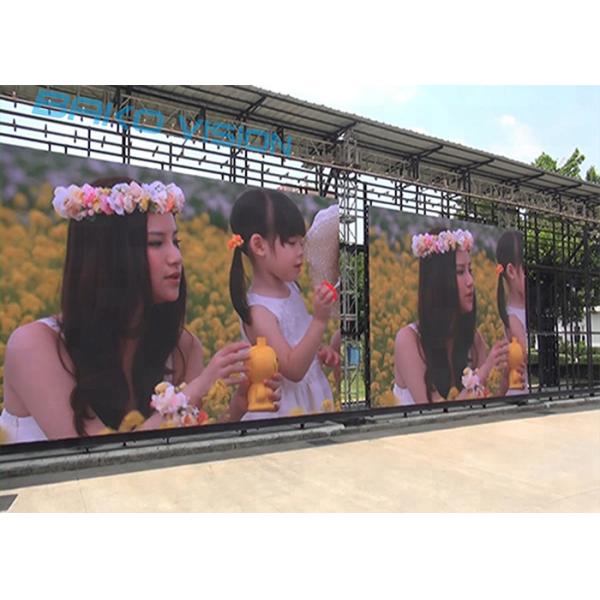

Outdoor advertising, outdoor shows, entertainment occasion, event, stage, touring, show, festival, conference, exhibition, wedding, party, theme parks, etc.

Waterproof IP65 Full Color Outdoor LED Display SMD P5.95mm Rental Application

Our company.

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

Waterproof IP65 Full Color Outdoor LED Display SMD P5.95mm Rental Application

Feedback

1. We rely on our product quality and customer satisfaction to succeed. Therefore, your feedback is extremely important, please leave good feedback if you get satisfied with our goods and service.
2. We care about our valued customers, and will always try to help you. Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have, and will try our best to resolve the issues.
3. Please email us before leaving any negative feedback or opening any dispute on the site. We will help you to resolve the problem.

Tips
* Package:Wooden package, Flight case.
* Shipment:By road,sea and air
* Delivery time:20-25 working days
* Payment:T/T, 30% deposits, 70% balance before delivery
* Shipping port:Shenzhen,China
* Warranty time:2 years
