Specifications
Brand Name :
Bakovision
Model Number :
BOF Series
Certification :
CE ETL FCC CCC
Place of Origin :
China
MOQ :
1 Sqm
Price :
$350
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000 sqm/month
Delivery Time :
15-25 days
Packaging Details :
Wooden case or flight case
LEDs :
Nationstar
Pannel Material :
Steel
Servicing :
Front/Rear
Viewing Angle :
160°/140°
Refresh Rate :
>1920Hz
Contrast Ratio :
2000:1
Brightness :
>6500nits
IP Rating(Front/Rear) :
IP65
Description

Waterproof IP65 P8mm P10mm Outdoor Fixed LED Billboard Display Screen Led Panel Led Tvs
Features and Advantages:

Smart Cabinet Design

  • IP65 Ingress rate for extreme weather protection
  • Cold rolled steel with extra powder coating for anti-rust
  • The Resolution can be adjusted by changing modules directly without moving
  • Side handle convienent design for easy installation
  • Outdoor Fixed Billboard LED Display Screen Panel Led Tvs Wall P8 P10 For Advertising

High Visibility

  • Brighter even when in sunny days
  • High color uniformity and consistence
  • High definition and contrast
  • The resolution can be adjusted by changing modules directly

High Clarity SMD Technology

  • Closer viewing distance
  • Wider viewing angle
  • Front or rear serviceable


Specification

BOF-8BOF-10
Physical Pitch8mm10mm
Pixel ConfigurationSMD3535SMD3535
Pixel Density15,625 pixels/Sqm10,000 pixels/Sqm
Module Dimensions(W x H) (mm)256 x 256 320 x 320
Panel Dimensions (mm)1280 x 768 x 1501280 x 960 x 150
NO. of Modules Per Panel (W x H)5 x 34 x 3
Physical Resolution of Module (W x H)32 x 3232 x 32
Physical Resolution of Panel (W x H)160 x 96128 x 96
Panel MaterialSteal / AluminumSteal / Aluminum
Weight (kg/Sqm)65 / 4565 / 45
Processing16bit16bit
Colours281 trillion281 trillion
Contrast Ratio2,000 : 12,000 : 1
Average Power Consumption360 W /panel360 W /panel
Max Power Consumption900 W /panel900 W /panel
Brightness>6,500 nits>6,500 nits
Refresh Rate>1,920 Hz>1,920 Hz
Vertical Viewing Angle160°160°
Horizontal Viewing Angle140°140°
Expected Lifetime100,000 Hrs100,000 Hrs
ServicingFront / RearFront / Rear
IP Rating (Front/Rear)IP 65 / IP 54IP 65 / IP 54
Operating Temp/Humidity-20ºC - 50ºC / 10ºC - 90ºC-20ºC - 50ºC / 10ºC - 90ºC
Storage Temp/Humidity-20ºC - 50ºC / 10ºC - 90ºC-20ºC - 50ºC / 10ºC - 90ºC


Case

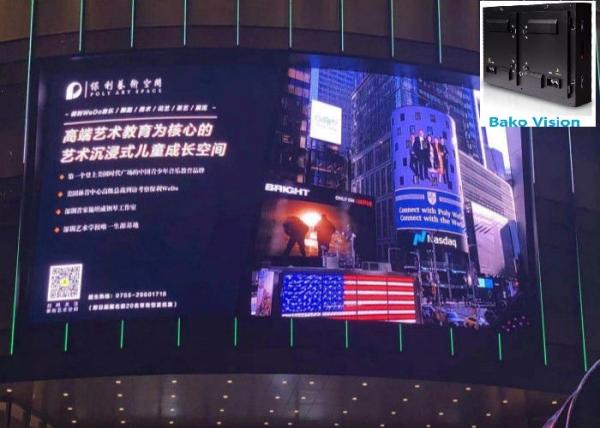

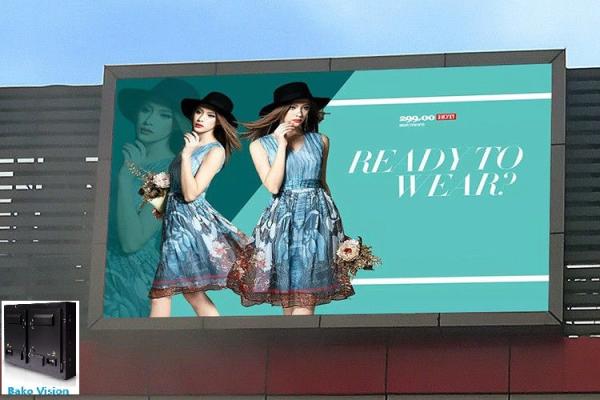

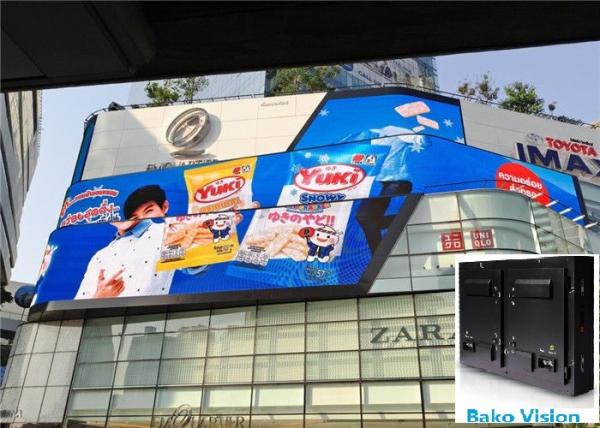

Outdoor Fixed Billboard LED Display Screen Panel Led Tvs Wall P8 P10 For Advertising

FAQ

1. Are you trading company or manufacturer?
We are a professional led screen manufacturer located in Shenzhen since 2005.

2. How to payment?
We accept the L/C, T/T.

3. What is the packing method?
We usually use plywood case or flight case.

4. How about the delivery time?
We will ship within 15-25 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.

5. Do you provide samples ? Is it free or extra?
We provide samples if you need, but the customers have to pay the sample cost and the courier cost.

6. How do you ship the goods?
We usually ship by DHL, UPS, FedEx or TNT. In addition, Airline and sea shipping also optional.


Why choose us?
1. Superior quality
We are the professional manufacturer of led display. All of our products are guaranteed quality. All our products are made of branded wicks and have undergone strict quality testing. We hope we can establish long-term business relations with our customers.
2. Attractive design
Our company are equipped with professional R&D department. We can provide customized design for our customers. We will also offer a most reasonable and scientific solution for our customers.
3. Professional consulting services
Our company has technical personnel who are specially responsible for customer service, who will provide product maintenance, product use and technical consultation for you at any time.
4. Perfect after-sales services

  • 2 years free maintenance.
  • 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers.
  • Free training for customers in factory.
  • Can Arrange engineer go to your place to support installation.
