Lightweight Outdoor Rental LED Display Screen High Brightness Video Wall For Stage
Lightweight Outdoor Rental LED Display Screen High Brightness Video Wall For Stage
Lightweight Outdoor Rental LED Display Screen High Brightness Video Wall For Stage
Lightweight Outdoor Rental LED Display Screen High Brightness Video Wall For Stage
Lightweight Outdoor Rental LED Display Screen High Brightness Video Wall For Stage
Lightweight Outdoor Rental LED Display Screen High Brightness Video Wall For Stage
Lightweight Outdoor Rental LED Display Screen High Brightness Video Wall For Stage
Lightweight Outdoor Rental LED Display Screen High Brightness Video Wall For Stage
Lightweight Outdoor Rental LED Display Screen High Brightness Video Wall For Stage
Lightweight Outdoor Rental LED Display Screen High Brightness Video Wall For Stage
Specifications
Brand Name :
Bako Vision
Model Number :
BOR-I
Certification :
CCC.CE.ETL.FCC
Place of Origin :
China
MOQ :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 m²/month
Delivery Time :
20 days
Packaging Details :
Flight Case
Pixel Pitch :
3.91mm
Panel Material :
Die-casting Aluminum
Processing :
16 bit
Refresh Rate :
>1920 Hz
Brightness :
>6000 nits
Servicing :
Front/Rear
Colors :
281 trillion
Contrast Ratio :
4000:1
Price :
$399~999
Description

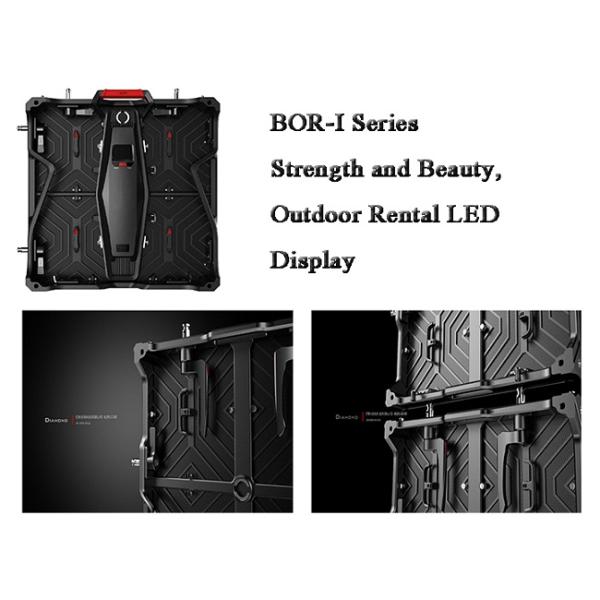

Outdoor Rental LED Display Screen Waterproof High Brightness Video Wall Rate Slim and Lightweight For Stage


Specification

BOR-I-3 BOR-I-4 BOR-I-5 BOR-I-6
Physical Pitch 3.91mm 4.81 mm 5.95mm 6.25 mm
Pixel Configuration SMD 1921 SMD 2525 SMD 2525 SMD 2727
Pixel Density 65536pixels/m²
 43264 pixels/m²
 28224 pixels/m²
 25600 pixels/m²
Module Dimensions (W × H) (mm) 250 × 250 / 250×500 250 × 250 / 250×500 250 × 250 / 250×500 250 × 250 / 250×500
Panel Dimensions (mm) 500 × 500 × 80 / 500 × 1000 × 80 500 × 500 × 80 / 500 × 1000 × 80 500 × 500 × 80 / 500 × 1000 × 80 500 × 500 × 80 / 500 × 1000 × 80
NO .of Modules Per Panel (W × H) 2 × 2 2 × 2 2 × 2 2 × 2
Physical Resolution of Module (W × H) 64×64/64×128 52×52/52×104 42×42/42×84 40×40/40×80
Physical Resolution of Panel (W × H) 128×128/128×256 104×104/104×208 84×84/84×168 80×80/80×160
Panel Material Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum
Single Cabinet Weight 9/ 15 kg/panel 9/ 15 kg/panel 9/ 15 kg/panel 9/ 15 kg/panel
Processing 16 bit 16 bit 16 bit 16 bit
Colours 281 trillion 281 trillion 281 trillion 281 trillion
Contrast Ratio 4,000 : 1 4,000 : 1 4,000 : 1 4,000 : 1
Average Power Consumption 75 /150 W/panel 75 /150 W/panel 75 /150 W/panel 75 /150 W/panel
Max Power Consumption 225 /550 W/panel 225 /550 W/panel 225 /550 W/panel 225 /550 W/panel
Operating Temp/Humidity -20ºC - 60ºC / 10% - 60% -20ºC - 60ºC / 10% - 60% -20ºC - 60ºC / 10% - 60% -20ºC - 60ºC / 10% - 60%
Storage Temp/Humidity -30ºC - 60ºC / 10% - 60% -30ºC - 60ºC / 10% - 60% -30ºC - 60ºC / 10% - 60% -30ºC - 60ºC / 10% - 60%
Refresh Rate >1,920 Hz >1,920 Hz >1,920 Hz >1,920 Hz
Brightness >6000 nits >6000 nits >6000 nits >6000 nits
Horizontal Viewing Angle 160° 160° 160° 160°
Vertical Viewing angle 140° 140° 140° 140°
Expected Lifetime 100, 000 Hrs 100, 000 Hrs 100, 000 Hrs 100, 000 Hrs
Max Stacking 20/10 20/10 20/10 20/10
Max Hanging 20/10 20/10 20/10 20/10
Servicing Front / Rear Front / Rear Front / Rear Front / Rear
IP Rating (Front/Rear) IP 65/ IP 54 IP 65/ IP 54 IP 65/ IP 54 IP 65/ IP 54
Certification CCC, CE, ETL, FCC CCC, CE, ETL, FCC CCC, CE, ETL, FCC CCC, CE, ETL, FCC


Feature

Outdoor Rated
→ Outdoor waterproof with IP65
→ Suitable brightness adjustable for outdoor day and night
→ Deep black level, contrast ratio 4000:1

Fast Installation and Easy Maintenance
→ Truss hanging and ground support both available
→ Cable-less between modules
→ Front and rear access
→ Tools free installation

Slim,Light Weight and Quiet
→500mm×500mm or 500mm×1000mm options
→ 80mm thickness
→ Fanless design

Superior Electrical Features
→Dual signal backup port
→ UI LCD monitoring display indicates the status

Lightweight Outdoor Rental LED Display Screen High Brightness Video Wall For Stage

Lightweight Outdoor Rental LED Display Screen High Brightness Video Wall For Stage


Our Service

1.Pre-sale service:
Reply enquiries in 24 hours.
Market research and forecast for customer.
Provide unique and professional solutions based on customer's requirement
Data sheet and samples offer.
Other services, such as special packing design, factory visiting and so on.


2.In-sale service:
Tracking report in producing.
Quality test report for every order.
Photos and videos as per customer's requirement.
Free spare parts.


3.After-sale service:
Lifetime free maintenance and upgrade.
Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
Customer satisfaction tracking report.
Free technician training.
Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
Special service for big project, such as stadium, exhibitions, squares and so on.

Lightweight Outdoor Rental LED Display Screen High Brightness Video Wall For Stage

COMPANY INTRODUCTION

Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!

Lightweight Outdoor Rental LED Display Screen High Brightness Video Wall For Stage

FAQ

Q1. Do you provide samples?is it free or extra?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.

Q3. Do you offer guarantee for the products?

A: Yes,we offer 2-5 years warranty to our products.
