Specifications
Brand Name :
Bako Vision
Model Number :
P4
Certification :
CCC,CE,ETL,RoHS,FCC
Place of Origin :
China
MOQ :
1 m²
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000m²/Year
Delivery Time :
25-30 Days
Packaging Details :
Flight case/ Plywood case
Price :
Negotiable
Material :
Aluminum
Weight :
8.2KG
IP Rating :
IP43/IP54
Warranty :
2 Years
Light :
Nationstar
Fodable angle :
360
Gray Scale :
16 bit
Brightness :
1000nits
Description

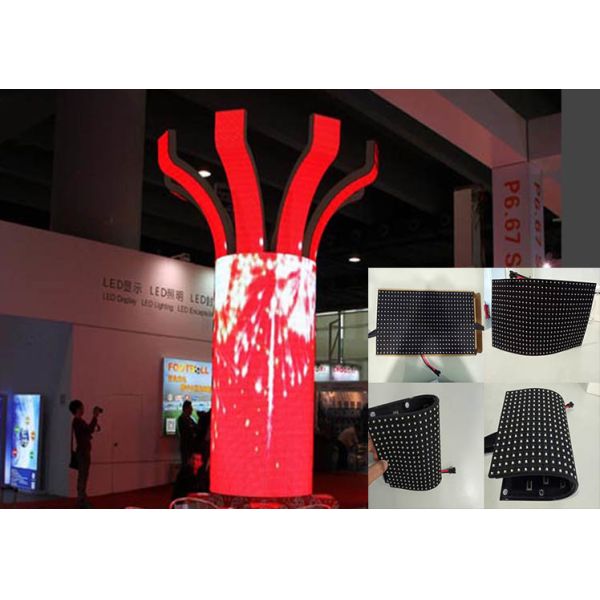

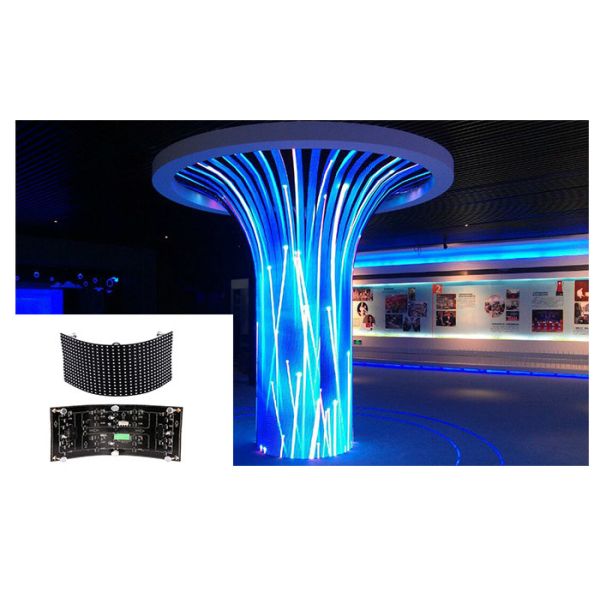

Light Weight P4 Flexible Led Display with Module of 240x120mm

P4 Flexible Led Display Description

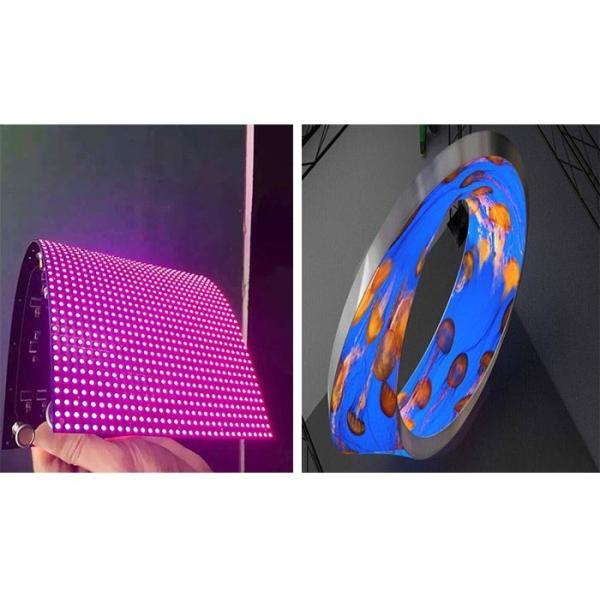

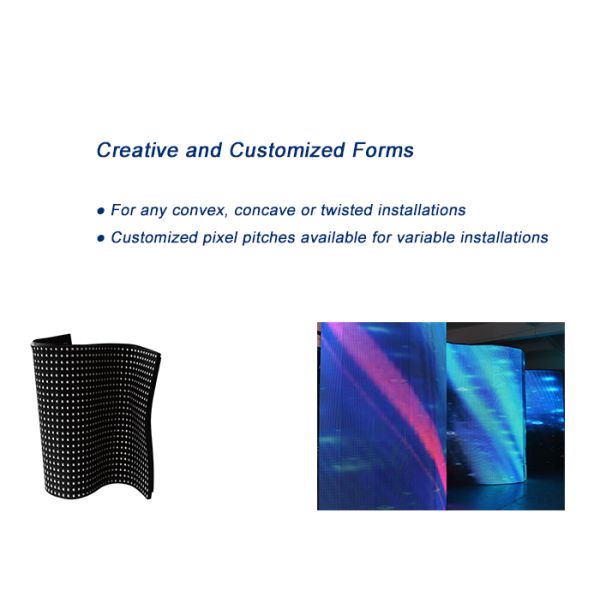

Convex,concave or twisted available module

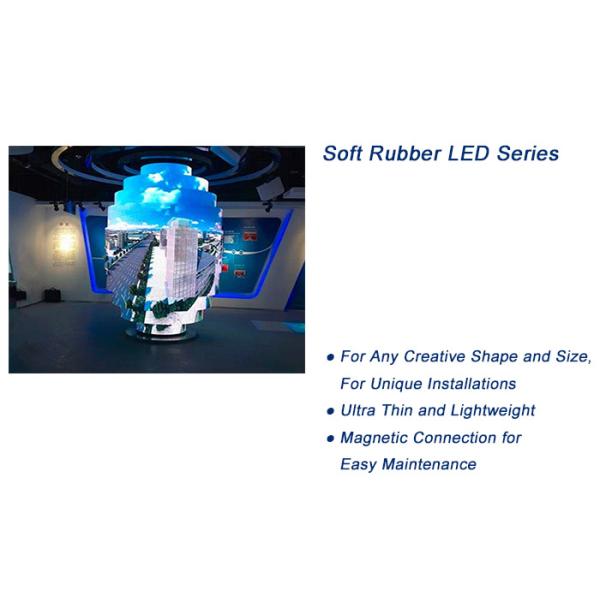

For any creative shape and size, for unique installation

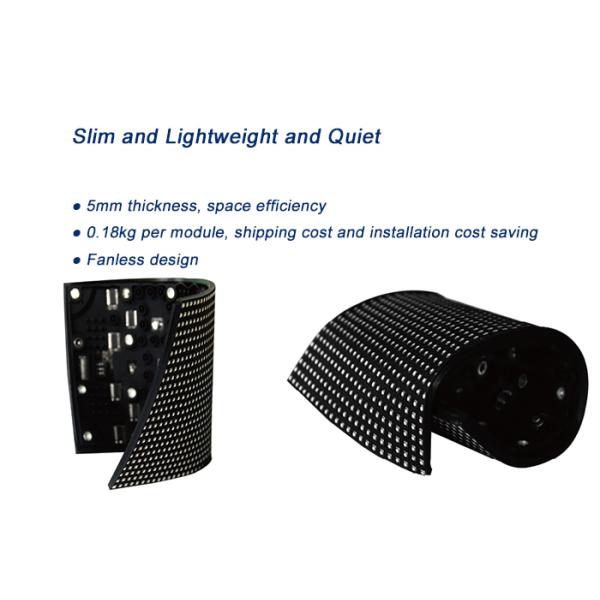

Slim and Lightweight

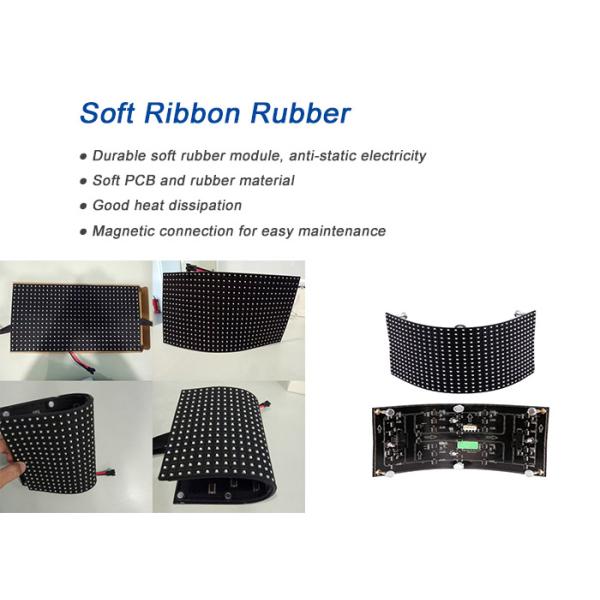

Magnetic connection for easy maintenance

P4 Flexible Led Display Parameters:

Pixel Pitch P2 P2.5 P3 P4
LED Type SMD1515 SMD2121 SMD2121 SMD2121
Module Size 240*120
Module Resolution 120*60 96*48 80*40 60*30
Cabinet Weight 8.2kg/sqm
Pixel Density 250,000 pixels/sqm 160,000 pixels/sqm 111,111 pixels/sqm 62,500 pixels/sqm
Gray Scale 16bit
Contrast Ratio 4000:1
Brightness >1000 nits
Driving Method 1/40 1/40 1/40 1/8
Refresh Rate >1920Hz
IP Rating IP40
Average Power Consumption(W/sqm) 9w/sqm 9w/sqm 10w/sqm 10w/sqm
Maximum Power Consumption(W/Sqm) 12w/sqm 12w/sqm 13w/sqm 13w/sqm
Servicing Front
IP Rating IP40



P4 Flexible Led Display Features:

Light Weight P4 Flexible Led Display with Module of 240x120mmLight Weight P4 Flexible Led Display with Module of 240x120mmLight Weight P4 Flexible Led Display with Module of 240x120mmLight Weight P4 Flexible Led Display with Module of 240x120mm

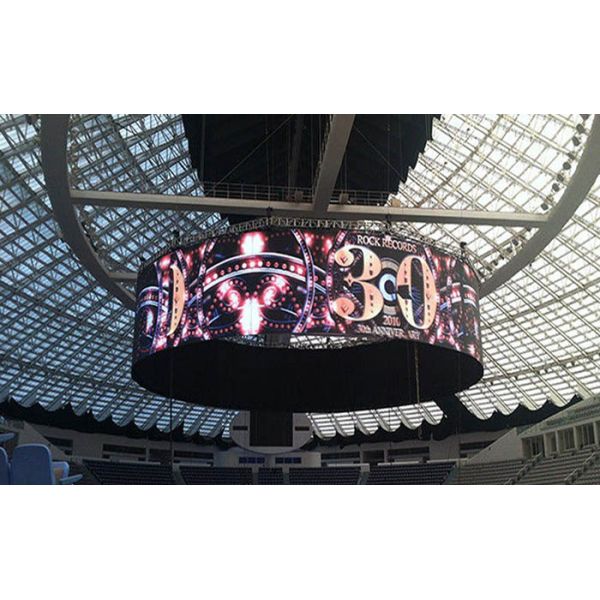

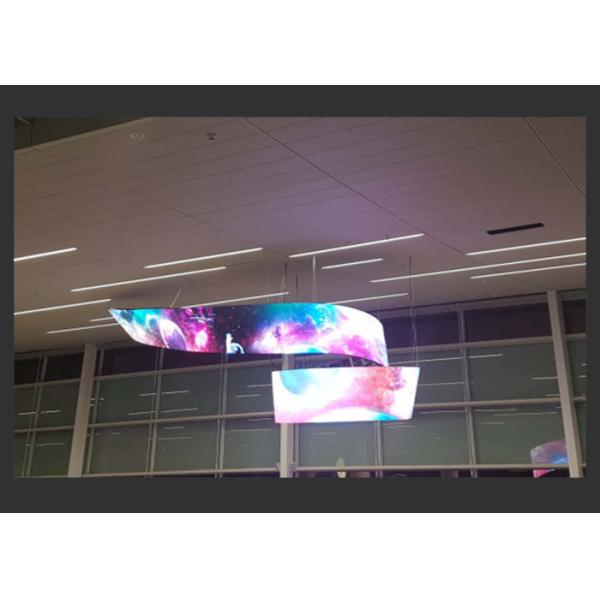

Cases:

Light Weight P4 Flexible Led Display with Module of 240x120mm

Company Introduction:

LED Vision Technology Limited  , started in Shenzhen in 2005,a world class manufacturer of

technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

FAQ

Q1:How to choose a proper led screen for your need?


A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?


Q2:Which pixel pitch should i choose?


A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).


Q3:Which control system should i choose?


A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.


Q4:How to pay?


A:We accept L/C, T/T bank, or paypal or westerunion.

Q5:How to ship?


A:It is optional and we respect customer's choice. You can choose to ship by air cargo, by internation express company, or by sea according to your goods weight and volume and the delivery time you need.

Q6:How to install it after i received it?


A:We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo or send our engineer fly to you for help if needed.
