Specifications
Brand Name :
BAKO VISION
Model Number :
BP
Certification :
CE,FCC,ETL,EMC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
6000sqm/month
Delivery Time :
15-20 days
Packaging Details :
Flight case or plywood case
Pixel Configuration :
SMD2121
Weight :
28kg/set
Refresh Rate :
>2880Hz
Thickness :
33mm
Physical pitch :
2.5mm
Expected Lifetime :
100000 Hours
Panel Material :
Aluminum
Processing :
16 bit
Description

Indoor Outdoor Ultralight P2.5 P3 LED Poster Screen For Advertising

Full Color Poster LED Mirror Screen

Slim, Form Changeable Digital Advertising Display

Ultralight

Multiple Installation and Form Changeable

Various Signal Operations

Smart Control Management

Ultra Slim and Lightweight

Ultra slim edge 6mm, display thickness 33mm

Simple and Easy Maintenance

Simply assembled

Net weight 28kg per set can add wheel

Magnetic modules for front access

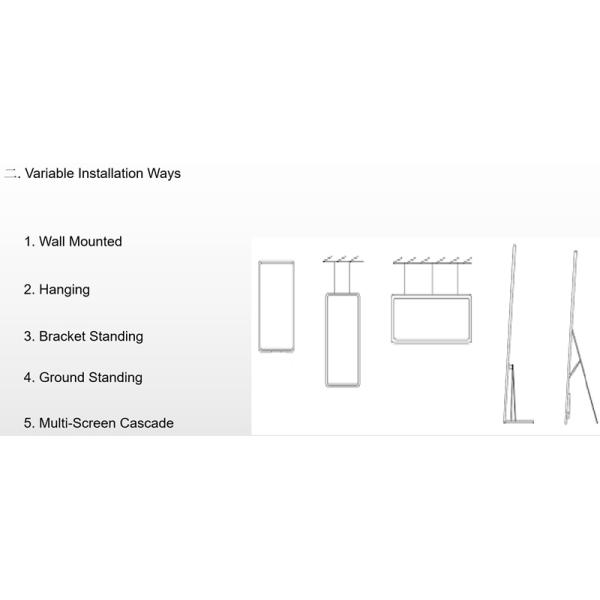

Multiple and Fast Installation

Variable installations, hanging, wall mounted,

ground standing, bracket standing

Available for horizontal assembling as a whole screen

Superior Electrical Features

Refresh rate 2880Hz

contrast ratio 4000:1

160-degree viewing angle

Specifications:

Model BP-2
Physical Pitch 2.5 mm
Pixel Configuration SMD 2121
Pixel Density 169,344pixels/m²
Module Dimensions (W × H)(mm) 280 × 210
Panel Dimensions (mm) 570× 1890 × 33
NO .of Modules Per Panel (W × H) 2 × 9
Physical Resolution of Module (W × H) 112 × 84
Physical Resolution of Panel (W × H) 756 × 224
Panel Material Aluminum
Single Cabinet Weight 28kg
Processing 16 bit
Colors 281 trillion
Contrast Ratio 4,000: 1
Average Power Consumption 200 W/ Set
Max Power Consumption 600 W / Set
Driving Method 1/32 Dynamic Scan
Operating Temp/Humidity -10° - 60°C / 10% - 60%
Storage Temp/Humidity -30° - 60°C / 10% - 60%
Brightness >1000 nits
Refresh Rate ≥2,880 Hz
Vertical Viewing angle 160°
Horizontal Viewing Angle 140°
IP Rating (Front/Rear) IP40
Frame Rate 60 fps
Expected Lifetime 100,000 Hrs
Servicing Front

Aluminum Backlit Poster Display Indoor Outdoor Ultralight P2.5 P3 For AdvertisingAluminum Backlit Poster Display Indoor Outdoor Ultralight P2.5 P3 For Advertising

Aluminum Backlit Poster Display Indoor Outdoor Ultralight P2.5 P3 For Advertising

Aluminum Backlit Poster Display Indoor Outdoor Ultralight P2.5 P3 For Advertising

Aluminum Backlit Poster Display Indoor Outdoor Ultralight P2.5 P3 For Advertising

Aluminum Backlit Poster Display Indoor Outdoor Ultralight P2.5 P3 For Advertising

FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led display manufacturer OVER FOURTEEN YEARS.

Q2. What's your payment term?
A: T/T, Western Union, L/C, or other

Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q4. How about your delivery time?
A: Generally, the sample needs 5-7 days, 15-25 working days for batch order

Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship goods by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air Freight and sea shipping are also optional.

Q6. Do you offer a guarantee for the products?
A: Yes, we offer 2 years warranty for our products. we have a warehouse in the USA and our engineer stay in the USA to deal with after-sales and provide technical support.

Q7: How can I get technical support?
A: We will train in our factory and send video for showing. The training includes system use, system maintenance, and equipment protection. We often attend exhibitions around the world every year,
so we can visit you if you need at that time.
