Specifications
Brand Name :
Bako Vision
Model Number :
BIR-III
Certification :
CCC, CE, ETL, ROHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 M2/Month
Delivery Time :
20 days
Packaging Details :
Wooden Case / Flight Case
MTBF: :
≥1000hrs
Power Consumption(avg.) :
200w/m2
Driver IC :
MBI5124
Power Supply: :
Meanwell/ G-energy
Lamp :
Nationstar/ Kinglight
Module size :
250*250mm
Panel Dimensions :
500*500/ 500*1000
Processing :
16 Bit
Description

Nationstar Lamp P3.91 Portable Indoor Rental LED Panel 16 Bits Grey Level

Portable Indoor Rental LED Description

BIR-III is our most high cost performance product, curve-able, 500mmx500mm and 500mmx1000mm compatible, fully front accessible. and P3.91 is our most popular rental products.

All electronics and components are using class A rank to match up all EU standards, while price is designed for high cost effective for those resellers and end users who need money back fast.



Portable Indoor Rental LED Products features

1.Meanwell brand power supply, saving energy and high efficiency. power supply and receiving cards can be replaced separately and quickly, even in 1 second.

2.Die-casting Aluminum structure, high-precision processing technology, and good heat dissipation.

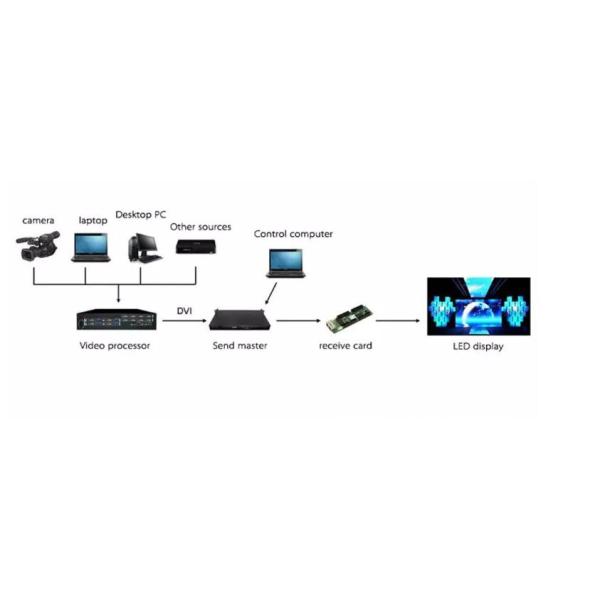

3. Linsn or Novastar control system, guarantee very high refresh rate, no scanning line when taken photos or videos.

4.The integration of lamp and driving IC, together with the multi-circuit structure, achieves evenly-distributed current, low power consumption and fast heat dissipation.

5. High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.

Nationstar Lamp P3.91 Stage Rental LED Display 16 Bits Grey Level High Gray Scale

Portable Indoor Rental LED Parameter

BIR-III-3.91
Physical Pitch 3.91mm
Pixel Configuration SMD2121
Pixel Density 65,536 pixels/m²
Module Dimensions(W*H)(mm) 250*250
Panel Dimensions(mm) 500*500*80/500*1000*80
NO. of Modules Per Panel (W*H) 2*2/2*4
Panel Material Die-Casting Aluminum
Colors 281Trillion
Processing 16 Bit
Physical Resolution of Module(W*H)(mm) 64*64
Physical Resolution of Panel(W*H)(mm) 128*128/ 128*256
Single Cabinet Weight 8/14kg/panel
Average Power Consumption 64/128W/panel
Max Power Consumption 192/384W/panel
Brightness 1200 nits
Viewing Angle H:160°/ V:140°
Operating Temp/ Humidity -10ºC-60ºC/10%-60%
Storage Temp/ Humidity -30ºC-60ºC/10%-60%
Expected Lifetime 100,000 Hrs
Servicing Front/Rear
IP Rating(Front/Rear) IP 40/IP21
Max Stacking and Hanging 20/10
Refresh Rate >1,920 Hz

Portable Indoor Rental LED Pruduct details

Nationstar Lamp P3.91 Stage Rental LED Display 16 Bits Grey Level High Gray Scale

Nationstar Lamp P3.91 Stage Rental LED Display 16 Bits Grey Level High Gray Scale

Nationstar Lamp P3.91 Stage Rental LED Display 16 Bits Grey Level High Gray Scale

P3.91 series

This is

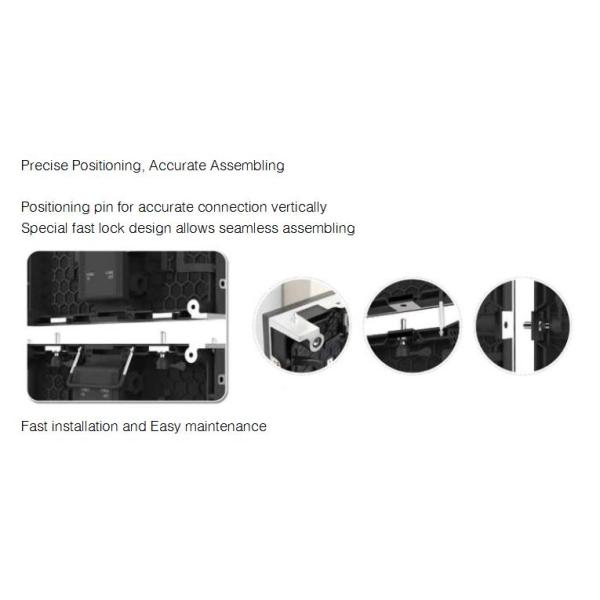

Bako vision Best-selling series LED Display Panel . Two Panel Size for your choice (500*500mm or 500mm*1000mm W *H). Ultra Thin Design only 80mm , with fast locks design only 4 steps then you can easily assemble or dismantle the screen. Absolutely the best solution for your rental business . This LED screen is very portable , Only 8KG for 500*500mm panel , 14 KG for 500*1000mm panel, perfect to be used in different places often.

Nationstar Lamp P3.91 Stage Rental LED Display 16 Bits Grey Level High Gray Scale

Advantages:

1. With 10 years experience in LED display screen.


2. All the products have passed CE, LCC and ROHS certifications.


3. Experienced research and development group.


4. Advanced production equipment improve the production efficiency and quality.


5. Strong production capability, more than 8000m²/month.


6. Good after sale service.

Nationstar Lamp P3.91 Stage Rental LED Display 16 Bits Grey Level High Gray Scale

FAQ:

1. I would like to ask you if it's possible to have my logo on the product.

A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.

2. How could I buy the products I need if there is no price in the website and could I get some samples first?

A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.We welcome sample order to test and check quantity.

3. How to choose a proper led screen for your need?

You just need to consider three simple questions when you choose a led screen.

1.Will you use it indoor or outdoor?

2.Is it for rental usage(need to be moved from one place to another place very often) or for fixed installation (to be installed in one place forever)?

3.What is the approximate size of the whole led screen you would like to purchase?
