Specifications
Brand Name :
Bako Vision
Model Number :
BF
Certification :
CE ROHS UL CCC ETL
Place of Origin :
China
MOQ :
1 Square Meter
Price :
usd 1000-1250 per square meter
Payment Terms :
L/C, D/A, T/T, MoneyGram, Western Union
Supply Ability :
8000m2/Month
Delivery Time :
25 DAYS
Packaging Details :
Plywooden Case/Flight Case
Tube Chip Color :
Full Color
IP Rating :
IP43
Specification :
8.5 - 15 mm
Foldable Degree :
360 Degree
Pixel Configuration :
1R 1G 1B
United Size :
250 X 250
Installations :
Hanging Stacking Attaching
Max Length of Control Box :
8 M
Servicing :
Front
Description

Foldable Flexible LED Display IP43 Front Service Light Weight Easy Installation16-BF-Tia.pdf

Foldable Flexible LED Display IP43 Front Servicing Light Weight Easy Installation is a creative product with very light weight and easy installation. It's widely used in stage events, and it has high resolution and brightness and refresh rate.

It takes just four steps to install this foldable led display.
1) Install a metal sheet on the wall
2) Apply the foldable led display on the metal sheet
3) Put the control box on the top
4) Connect the cables and turn on the screen

Easy Installation Foldable Flexible LED Display Parameters:

BF-6 BF-7 BF-10 BF-12
Physical Pitch 6 mm 7.8 mm 10 mm 12 mm
Pixel Configuration SMD 3528 SMD 3528/3535 SMD 3528 SMD 3528
Pixel Density 27,556 pixels/m² 16,384 pixels/m² 10,000 pixels/m² 6,889 pixels/m²
Unit Size (W*H)(mm) 192*192 250*250 250*250 250*250
Physical Resolution of Unit (H*V) 32*32 32*32 16*16 16*16
Weight (kg/m²) <10 <9 <9 <9
Processing 16 bit 16 bit 16 bit 16 bit
Colours 281 trillion 281 trillion 281 trillion 281 trillion
Contrast Ratio 2,000:1/4,000:1 2,000:1/4,000:1 2,000:1/4,000:1 2,000:1/4,000:1
Average Power Consumption 150/310 W/m² 90/200 W/m² 110 W/m² 75 W/m²
Max Power Consumption 375/775 W/m² 225/500 W/m² 275 W/m² 187 W/m²
Brightness 2,000/4,000 nits 1,500/6,000 nits 1,500 nits 1,500 nits
Refresh Rate >1,920 Hz >1,920 Hz >1,920 Hz >1,920 Hz
Foldable Angle 360° 360° 360° 360°
Max Length of Control Box 6 m 8 m 4 m 12 m

Light Weight Foldable Flexible LED Display Features:

1.Ultra Thin & Light Weight

2.Conventient Installation & Combination

3.Extraordinary Flexibility

4.Maintenance way: Front service.

5.It can save: transporation and storage cost, installation time, labor cost.

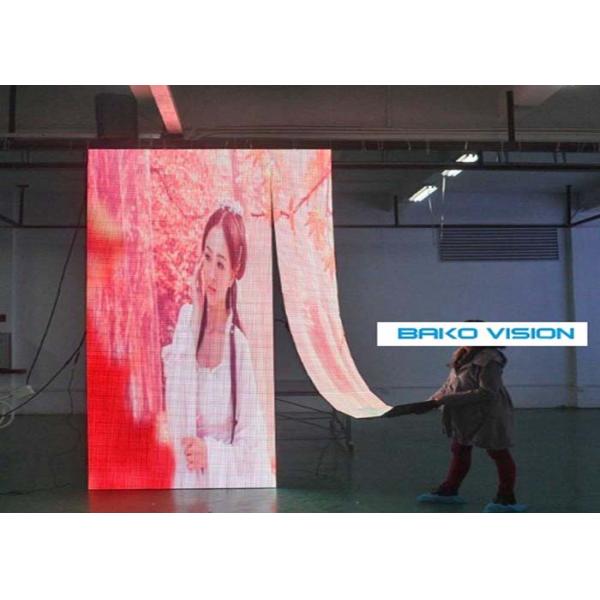

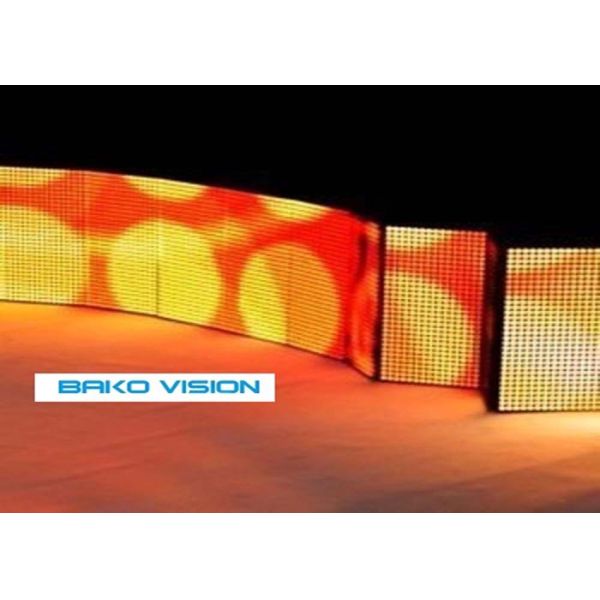

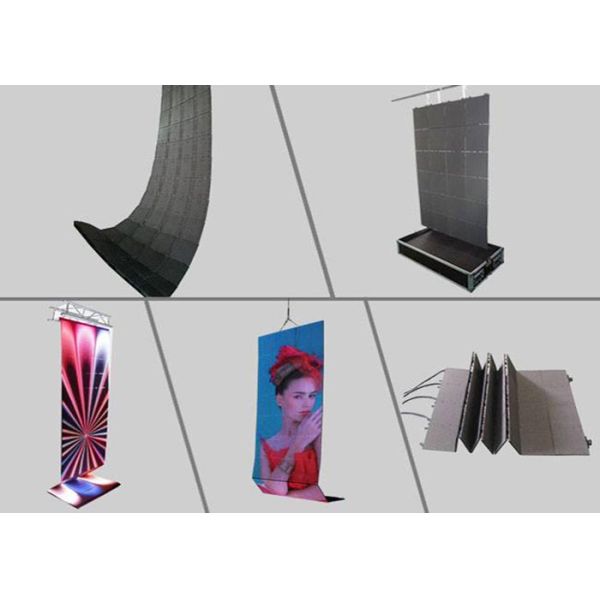

Foldable Flexible LED Display IP43 Front Servicing Light Weight Easy Installation Cases:

Foldable Flexible LED Display IP43 Front Service Light Weight Easy Installation

Foldable Flexible LED Display IP43 Front Service Light Weight Easy Installation

Foldable Flexible LED Display IP43 Front Service Light Weight Easy Installation

Foldable Flexible LED Display IP43 Front Service Light Weight Easy Installation


About us:
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!

FAQ

Q1. Do you provide samples?is it free or extra?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.

Q3. Do you offer guarantee for the products?

A: Yes,we offer 2-5 years warranty to our products.

Foldable Flexible LED Display IP43 Front Service Light Weight Easy InstallationFoldable Flexible LED Display IP43 Front Service Light Weight Easy InstallationFoldable Flexible LED Display IP43 Front Service Light Weight Easy InstallationFoldable Flexible LED Display IP43 Front Service Light Weight Easy InstallationFoldable Flexible LED Display IP43 Front Service Light Weight Easy InstallationFoldable Flexible LED Display IP43 Front Service Light Weight Easy InstallationFoldable Flexible LED Display IP43 Front Service Light Weight Easy Installation
