Specifications
Brand Name :
BAKO VISION
Model Number :
BOF
Certification :
CCC.CE.ETL.FCC
Place of Origin :
China
MOQ :
1 m²
Price :
$399~999
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
6000 m²/month
Delivery Time :
15 -20 days
Packaging Details :
Flight Case/ Plywood Case
Pixel Pitch :
10mm
Power Supply :
Meanwell
LEDs :
Nationstar
IP Rating(Front/Rear) :
IP65
Panel Dimension :
1280x960mm
Control System :
NOVA
Panel Material :
Steel/ Aluminum
Warranty :
2 years
Expected Lifetime :
100000 hours
Processing :
16bit
Description

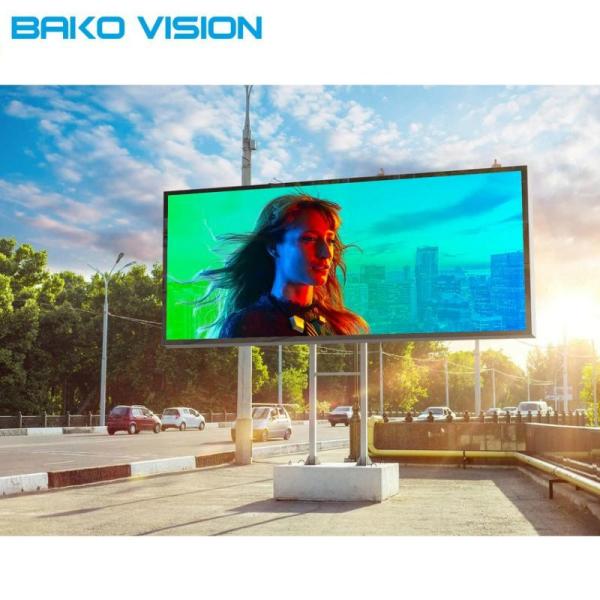

10mm Pixel Pitch Outdoor LED Billboard High Brightness Waterproof IP65


1. Nationstar LEDs, long lifetime with high brightness 6500nits, visible from every direction even face to sunshine directly.
2. SMD technology, LEDs ensure a large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3. Cabinet design lightweight, side handle for easy carrying and assemble job.

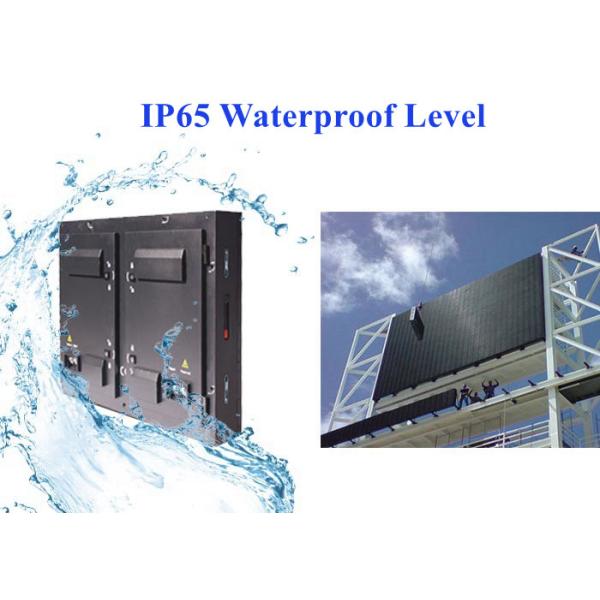

4. IP65 waterproof and dust resistance, durable for any weather conditions.
5. Meanwell brand power supply, saving energy and high efficiency.
6. Digital process: 16bits, contrast ratio 2,000:1, vivid color.
7. Front access makes easy maintenance.
8. There can improve the resolution by changing the new module with a smaller pixel, no need to purchase a new screen,

this can save lots of costs.


Specifications:

Pixel Pitch P4.81 P6.67 P8 P10
LED Type SMD2727 SMD2727 SMD3535 SMD3535
Module Size(mm) 250x250 320x320 256x256 320x320
Panel Size(mm) 1000x1000x150 1280x960x150 1280x768x150 1280x960x150
Module Resolution(WXH) 52x52 48x48 32x32 32x32
Cabinet Weight 65/45kg
Cabinet Material Steel/ Aluminum
Gray Scale 16 bit
Contrast Ratio 2000:1
View Angle(H/V) 160°/ 140°
Refresh Rate >1920Hz
Brightness >6500nits
IP Rating IP65 / IP54
Servicing Front / Rear
Operating Temp/Humidity -20ºC-50ºC / 10%-90%
Expected Lifetime 100,000Hrs
Power Consumption Average: 360W/ Panel, Max: 900W/Panel

10mm Pixel Pitch Outdoor Electronic Led Billboards High Brightness Waterproof IP65

10mm Pixel Pitch Outdoor Electronic Led Billboards High Brightness Waterproof IP65

About us:

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a professional manufacturer of technologically advanced LED displays, focusing on high-end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

Our main markets are among America, Europe, The Middle East, and Asia, all of our products are certificated by RoHS, CCC, CE, FCC, ETL, UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied on the long term partnership with variety channel customers over 120+ countries.

Why Choose us:

1) Well-experienced

A) our factory specialized in this field for 14 years

B) we have much experience and many cases for your projects,

2) No after sale worries.

a) we provide full process technical support for installation guidance and debugging etc service.

b) 2 years warranty and lifetime maintenance service.

c) send our engineer for onsite guidance based on your requirements

3) Save your time and energy.

A) Complete solution

B) Consider and solve potential issues before you realized.

C) Respond to you immediately for all your questions

4) Save shipping cost for you.

We have some well-cooperated shipping agents for Sea shipping; Air shipping and Express. they

could give their most competitive price.

5) Almost all your questions we have already experienced and well solved, So for all your issues, we could provide professional solutions.
