Specifications
Price :
Negotiable
Weight :
8.2kg/m²
Control System :
Novastar or Linsn
Refresh Rate :
1920 Hz
Servicing :
Front
Gray Level :
16bit
IP Rating :
IP40
Brand Name :
Bako Vision
Model Number :
P2
Certification :
CE,FCC,RoHS
Place of Origin :
China
MOQ :
1 sqm
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000sqm/ Month
Delivery Time :
25-30 days
Packaging Details :
Plywood case / Flight Case
Description

P2 Flexible Led display with module of 240x120mm for archiving irregular shape display

P2 Flexible Led display description

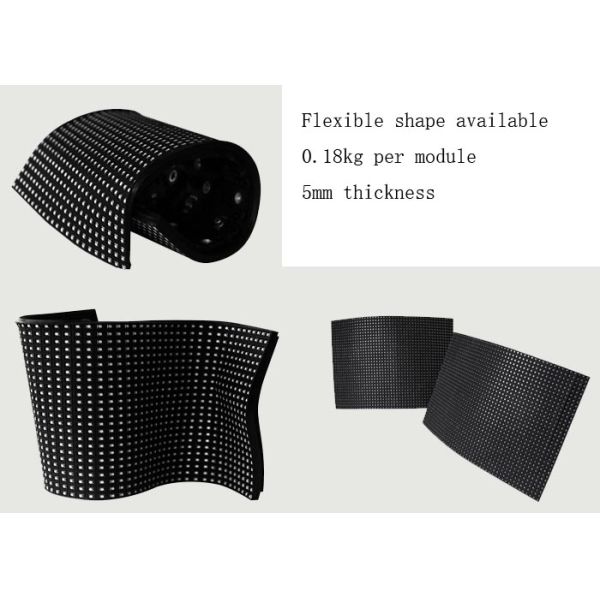

Module can be bent, can be used for the surface of the arc place, that can be inward arc, but also can be outward the arc, use of flexible.
flexible led screen adopt magnet pole directly adsorbed on the cabinet, It can be front and back maintenance, greatly facilitate the installation.

P2 Flexible Led display Parameters:

  BS-2
Physicla Pitch 2mm
Pixel Configuration SMD 1515
Pixel Density 250,000 pixels/m²
Module Dimensions (W*H)(mm) 240*120
Panel Dimensions (mm) customized
Physical Resoulution of Modules (W*H) 120*60
Weight 8.2 kg/m²
Gray Scale 16 bit
Colours 281 trillion
Contrast Ratio 4,000:1
Average Power Consumption 9 W
Max Power Consumption 12 W
Brightness >1,000 nits
Refresh Rate >1,920 Hz
Scan Method 1/40
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Expected Lifetime 100,000Hrs
Srevicing Front
IP Rating (Front/Rear) IP 40
Operating Temp/Humidity -20ºC-60ºC/10%-90%
Storage Temp/Humidity -40ºC-80ºC/10%-90%

P2 Flexible Led display Features:

1. Durable soft rubber module,anti-static electricity

2. Integrated SMD,IC,Circuit for easy maintenance and heat dissipation

3. For any convex,concave or twisted installtions

4. Customized pixel oitches available for variable installations

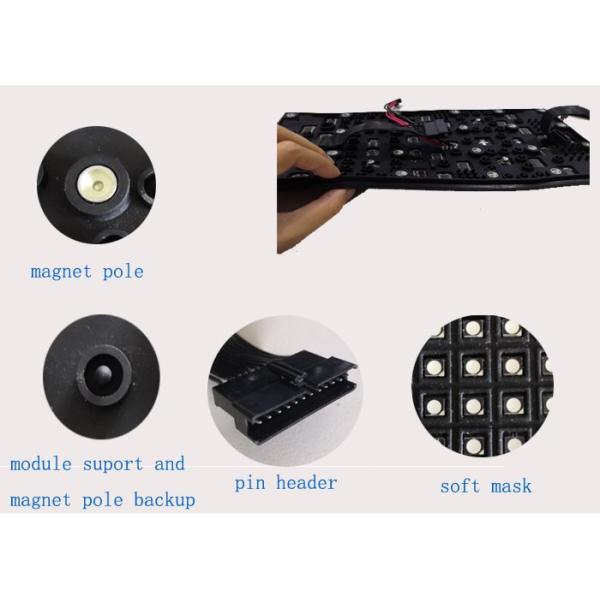

5. Magnetic connection for easy installation and maintenance

P2 Flexible Led display with module of 240x120mm for archiving irregular shape display

P2 Flexible Led display with module of 240x120mm for archiving irregular shape display

Why choose us?

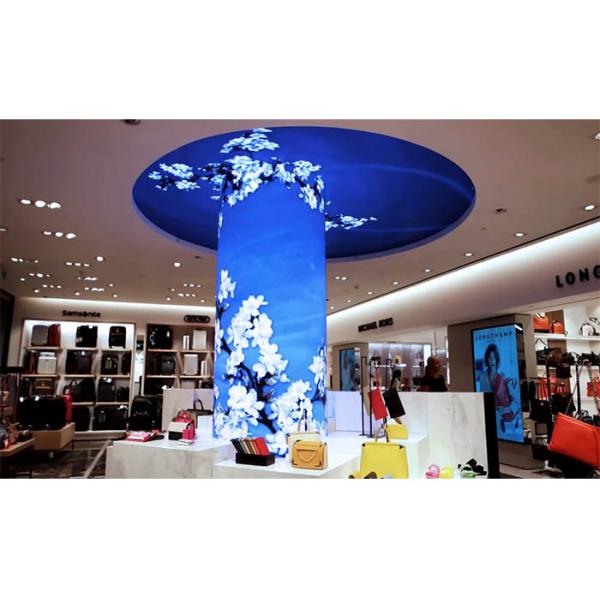

Cases:

P2 Flexible Led display with module of 240x120mm for archiving irregular shape display

P2 Flexible Led display with module of 240x120mm for archiving irregular shape display

Company:

LED Vision Technology Limited  , started in Shenzhen in 2005,a world class manufacturer of technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

P2 Flexible Led display with module of 240x120mm for archiving irregular shape display

Exhibition:

P2 Flexible Led display with module of 240x120mm for archiving irregular shape display

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 7-10 days, mass production time needs 4-5 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
