Specifications
Brand Name :
Bako Vision
Model Number :
BOF8/BOF10
Certification :
CE, Rohs, ETL, FCC
Place of Origin :
China
MOQ :
1 sqm
Price :
$399~999
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
6000㎡/Month
Delivery Time :
20-25days
Packaging Details :
plywood case or flight case
Pixel Configuration :
SMD 3535
Module Dimensions :
256*256/320*320
Panel Dimensions :
960*960 per cabinet
Panel Material :
Steel/Aluminum
Weight(kg/m2) :
65/45
Contrast Ratio :
2,000:1
Origin :
China
Display Format :
LED DOT Matrix Display
Indoor or Outdoor :
Outdoor
LED Chip :
Nationstar
Tube chip color :
Full Color
Usage :
Outdoor,Advertising Board
Screen dimension :
Customized Size
Pixels :
10mm,8mm
Display function :
Video,Animation,Graphics
Brightness :
5500-6500nits
Warranty :
2 Years
Product name :
Outdoor Full Color Advertising P4 P5 P6 P10 LED Billboard Display
Module size :
320*160mm
Life span :
100000hours
Application :
Outdoor Advertising Led
Description

Outdoor Big Sign Waterproof P10 Fixed Install LED Display Billboard for Advertising9-BOF-B-Tia.pdf

SMD 3535 Billboard Advertising Led Display Screen P8 P10 Steel / Aluminum Panel has good uniformity, good stability and good waterproof, it is become more and more popular on the market for its reasonable price and good display effect

Outdoor Big Sign Waterproof P10 Fixed Install LED Display Billboard Features:

1.Even our outdoor LED display panel come with it sleek design and light weight. It does not add on to much weight on your facade loading. The light weight LED display panels help in reducing your installation cost and time.

2.Front and back service enabled. Simple and quick replacement on the faulty LED display module. Reduced hazardous time.

3.Concave, Convex with any angles

4.Many applications: stock exchange centers, customs, stadiums, studio, shopping malls, railways, airports, harbors,high way, commercial advertising, bus station, entertainment events, business establishments.

Outdoor Big Sign Waterproof P10 Fixed Install LED Display Billboard Parameters:

Model BOF-10
Physical Pitch 10 mm
Pixel Configuration SMD 3535
Pixel Density 10,000 pixels/m²
12,280 pixels/panel
Module Dimensions (W × H) (mm) 320 × 160
Panel Dimensions (mm) 960 × 960 × 150
NO .of Modules Per Panel (W × H) 3 × 6
Physical Resolution of Module (W × H) 32 × 32
Physical Resolution of Panel (W × H) 128 × 96
Panel Material Steel / Aluminum
Weight(kg/ m²) 65/45
Processing 16 bit
Colour 281 trillion
Contrast Ratio 2,000 : 1
Average Power Consumption 360 W /panel
Max Power Consumption 900 W /panel
Brightness >6,500 nits
Refresh Rate >1,920 Hz
Vertical Viewing angle 160°
Horizontal Viewing Angle 140°
Expected Lifetime 100,000 Hours
Servicing Front / Rear
IP Rating (Front/Rear) IP65 / IP54
Operating Temp/Humidity -20℃- 50℃ / 10% - 90%
Storage Temp/humidity -20℃- 50℃ / 10% - 90%

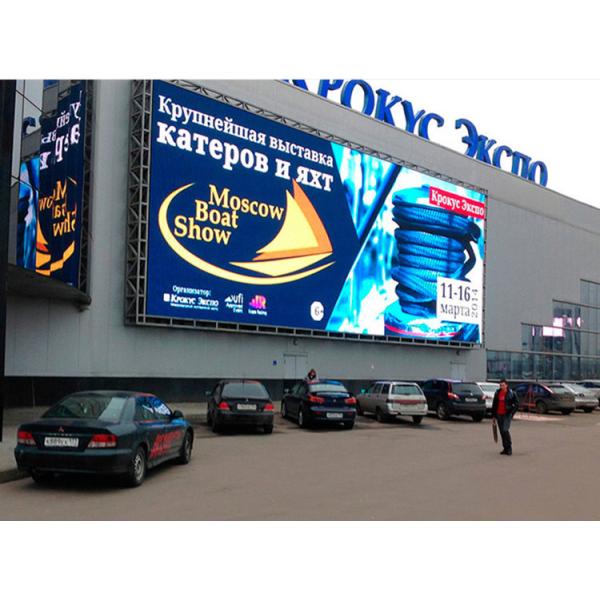

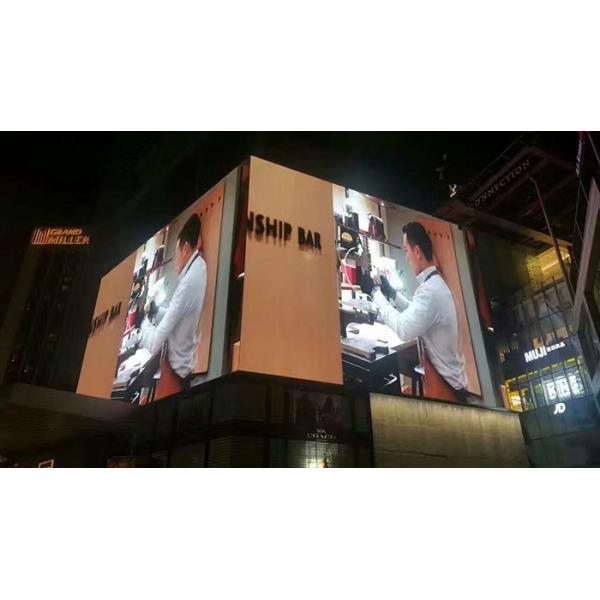

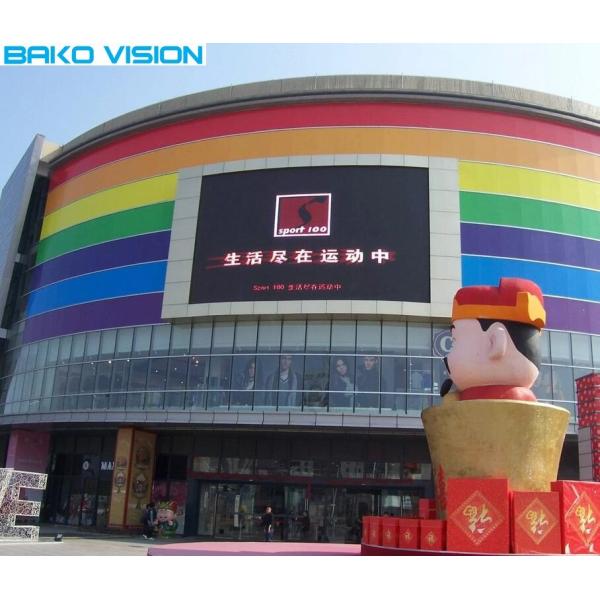

Outdoor Big Sign Waterproof P10 Fixed Install LED Display Billboard Cases:

Outdoor Big Sign Waterproof P10 Fixed Install LED Display Billboard for AdvertisingOutdoor Big Sign Waterproof P10 Fixed Install LED Display Billboard for AdvertisingOutdoor Big Sign Waterproof P10 Fixed Install LED Display Billboard for Advertising

About us:

Outdoor Big Sign Waterproof P10 Fixed Install LED Display Billboard for Advertising

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

FAQ:

Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer in Shenzhen, China.

Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. Do you provide samples ? is it free or extra?
A: We can provide the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks depends on order quantity.

Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It usually takes 28-35 days to arrive. Airline and express delivery also optional.

Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q8: How can I get technology support?
A:1,We will train in our factory and send video for showing. The training include system use, system maintenance and equipment protection.
