Specifications
Brand Name :
Bakovision
Model Number :
BIR Series
Certification :
CE ETL FCC RoHS ISO CCC
Place of Origin :
China
MOQ :
1㎡
Price :
$430/㎡
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000 sqm/month
Delivery Time :
15-25 days
Packaging Details :
Wooden case or flight case
LEDs :
SMD2121
Pixel Pitch :
4mm
Servicing :
Front/Rear
Viewing Angle :
160°/140°
Refresh Rate :
>1920Hz
Contrast Ratio :
4000:1
Description

4mm SMD2121 Indoor Fixed LED Display Wall Mounted TV Screen For Concert

Fixed Led Video Wall Quick Details:
1, Pixel Pitch: 4mm
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: Customized, weight: 28kg/m2.
5, Recommended minimum viewing distance: 5m.
6, Warranty: 2 years.

Fixed Led Video Wall Description :
Bako Vision indoor LED Wall include permanent installation indoor electronic led display, the pixel various from 3mm, 4mm, 5mm, 6mm.You can use it as billboard or Led Wall in Concert hall or shop and so on.

Fixed Led Video Wall Features:
1, High brightness from 900 nits to 1,200nits, visible from every direction indoor.
2, SMD LEDs ensure large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3, Cabinet design lightweight, Front access can be easy to install and maintanence.
4, Digital process: 16bits, High contrast ratio 4000:1, vivid color.
5, You can choose front service or back service, it's easy for maintenance

Fixed Led Video Wall Specification:

Physical Pitch 4mm
Pixel Configuration SMD2121
Pixel Density 62,500 pixels/Sqm
Module Dimensions(W x H) (mm) 256 x 128
Panel Dimensions (mm) 1024 x 768
NO. of Modules Per Panel (W x H) 4 x 6
Physical Resolution of Module (W x H) 64 x 32
Physical Resolution of Panel (W x H) 256 x 192
Panel Material Steel / Aluminum
Scan Method 1/16 Scan
Gray Scale 16bit
Colours 281 trillion
Contrast Ratio 4,000 : 1
Average Power Consumption 120 W /Sqm
Max Power Consumption 400 W /Sqm
Operating Temp/Humidity -10ºC - 60ºC / 10% - 60%
Storage Temp/Humidity -30ºC - 60ºC / 10% - 60%
Refresh Rate >1,920Hz
Brightness 900-1,200nits
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Expected Lifetime 100,000 Hrs
Servicing Front / Rear
IP Rating (Front/Rear) IP 21

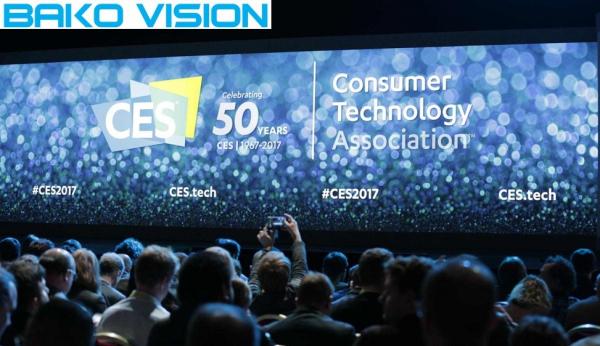

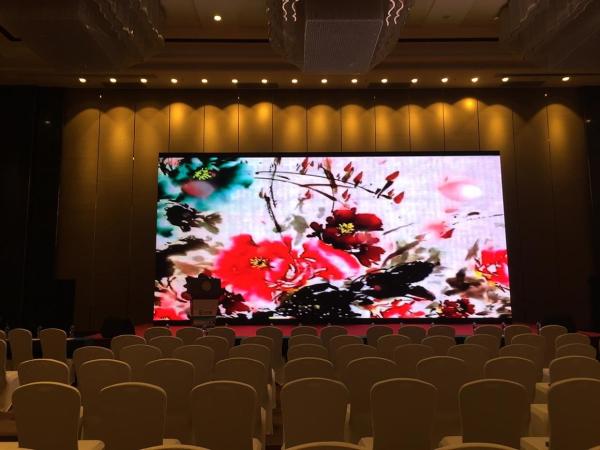

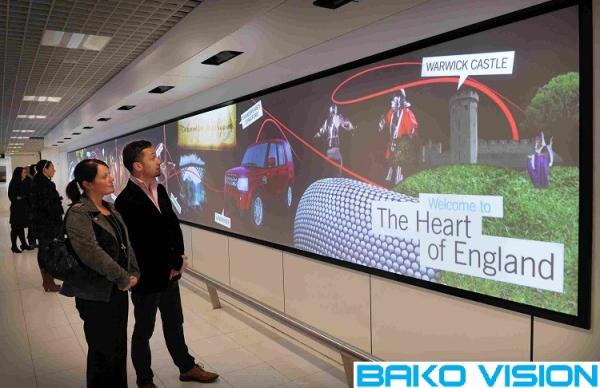

Fixed Led Video Wall Case:
4mm SMD2121 Indoor Fixed LED Display Wall Mounted TV Screen For Concert

Services

1) We can offer customization service for customized products and can provide onsite installation and testing service.

2) We provide 2 years warranty and free repair service for our products sold.

3) We also provide free training to customers' engineer.
4) Regarding the production of products, from raw materials to every process, we have strict production and testing process to ensure that our products under the quality inspection system standards.
5) At the same time,we have an aging testing of 72 hours as well as waterproof test of outdoor led display to ensure the high quality of the product.

Tips

1. Payment:We accept the L/C,T/T,Western Union.

2. Shipment: We will ship within 20-25 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.

3. Package:We usually pack the product in a wooden box or flight case.
