Specifications
Brand Name :
Bako Vision
Model Number :
BOR Series
Certification :
CE,UL,FCC,ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C, D/P
Supply Ability :
8000square meter per month
Delivery Time :
15-25days
Packaging Details :
Flight case / Plywood case
Pixel Pitch :
10mm
Material :
Die-cutting Aluminum
Brightness :
>5,500 nits
Refresh rate :
1920Hz
Cabinet Size :
960 x 960 x 10mm
Description

Die Casting Aluminum 10mm LED Video Display Screen Rental Dual Usage Screen

Outdoor Die Casting Aluminum LED Video Display Screen, Outdoor Fix/Rental Dual usage screen

Rental Led Screen Quick Details:
1, Pixel Pitch: 10mm
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: 960x960mm weight: 15kg/Sqm.
5, Recommended minimum viewing distance: 10m.
6, Warranty: 2years.
Rental Led Screen Description:
Bako Vision Outdoor LED Screen include permanent installation outdoor electronic led display, the pixel various from 2.6, 3.91mm, 4.81mm, 6mm,10mm. We provide variable solution to satisfy your requirement. You can use it for stage performance or living show.


Rental Led Screen Superior Electrical Features

  • High brightness: More than 6000nits,visible from every direction even face to direct sunshine.
  • High waterproof grade: IP65 protection, can be sustain strong strom and rain, have the best waterproof ability in outdoor use,SMD LEDs, wide viewing angle, Hor. Ver. 140 degree;
  • Convenient Assemble : Smart fast side locks make screen assemble fast and easier; Save your labor cost and time.
  • Seamless connection: superior color uniformity and stunning image quality, there is not black bezel line on connection nor information missing;
  • Good heat dissipation: New cabinet design of LED screen without fan, good heat dissipation,due to die-casting alumium material ,concise, slim and light weight;
  • Convenient Control: Digital Video walls can be connected with nearly any equipment , including to PCs, DVD and camera . That is conveniently for you to present your data;
  • High Quality : we use famous IC ,like MBI5020,MBI5024,MBI5030 and high quality lamp, Nationstar and so on, ensure high brightness;

Rental/Fixed Led Screen Specification

Physical Pitch10mm
Pixel ConfigurationSMD3535
Pixel Density10,000 pixels/Sqm
Module Dimensions(W x H) (mm)320 x 160
Panel Dimensions (mm)960 x 960 x 80mm
Physical Resolution of Panel (W x H)104 x 104 / 104 x 208
Processing16bit
Colours281 trillion
Contrast Ratio4,000 : 1
Average Power Consumption150 W /panel
Max Power Consumption550 W /panel
Operating Temp/Humidity-20ºC - 60ºC / 10ºC - 60ºC
Storage Temp/Humidity-30ºC - 60ºC / 10ºC - 60ºC
Refresh Rate>1,920 Hz
Brightness≥6,000nits
ServicingFront / Rear
IP Rating (Front/Rear)IP 65 / IP 54

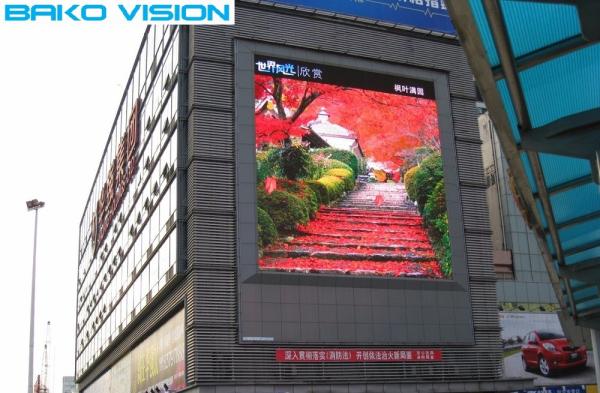

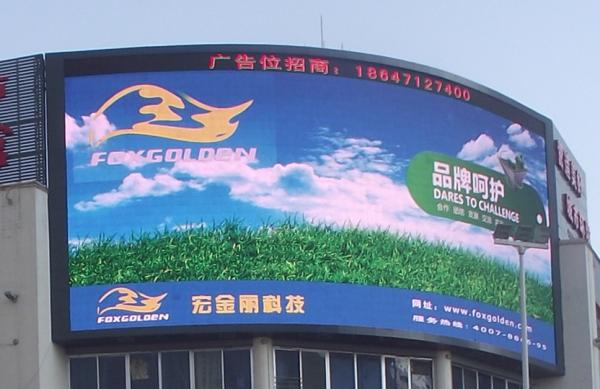

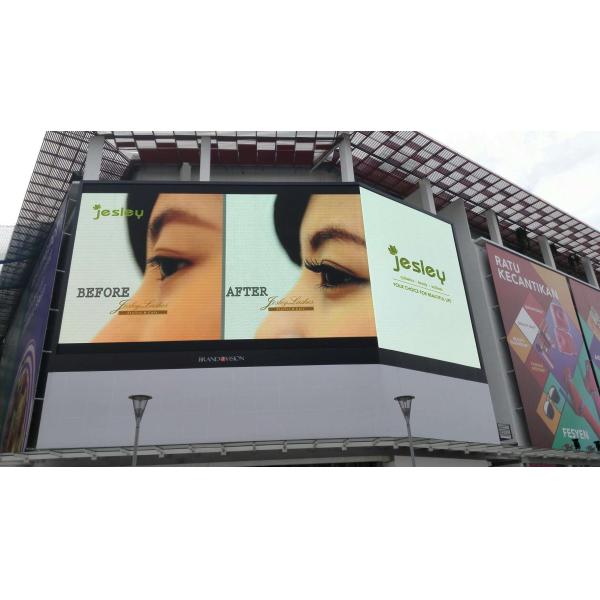

Fixed Led Screen Case:

Die Casting Aluminum 10mm LED Video Display Screen Rental Dual Usage Screen
Die Casting Aluminum 10mm LED Video Display Screen Rental Dual Usage ScreenDie Casting Aluminum 10mm LED Video Display Screen Rental Dual Usage ScreenDie Casting Aluminum 10mm LED Video Display Screen Rental Dual Usage ScreenDie Casting Aluminum 10mm LED Video Display Screen Rental Dual Usage ScreenDie Casting Aluminum 10mm LED Video Display Screen Rental Dual Usage ScreenDie Casting Aluminum 10mm LED Video Display Screen Rental Dual Usage ScreenDie Casting Aluminum 10mm LED Video Display Screen Rental Dual Usage ScreenDie Casting Aluminum 10mm LED Video Display Screen Rental Dual Usage ScreenDie Casting Aluminum 10mm LED Video Display Screen Rental Dual Usage Screen
