Nationstar Lamp Outdoor Led Digital Billboards P8 P10 1920Hz For Building Roof
Nationstar Lamp Outdoor Led Digital Billboards P8 P10 1920Hz For Building Roof
Nationstar Lamp Outdoor Led Digital Billboards P8 P10 1920Hz For Building Roof
Nationstar Lamp Outdoor Led Digital Billboards P8 P10 1920Hz For Building Roof
Nationstar Lamp Outdoor Led Digital Billboards P8 P10 1920Hz For Building Roof
Nationstar Lamp Outdoor Led Digital Billboards P8 P10 1920Hz For Building Roof
Specifications
Brand Name :
Bakovision
Model Number :
BOF Series
Certification :
CE ETL FCC CCC
Place of Origin :
China
MOQ :
1 sqm
Price :
$350 - $500 / Sqm
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000 sqm/month
Delivery Time :
15-25 days
Packaging Details :
Wooden case or flight case
Physical Pitch :
8mm 10mm
Pannel Material :
Steel
Servicing :
Front/Rear
Refresh Rate :
＞1920Hz
Contrast Ratio :
2000:1
Brightness :
＞6500nits
Description

P8 P10 Nationstar Lamp LED Billboard LED Video Wall Screen for Advertising and Building Roof

LED Billboard Quick Details:
1, Pixel Pitch: 8mm.10mm
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size: Customized, cabinet weight:65kg/Sqm.
5, Warranty: 2years.
6, Recommended minimum viewing distance: 10m.

LED Billboard Description:
Bako Vision outdoor led digital billboards pixel include 4.81mm, 6.67mm,8mm, 10mm, 16mm, within these pixels, 8mm,10mm are the most hot-selling and highest cost-effective series.

LED Billboard Application:
Bako Vision outdoor led electronic billboards are widely installed on poles, single pole-mounted, dual pole-mounted, or tri-pole mounted, doing advertisement or broadcasting for airport, bus station, railway, government, school, shopping mall, public places, advertising media and so on. Even we can install it in car/truck as mobile screen.

Energy Saving LED Billboard Features:
1, High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
2, Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
3, High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
4, Good heat dissipation with fans and using meanwell power supply, long lifespan.
5, High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.
6,±10° adjustable, creative design to meet your requirement;

Energy Saving LED Billboard Specification:

Physical Pitch 8mm 10mm
Pixel Configuration SMD3535 SMD3535
Pixel Density 15,625 pixels/Sqm 10,000 pixels/Sqm
Module Dimensions(W x H) (mm) 256 x 256 320 x 320
Panel Dimensions (mm) 1280 x 768 x 150 1280 x 960 x 150
NO. of Modules Per Panel (W x H) 5 x 3 4 x 3
Physical Resolution of Module (W x H) 32 x 32 32 x 32
Physical Resolution of Panel (W x H) 160 x 96 128 x 96
Panel Material Steal / Aluminum Steal / Aluminum
Weight (kg/Sqm) 40 45
Processing 16bit 16bit
Colours 281 trillion 281 trillion
Contrast Ratio 2,000 : 1 2,000 : 1
Average Power Consumption 360 W / Sqm 360 W / Sqm
Max Power Consumption 900 W / Sqm 900 W /panel
Average Power After Energy Saving 90 W /Sqm 90 W /Sqm
Max Power After Energy Saving 230 W /Sqm 230 W /Sqm
Brightness >6,500 nits >6,500 nits
Refresh Rate >1,920 Hz >1,920 Hz
Vertical Viewing Angle 160° 160°
Horizontal Viewing Angle 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs
Servicing Rear Front / Rear
IP Rating (Front/Rear) IP 65 IP 65 / IP 54
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
Scan Method 1/10 Scan 1/8 Scan

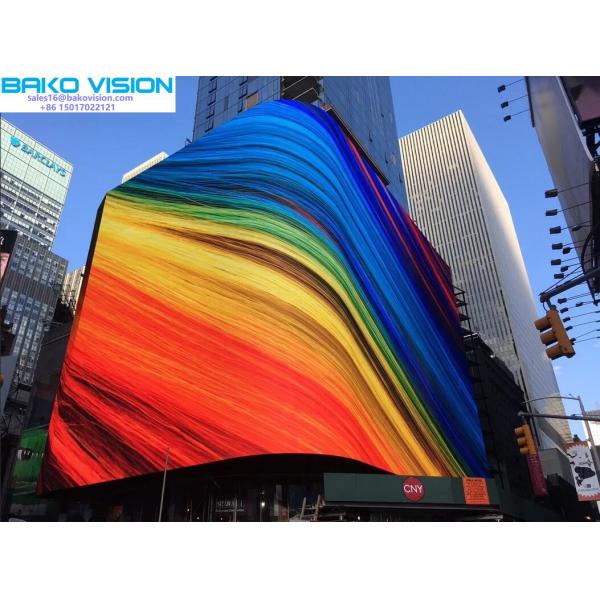

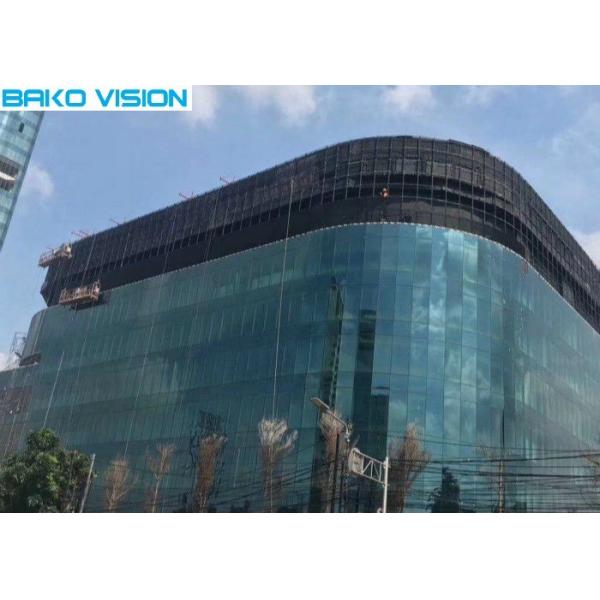

LED Billboard Case (Click below image to link to the video):

Nationstar Lamp Outdoor Led Digital Billboards P8 P10 1920Hz For Building Roof

Nationstar Lamp Outdoor Led Digital Billboards P8 P10 1920Hz For Building RoofNationstar Lamp Outdoor Led Digital Billboards P8 P10 1920Hz For Building RoofNationstar Lamp Outdoor Led Digital Billboards P8 P10 1920Hz For Building RoofNationstar Lamp Outdoor Led Digital Billboards P8 P10 1920Hz For Building RoofNationstar Lamp Outdoor Led Digital Billboards P8 P10 1920Hz For Building RoofNationstar Lamp Outdoor Led Digital Billboards P8 P10 1920Hz For Building RoofNationstar Lamp Outdoor Led Digital Billboards P8 P10 1920Hz For Building RoofNationstar Lamp Outdoor Led Digital Billboards P8 P10 1920Hz For Building RoofNationstar Lamp Outdoor Led Digital Billboards P8 P10 1920Hz For Building Roof
