Specifications
Brand Name :
Bako Vision
Model Number :
BP Poster Series
Certification :
CE, EMC, RoHS, FCC, UL, ETL
Place of Origin :
China
MOQ :
Negotiation
Price :
$850 - 1350
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
8,000 Sets per month
Delivery Time :
1-20 working days
Packaging Details :
Flight case / Plywood case / Carry bag
Physical Pitch :
1.875mm, 2mm, 2.5mm, 3mm
Cabinet Material :
Aluminum / Steel
Cabinet Size :
570*1897* 33mm / 640*1920*35mm
Cabinet Weight :
28kg-32kg/pc
Contrast Ratio :
4000:1
Refresh Rate :
≥3840Hz
Brightness :
>1,000nits
IP Rating :
IP40
Average Power Consumption :
100W / Set
Max Power Consumption :
390W / Set
Description

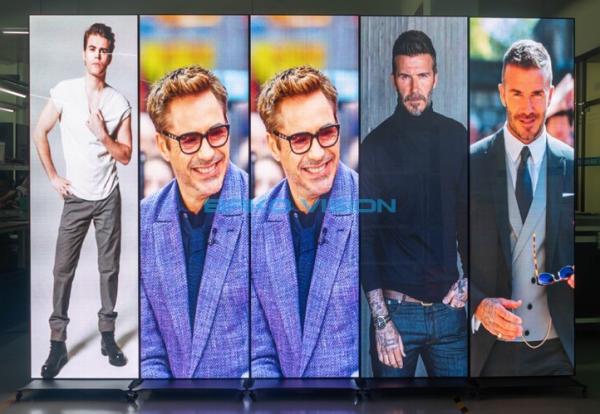

Indoor Poster LED Display P2.5 Mirror Screen 570*1897mm Die-Casting AL Wifi/4G/USB For Shopping Mall Advertising
BP Series (BP.pdf)
Poster LED Display
Specifications
Pixel Pitch(mm): 1.875 / 2 / 2.5 / 3
Cabinet Material: Die-casting aluminum
Refresh Rate(Hz): > 1920 Hz
Key Point: Light weight design, easy to move and carry, plug to play

Digital LED Panel Features

· Plug-and-Play Design.

· Several Installation Way: Wall Mounted and Floor Stand Itself.

· Die-casting Aluminum Cabinet, Better Flatness.

· Light Weight Of Cabinet, Easy to Move.

· Cloud System Operation, One Control All.

Advertising LED Signage Parameters
Pixel Pitch 1.875mm 2.5mm 2.5mm Pro 3.0mm
Pixel Configuration SMD 1515 SMD 2121 SMD 2121 SMD 2121
Pixel Density 279,936pixels/m² 169,344pixels/m² 157,464pixels/m² 110,889pixels/m²
Module Dimention(mm) 160 × 160 320 × 160 280 × 210 192 × 192
Whole Set Dimention(mm) 640 × 1920 × 35 640 × 1920 × 35 571× 1897 × 33 576 × 1920 × 35
NO.of Modules Per Panel 4 × 12 2 × 12 2 × 9 3 × 10
Resolution of Module 84 x 84 64× 64 108× 81 64 × 64
Resolution of Whole Set 336 × 1,010 256 × 768 216 × 729 192× 640
Panel Material Aluminum / Steel
Cabinet Weight 32 kg 32 kg 28 kg 32 kg
Gray Level 16 bit(281 trillion colors)
Average Power Consumption 250W/Set 200W/Set 100 W/ Set 200 W/ Set
Max Power Consumption 750W/Set 600W/Set 390 W / Set 600 W / Set
Driving Method 1/32 Scan 1/32 Scan 1/27 Scan 1/32 Scan
Brightness >1,000 nits >1,000 nits >1,000/3500 nits >1,000 nits
Refresh Rate ≥2,880 Hz ≥2,880 Hz ≥3,840 Hz ≥2,880 Hz
Viewing Angle(V/H) 160°/ 140°
Frame Rate 60 fps
Operating Temp/Humidity -10ºC~60ºC / 10%~60%
Storage Temp/Humidity -30ºC~60ºC / 10%~60%
IP Rating (Front/Rear) IP40
Expected Lifetime 100,000 Hrs

LED Sign Control Ways
Indoor Poster LED Display P2.5 Mirror Screen 570*1897mm Die-Casting AL Wifi/4G/USB For Shopping Mall Advertising
Movable LED Screen Installation Ways
Indoor Poster LED Display P2.5 Mirror Screen 570*1897mm Die-Casting AL Wifi/4G/USB For Shopping Mall Advertising

· Lifting.

· Wall-mounted.

· Bracket/Base Floor-standing.

· Multi-screen Cascade.

· Creative Installation.

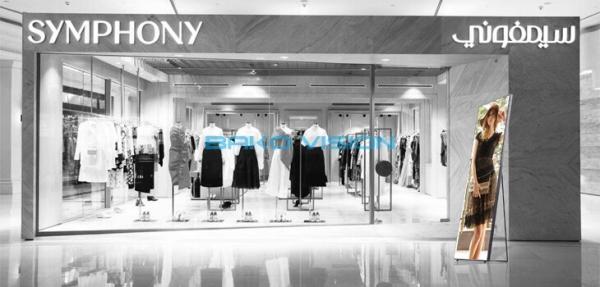

Mirror LED Screen Applications
Indoor Poster LED Display P2.5 Mirror Screen 570*1897mm Die-Casting AL Wifi/4G/USB For Shopping Mall Advertising
Indoor Poster LED Display P2.5 Mirror Screen 570*1897mm Die-Casting AL Wifi/4G/USB For Shopping Mall Advertising
About Bako Vision
Indoor Poster LED Display P2.5 Mirror Screen 570*1897mm Die-Casting AL Wifi/4G/USB For Shopping Mall Advertising

· Chinese Listed Company.

· 10+ Years Experience on LED Display Screen Manufacturing in China.

· Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.

· Overseas Customer in 120+ Countries in The World.

· Full Capable to Provide the Tailor Work of OEM, ODM.

LED Screen Manufacturer Quality Assurance
QUALITY NOT ONLY MEANS EXCELLENCE BUT ALSO RELIABILITY

1. Quality material starts it all

The idea of producing a quality LED screen is far-fetched when class is not keenly bserved and strictly implemented at the very beginning. How well a product turns out aesthetically, structurally and functionally at the end all depends on the quality of its starting raw materials.

The main parts for led display, is made by 1) the LED module 2) the control system and 3) the Cabinet. Therefore, including the LEDs, driving IC, PCB board, the module housing, cables, control card, and the cabinet, etc. Your LED Screen MUST pass the quality inspection strictly.

2. Experienced workers

Craftsmanship is at the heart of your LED screen manufacturer. We call ourselves craftspeople to express the passion we have for creating durable LED screens, and we are continually improving the manufacturing process, pushing your project to succeed as expected.

We believe only the most qualified staff can go that extra mile to meet the your expectations of perfection. It is the reason why we never stops to employ more LED screen experts in the LED display industry.

3. Efficient Plant & Machinery

We understand how important what the end-quality machine could bring brilliant and most stable led screen products for you.

Our investment in the latest technology also ensures that we can offer competitive pricing to make you satisfied. Four automated production lines allow us to achieve a higher output while maintaining the same high-quality product.

4. World class aging test

We are a very high focus on each process of inspection test when your led screen during production, and bring the quality report to you.

We have three parts for the test of your LED screen products to ensure when you receive the products without any problems. 1) 24 hours when we finish the SMT process of the LED module. 2) The first complete assembled LED cabinet light up and aging test; 3) 48 hours for full constructed LED screen aging test by playing the videos, single color carousel.
