BIR-I Series
One Chassis,
Various Module Options

5-BOR-I.pdf

TUV Certificated and Reddot Awarded Cabinet 500mmx500mm or 500mmx1000mm High Definition Indoor Display
Curvilinear, Concave, Convex

Outdoor Rental LED Display Features:
Unsurpassed Color Uniformity
Unique color calibration process
Tight bin selection for LED wavelength Deep black levels, contrast ratio 4000:1

Superior Electrical Features

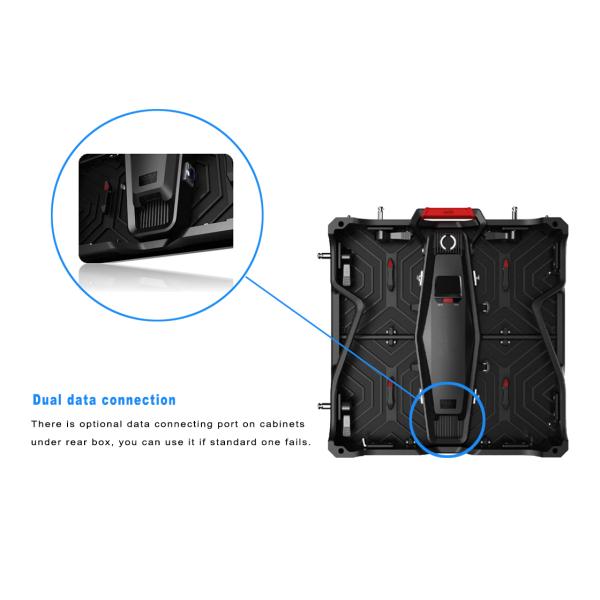

Dual signal backup port

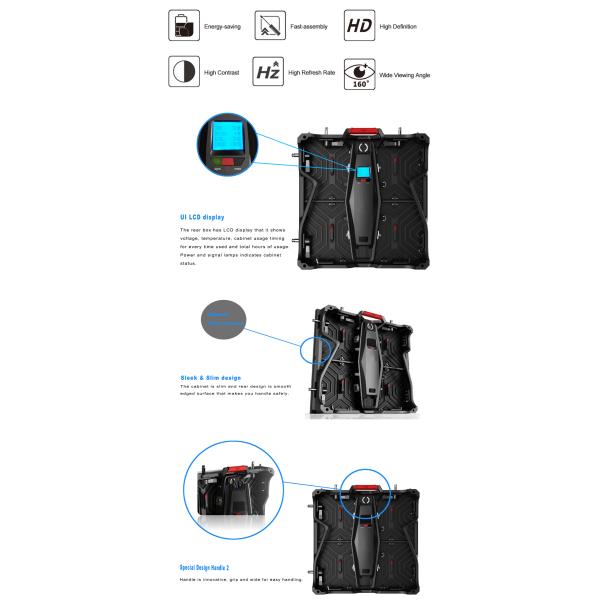

UI LCD monitoring display indicates the status

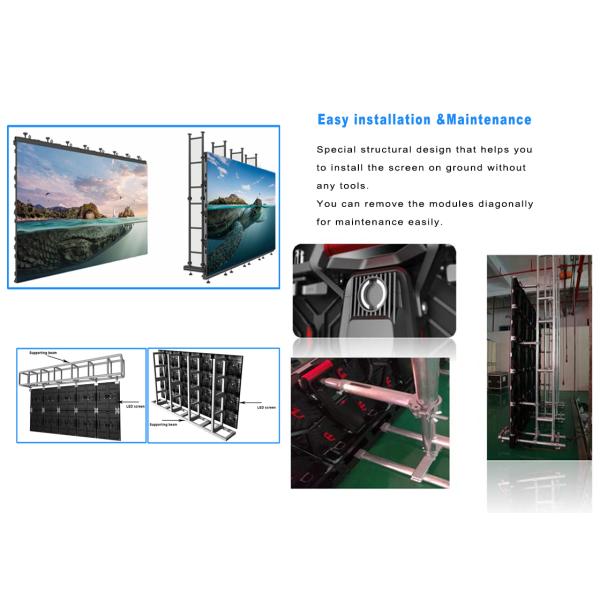

Fast Installation and Easy Maintenance

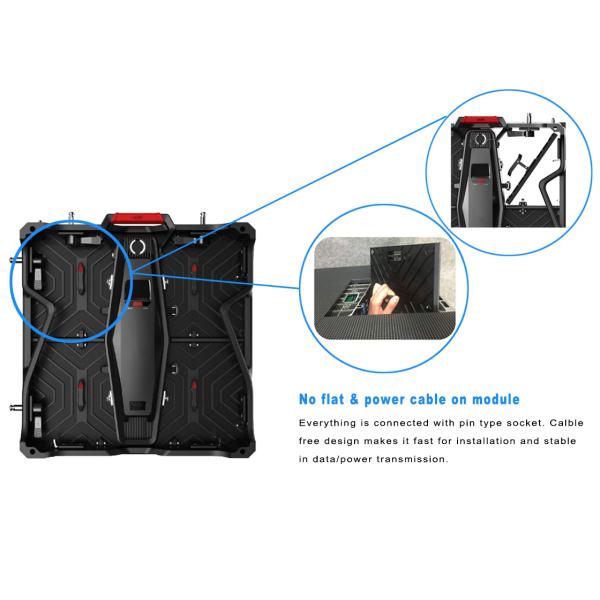

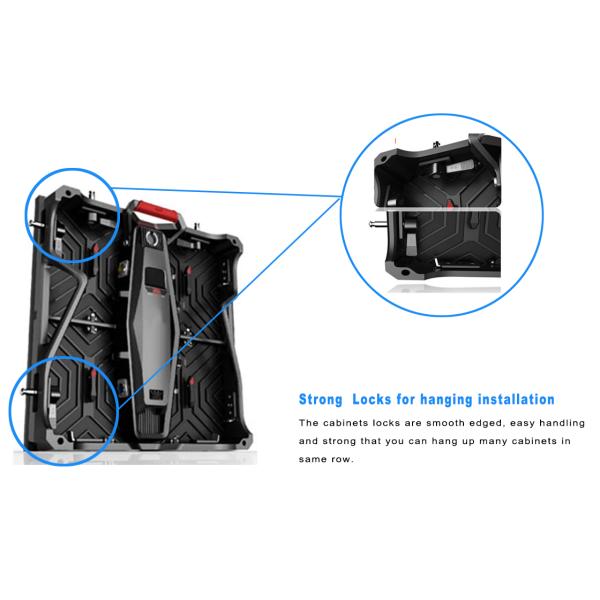

Truss hanging and ground support both available Cable-less between modules
Front and rear access Tools free installation

Slim, Light Weight and Quiet

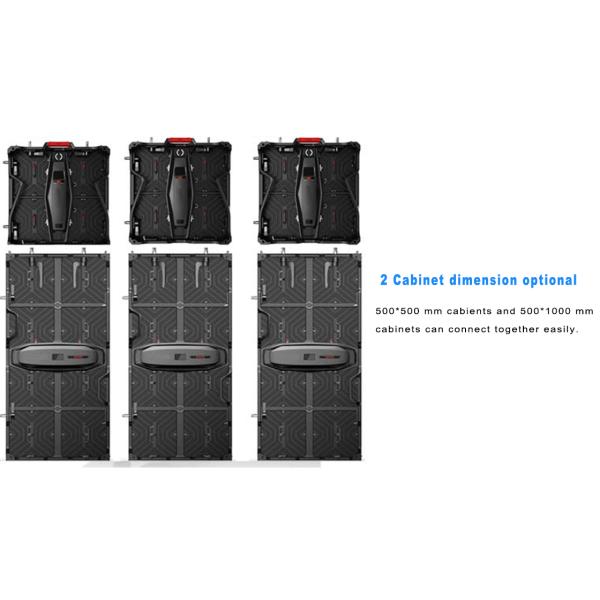

500mmx500mm or 500mmx1000mm cabinet 80mm thickness, 7 KG per cabinet
Fanless design

Outdoor Rental LED Display Specification:

	BOR-I-3	BOR-I-4	BOR-I-5	BOR-I-6
Physical Pitch	3.91mm	4.81mm	5.95mm	6.25mm
Pixel Configuration	SMD1921	SMD2525	SMD2525	SMD2727
Pixel Density	65,536pixels/m²	43,264pixels/m²	28,224pixels/m²	25,600pixels/m²
Module Dimensions(W*H)(mm)	250x250/ 250x500
Panel Dimensions(mm)	500x500x80/ 500x1000x80
No. Of Modules Per Panel(WxH)	2x2
Physical Resolution of Module(WxH)	64x64/64x128	52x52/52x104	42x42/42x84	40x40/40x80
Physical Resolution of Panel(WxH)	128x128/128x256	104x104/104x208	84x84/84x168	80x80/80x160
Panel Material	Die-casting Aluminium
Single Cabinet Weight	9/15 kg/panel
Processing	16 bit
Color Number	281 trillion
Contrast Ratio	4,000:1
Average Power Consumption	70/150 W/panel
Max Power Consumption	225/550 W/panel
Refresh Rate	>1,920Hz
Brightness	>6,000 nits
Viewing Angle(H/V)	160°/140°
Expected Lifetime	≥100,000 Hrs
IP Rating(Front/Rear)	IP65/IP54
Operating Temp/Humidity	-20ºC-50ºC/10%-90%
Storage Temp/Humidity	-40ºC-60ºC/10%-85%
Certification	CCC,TUV-CE,ETL,FCC
