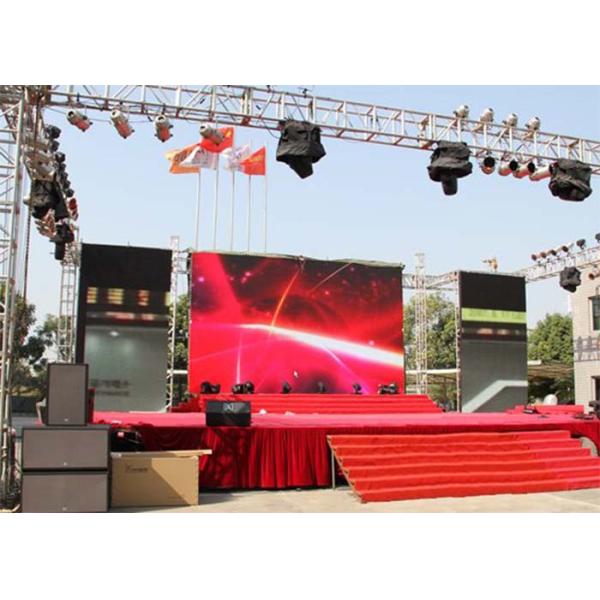

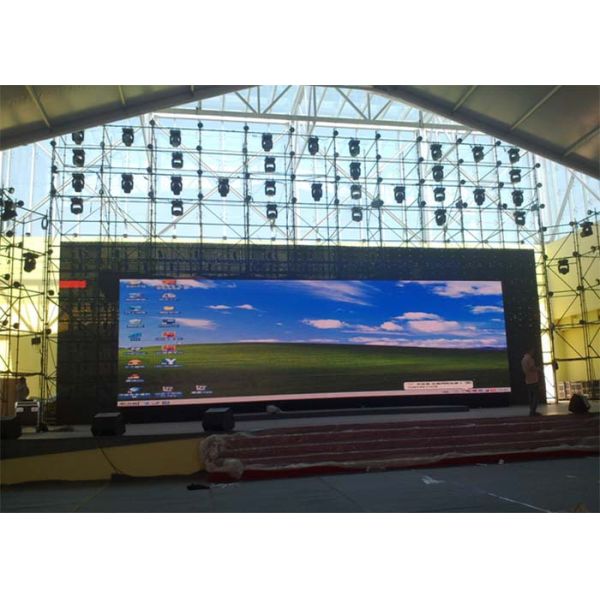

P6.67 Outdoor Stage Rental LED Display Light Weight Cabinet Die Casting Aluminum
P6.67 Outdoor Stage Rental LED Display Light Weight Cabinet Die Casting Aluminum
P6.67 Outdoor Stage Rental LED Display Light Weight Cabinet Die Casting Aluminum
P6.67 Outdoor Stage Rental LED Display Light Weight Cabinet Die Casting Aluminum
P6.67 Outdoor Stage Rental LED Display Light Weight Cabinet Die Casting Aluminum
P6.67 Outdoor Stage Rental LED Display Light Weight Cabinet Die Casting Aluminum
P6.67 Outdoor Stage Rental LED Display Light Weight Cabinet Die Casting Aluminum
P6.67 Outdoor Stage Rental LED Display Light Weight Cabinet Die Casting Aluminum
Specifications
Brand Name :
BAKO VISION
Model Number :
ORB-6.67
Certification :
CE,ETL,RoHS,FCC,3C,UL
Place of Origin :
Shenzhen,China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, Paypal,MoneyGram,MasterCard,Visa,Credit Card
Supply Ability :
10000m²/month
Delivery Time :
20-25 work days
Packaging Details :
Flight Case/Road Case
Pixel Pitch :
6.67mm
Pixel Density :
22478 pixels/m2
LED Type :
SMD3535
Cabinet Dimension :
640mmx640mm
Cabinet Resolution :
96*96pixels
Brightness :
>6500nits
Viewing Angle(H/V) :
140°/140°
Driving Method :
1/6 Scan
Description

P6.67 6.67mm Outdoor Stage Rental LED Display Light Weight Cabinet Die Casting Aluminum

HD rental full color led display:

1. Highcontrast mask design: new antiglare mask design, fine sand processing and black coating on the surface, no glare, and improve the contrast.

2. Automatic SMT: adopting highend automatic SMT machine, advanced wave soldering and reflow soldering processing, to effectively avoid the wrong plug, plug leakage, leakage welding, virtual welding problems.

3. Module suite: improve the planeness of the whole screen, and reduce the seam between the neighboring modules.

4. Multi gray display: adopting 16bit gray processing technology to restore the natural image. And using S-PWM driving technology to add gray grade, meet the 16bits high gray display requirements with low brightness.

5. Point by point correction: the correction technology of brightness and chromaticity to ensure the uniformity of led screen’s brightness and color.

Variety and easiness

1. Various installation: cabinet assembly or magnetic suction installation

2. Easy maintenance: optional front maintenance, back maintenance and single point maintenance according to the installation site.

3. High contrast mask design

Specification

Model ORB-6.67
Pixel Pitch 6.67mm
Pixel Density 22478 pixels/m2
LED Type SMD3535
LED Configuration 1R1G1B
Cabinet Dimension 640mmx640mm
Cabinet Resolution 96*96pixels
Cabinet Weight 13kg
Cabinet Material die casting aluminum
Ingress Protection(front/rear) IP65/IP54
Brightness >6500nits
Viewing Angle(H/V) 140°/140°
Driving Method 1/6 Scan
Frame Refresh ≥ 60Hz
Data Refresh Rate >1500Hz
Gray Scale 16bit
Power Consumption(avg.) 300w/m2
Input Voltage AC 110/220±10%, 50~60Hz
Temperature(operating/storage) -20~50°C / -40~60°C
Humidity(operating/storage) 10%~90%RH / 10%~85%RH
MTBF ≥1000hrs
Life Span ≥100000hrs
Pixel Failure <0.0003

Excellent After-sale Service

1.Warranty will be valid for 24 months against manufacturing defect.
2.The warranty shall not apply to the following circumstances:
a) Damage caused by undue ware& tear, misuse, improper installation or operation, neglect, accidents.
b) Damage caused by natural disasters, flood fire, lightning or pollution.
c) If item was opened, any parts removed or repaired by any unauthorized person.

P6.67 Outdoor Stage Rental LED Display Light Weight Cabinet Die Casting AluminumP6.67 Outdoor Stage Rental LED Display Light Weight Cabinet Die Casting Aluminum
