50x50cm Panel P4.81 Outdoor Stage Rental Display with Meanwell Power supply
50x50cm Panel P4.81 Outdoor Stage Rental Display with Meanwell Power supply
50x50cm Panel P4.81 Outdoor Stage Rental Display with Meanwell Power supply
50x50cm Panel P4.81 Outdoor Stage Rental Display with Meanwell Power supply
50x50cm Panel P4.81 Outdoor Stage Rental Display with Meanwell Power supply
50x50cm Panel P4.81 Outdoor Stage Rental Display with Meanwell Power supply
50x50cm Panel P4.81 Outdoor Stage Rental Display with Meanwell Power supply
50x50cm Panel P4.81 Outdoor Stage Rental Display with Meanwell Power supply
Specifications
Brand Name :
BAKO VISION
Model Number :
ORB-8
Certification :
CE,ETL,RoHS,FCC,3C,UL
Place of Origin :
Shenzhen,China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, Paypal,MoneyGram,MasterCard,Visa,Credit Card
Supply Ability :
100,000m²/month
Delivery Time :
20-25 work days
Packaging Details :
Flight Case/Road Case
Pixel Pitch :
4.81
Pixel Density :
43264 pixels/m2
LED Type :
SMD2525
Cabinet Dimension :
500x500mm
Cabinet Resolution :
128*128pixels
Brightness :
5,000nits
Viewing Angle(H/V) :
140°/140°
Power Consumption(avg.) :
600w/m2
Description

50x50cm Panel P4.81 Outdoor Stage Rental Display with Meanwell Power supply

P4.81 Outdoor Stage Rental Display Features:

Outdoor LED display is designated for outdoor events for advertisement, notice or performance purposes, which require quality of high brightness and being waterproof.
Outdoor LED display is widely used in various outdoor events, including airport information display, stadium advertisement and score board, concerts and performance stages, highway billboards, shopping malls, residential quarter boards etc.
We provide not only outdoor display screens and modules of different pixels, but also installation solutions based on our years of experience and participation of all sorts of programs for outdoor LED display.
FAQ:
1. Can I have a sample order for led cabinet?
Can I have a sample order for led cabinet

2. Why use an LED Screen instead of an LCD Screen?
LED screens are a completely different technology to LCD screens, designed for a different purpose. LCD screens are designed primarily for indoor close viewing on a small scale. LED screens are designed for large scale, high impact projects that can be used outdoors in bright sunlight.

3. Maximal Power Consumption for LED displays?
There are two types of driving methods for LED displays, which is the constant static driving method and the scan driving method. First let's explain how to calculate the maximal power consumption and average power consumption of a pitch 16mm LED display using constant static current driving.

Application case:

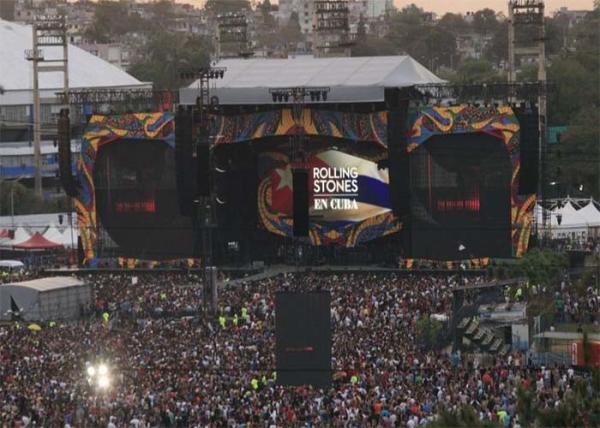

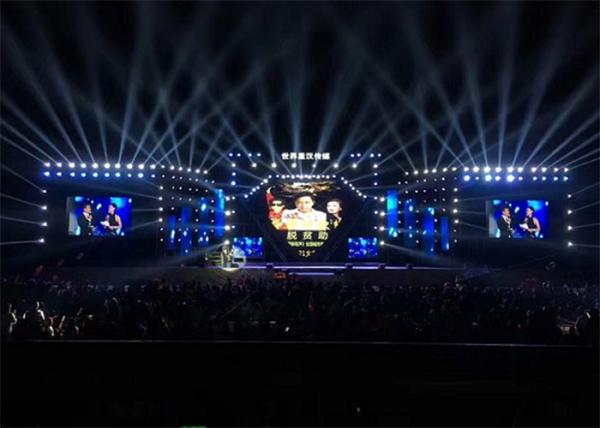

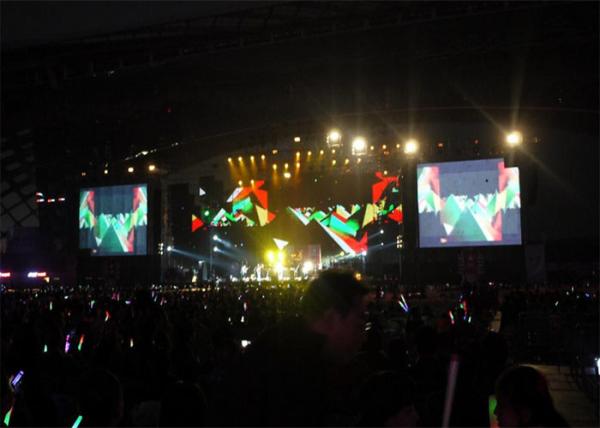

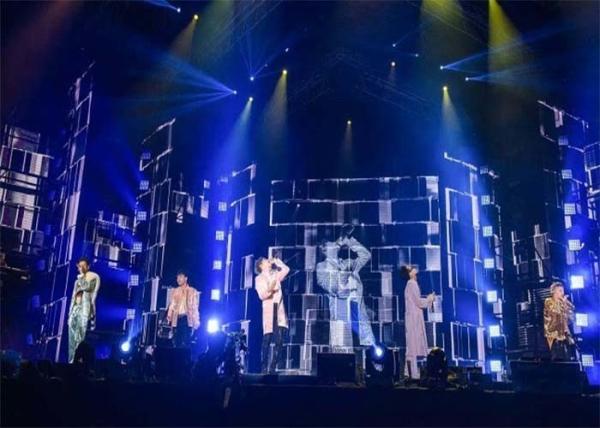

Widely used for lighting shows, concerts, wedding, events, shopping malls, entertainment and sport venues, schools, government, trade fair, exhibition, press conference, meeting rooms, cinemas, airports, hotels, station, stadium, and a variety of public places

P4.81 Outdoor Stage Rental Display Specification

　 BOR-I-4
Physical Pitch 4.81 mm
Pixel Configuration SMD 2525
Pixel Density 43264 pixels/m²
Module Dimensions (W × H) (mm) 250 × 250 / 250×500
Panel Dimensions (mm) 500 × 500 × 80
500 × 1000 × 80
NO .of Modules Per Panel (W × H) 2 × 2
Physical Resolution of Module (W × H) 52×52/52×104
Physical Resolution of Panel (W × H) 104×104/104×208
Panel Material Die-Casting Aluminum
Single Cabinet Weight 9/ 15 kg/panel
Gray Scale 14-16 bit
Colors 281 trillion
Contrast Ratio 4,000: 1
Average Power Consumption 75 /150 W/m²
Max Power Consumption 225 /550 W/m²l
Operating Temp/Humidity -20ºC - 60ºC / 10% - 60%
Storage Temp/Humidity -30ºC - 60ºC / 10% - 60%
Refresh Rate >1,920 Hz
Brightness >5000 nits
